Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

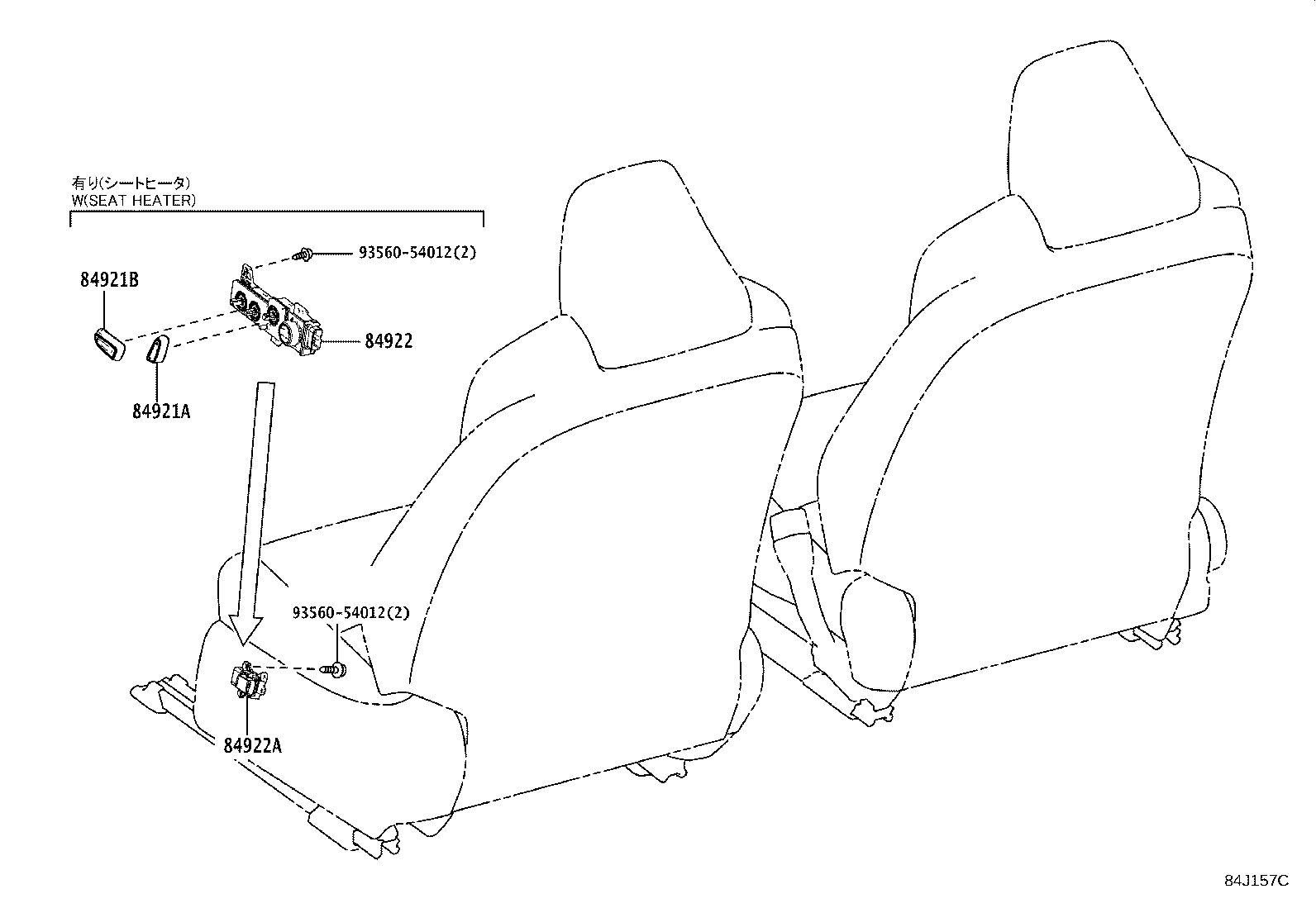

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84921A — Knob, Power Seat Switch (FOR RECLINING) | ||||
| 84921-33180-C0 note |
Knob, Power Seat Switch (FOR RECLINING)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84921-33180-C0 note |
Knob, Power Seat Switch (FOR RECLINING)
2018-06 → —
|
MZEA12 6F | — | |
| 84921-33180-C0 note |
Knob, Power Seat Switch (FOR RECLINING)
2018-06 → —
|
MZEA12 6F | — | |
| 84921-33180-C0 note |
Knob, Power Seat Switch (FOR RECLINING)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84921-33180-C0 note |
Knob, Power Seat Switch (FOR RECLINING)
2022-09 → —
|
MZEA12 | — | |
| 84921-33180-C0 note |
Knob, Power Seat Switch (FOR RECLINING)
2022-09 → —
|
MZEA12 | — | |
| 84921B — Knob, Power Seat Switch (FOR SLIDE & VERTICAL) | ||||
| 84921-33170-C0 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84921-33170-C0 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84921-33170-C0 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2018-06 → —
|
MZEA12 6F | — | |
| 84921-33170-C0 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2018-06 → —
|
MZEA12 6F | — | |
| 84921-33170-C0 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-09 → —
|
MZEA12 | — | |
| 84921-33170-C0 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-09 → —
|
MZEA12 | — | |
| 84922 — Switch, Front Power Seat | ||||
| 84922-33210-C0 note |
Switch, Front Power Seat
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84922-33210-C0 note |
Switch, Front Power Seat
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84922-33210-C0 note |
Switch, Front Power Seat
2018-06 → —
|
MZEA12 6F | — | |
| 84922-33210-C0 note |
Switch, Front Power Seat
2018-06 → —
|
MZEA12 6F | — | |
| 84922-33210-C0 note |
Switch, Front Power Seat
2022-09 → —
|
MZEA12 | — | |
| 84922-33210-C0 note |
Switch, Front Power Seat
2022-09 → —
|
MZEA12 | — | |
| 84922A — Switch, Front Power Seat(FOR LUMBAR) | ||||
| 84920-12010-C0 note |
Switch, Front Power Seat(FOR LUMBAR)
2018-06 → 2021-07
ended
|
MZEA12 | — | |
| 84920-47030-C0 note |
Switch, Front Power Seat(FOR LUMBAR)
2021-07 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84920-47030-C0 note |
Switch, Front Power Seat(FOR LUMBAR)
2021-07 → —
|
MZEA12 6F | — | |
| 84920-47030-C0 note |
Switch, Front Power Seat(FOR LUMBAR)
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
