Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 84P733 82660E — BLOCK ASSY, RELAY (3 parts) 82660K — BLOCK ASSY, RELAY (1 parts) 82661A — COVER, RELAY BLOCK, NO.2 (3 parts) 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue 82600E — ENGINE ROOM FUSE (21 parts) 89561F — RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 (1 parts) 85948 — RELAY, WINDSHIELD WIPER (1 parts) 85960D — RELAY, HEADLAMP, RH (1 parts) 85960E — RELAY, HEADLAMP, LH (1 parts) 28300 — RELAY ASSY, STARTER (3 parts) 28371B — RELAY, IGR (1 parts) 85912K — RELAY, VVT (3 parts) 89561H — RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 (3 parts) 89561G — RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 (3 parts) 28371L — RELAY, IGP (1 parts) 86530 — RELAY ASSY, HORN (3 parts) 85927 — RELAY, COOLING FAN (1 parts) 85910E — RELAY, INJECTOR (1 parts) 82660F — BLOCK ASSY, RELAY (4 parts) 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (3 parts) 82666H — HOLDER, CONNECTOR, NO.2 (4 parts) 82663C — COVER, RELAY BLOCK LOWER, NO.4 (4 parts) 82661 — COVER, RELAY BLOCK, NO.1 (3 parts) 82741 — BLOCK, ENGINE ROOM RELAY (1 parts) 82660Q — BLOCK ASSY, RELAY (1 parts) 82660C — BLOCK ASSY, RELAY (3 parts) 82660B — BLOCK ASSY, RELAY (3 parts) 82663 — COVER, RELAY BLOCK, LOWER (3 parts) 85910V — RELAY, SEAT HEATER (1 parts) 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (5 parts) 82616 — PULLER, FUSE (3 parts) 82210P — ENGINE ROOM FUSIBLE LINK (24 parts)

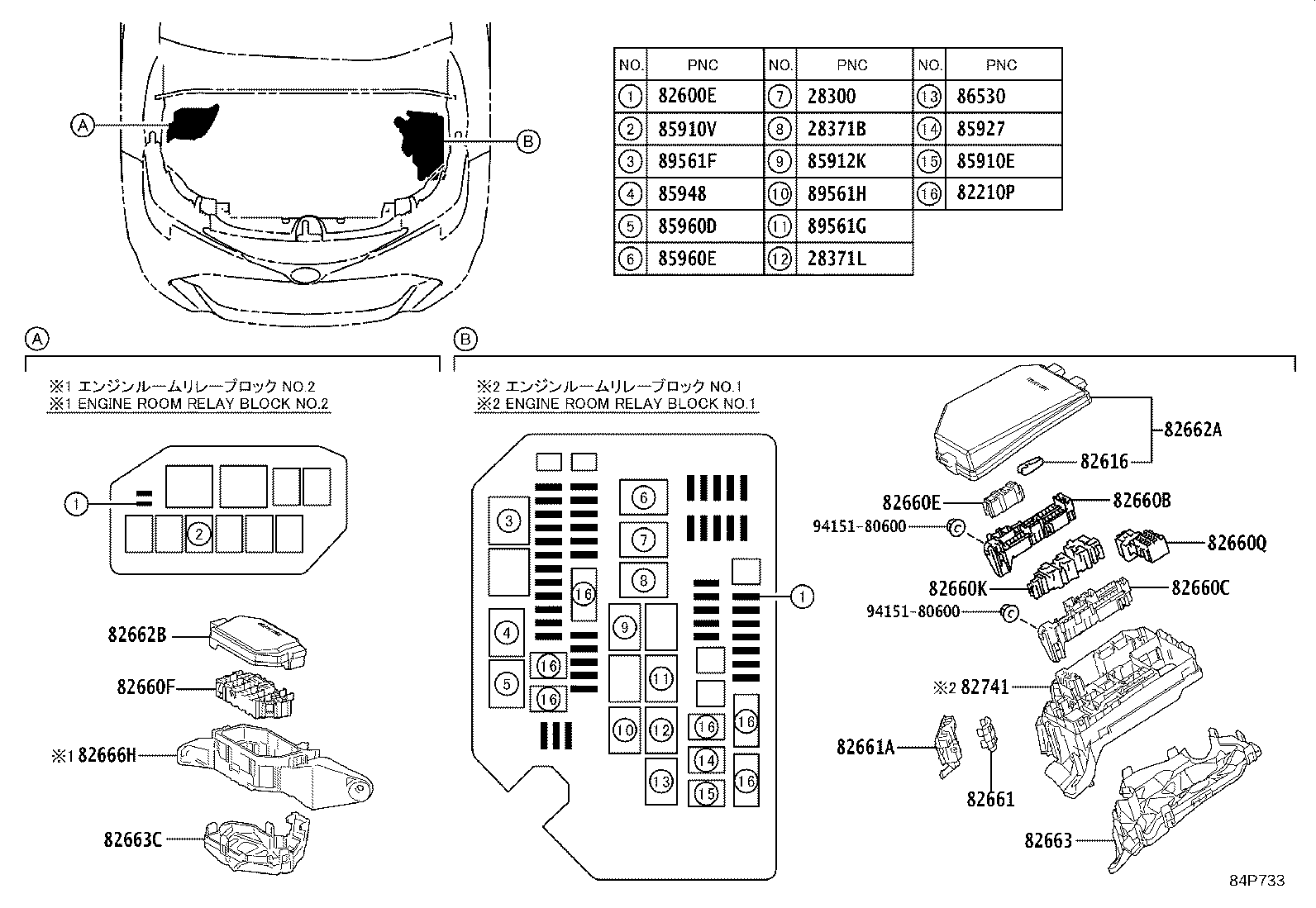

84P733 · 31 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
28300 — Relay Assy, Starter
28300-21020 Relay Assy, Starter
2018-06 → —
M20AFKS MZEA12 6F —
28300-21020 Relay Assy, Starter
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
28300-21020 Relay Assy, Starter
2022-09 → —
M20AFKS MZEA12 —
28371B — Relay, Igr
90987-02027 Relay, Igr
2022-09 → —
M20AFKS MZEA12 —
28371L — Relay, Igp
90987-02027 Relay, Igp
2022-09 → —
M20AFKS MZEA12 —
82210P — Engine Room Fusible Link
90982-08294 note Engine Room Fusible Link
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-08294 note Engine Room Fusible Link
2018-06 → —
MZEA12 6F —
90982-08295 note Engine Room Fusible Link
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-08295 note Engine Room Fusible Link
2018-06 → —
MZEA12 6F —
90982-08296 note Engine Room Fusible Link
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-08296 note Engine Room Fusible Link
2018-06 → —
MZEA12 6F —
90982-08299 note Engine Room Fusible Link
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-08299 note Engine Room Fusible Link
2018-06 → —
MZEA12 6F —
90982-08300 note Engine Room Fusible Link
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-08300 note Engine Room Fusible Link
2018-06 → —
MZEA12 6F —
90982-08305 note Engine Room Fusible Link
2018-06 → —
MZEA12 6F —
90982-08305 note Engine Room Fusible Link
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-08294 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08295 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08296 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08299 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08300 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08301 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08302 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08303 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08304 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08305 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08307 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
90982-08308 note Engine Room Fusible Link
2022-09 → —
MZEA12 —
82600E — Engine Room Fuse
90982-09019 note Engine Room Fuse
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-09019 note Engine Room Fuse
2018-06 → —
MZEA12 6F —
90982-09020 note Engine Room Fuse
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-09020 note Engine Room Fuse
2018-06 → —
MZEA12 6F —
90982-09021 note Engine Room Fuse
2018-06 → —
MZEA12 6F —
90982-09021 note Engine Room Fuse
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-09022 note Engine Room Fuse
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-09022 note Engine Room Fuse
2018-06 → —
MZEA12 6F —
90982-09023 note Engine Room Fuse
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-09023 note Engine Room Fuse
2018-06 → —
MZEA12 6F —
90982-09024 note Engine Room Fuse
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-09024 note Engine Room Fuse
2018-06 → —
MZEA12 6F —
90982-09025 note Engine Room Fuse
2018-06 → 2022-09 ended
MZEA12 CVT —
90982-09025 note Engine Room Fuse
2018-06 → —
MZEA12 6F —
90982-09019 note Engine Room Fuse
2022-09 → —
MZEA12 —
90982-09020 note Engine Room Fuse
2022-09 → —
MZEA12 —
90982-09021 note Engine Room Fuse
2022-09 → —
MZEA12 —
90982-09022 note Engine Room Fuse
2022-09 → —
MZEA12 —
90982-09023 note Engine Room Fuse
2022-09 → —
MZEA12 —
90982-09024 note Engine Room Fuse
2022-09 → —
MZEA12 —
90982-09025 note Engine Room Fuse
2022-09 → —
MZEA12 —
82616 — Puller, Fuse
82616-58010 Puller, Fuse
2018-06 → 2022-09 ended
MZEA12 CVT —
82616-58010 Puller, Fuse
2018-06 → —
MZEA12 6F —
82616-58010 Puller, Fuse
2022-09 → —
MZEA12 —
82660B — Block Assy, Relay
82660-12360 Block Assy, Relay
2018-06 → 2022-09 ended
MZEA12 CVT —
82660-12360 Block Assy, Relay
2018-06 → —
MZEA12 6F —
82660-16530 Block Assy, Relay
2022-09 → —
MZEA12 —
82660C — Block Assy, Relay
82660-12390 Block Assy, Relay
2018-06 → 2022-09 ended
MZEA12 CVT —
82660-12390 Block Assy, Relay
2018-06 → —
MZEA12 6F —
82660-12390 Block Assy, Relay
2022-09 → —
MZEA12 —
82660E — Block Assy, Relay
82660-12470 Block Assy, Relay
2018-06 → —
MZEA12 6F —
82660-12470 Block Assy, Relay
2018-06 → 2022-09 ended
MZEA12 CVT —
82660-12470 Block Assy, Relay
2022-09 → —
MZEA12 —
82660F — Block Assy, Relay
82660-12410 Block Assy, Relay
2018-06 → 2022-09 ended
MZEA12 CVT —
82660-12410 Block Assy, Relay
2018-06 → —
MZEA12 6F —
82660-12410 note Block Assy, Relay
2022-09 → 2023-08 ended
MZEA12 —
82660-12410 note Block Assy, Relay
2022-09 → —
MZEA12 —
82660K — Block Assy, Relay
82660-0A060 Block Assy, Relay
2022-09 → —
MZEA12 —
82660Q — Block Assy, Relay
82660-0A050 Block Assy, Relay
2022-09 → —
MZEA12 —
82661 — Cover, Relay Block, NO.1
82661-12350 Cover, Relay Block, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
82661-12350 Cover, Relay Block, NO.1
2018-06 → —
MZEA12 6F —
82661-12350 Cover, Relay Block, NO.1
2022-09 → —
MZEA12 —
82661A — Cover, Relay Block, NO.2
82661-12340 Cover, Relay Block, NO.2
2018-06 → —
MZEA12 6F —
82661-12340 Cover, Relay Block, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
82661-12340 Cover, Relay Block, NO.2
2022-09 → —
MZEA12 —
82662A — Cover, Relay Block, Upper, NO.1
82662-12E20 note Cover, Relay Block, Upper, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
82662-12E20 note Cover, Relay Block, Upper, NO.1
2018-06 → —
MZEA12 6F —
82662-12E70 Cover, Relay Block, Upper, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
82662-12E70 Cover, Relay Block, Upper, NO.1
2018-06 → —
MZEA12 6F —
82662-12E90 Cover, Relay Block, Upper, NO.1
2022-09 → —
MZEA12 —
82662B — Cover, Relay Block, Upper, NO.2
82662-12E40 Cover, Relay Block, Upper, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
82662-12E40 Cover, Relay Block, Upper, NO.2
2018-06 → —
MZEA12 6F —
82662-12F00 note Cover, Relay Block, Upper, NO.2
2022-09 → —
MZEA12 —
82663 — Cover, Relay Block, Lower
82663-12160 Cover, Relay Block, Lower
2018-06 → 2022-09 ended
MZEA12 CVT —
82663-12160 Cover, Relay Block, Lower
2018-06 → —
MZEA12 6F —
82663-12160 Cover, Relay Block, Lower
2022-09 → —
MZEA12 —
82663C — Cover, Relay Block Lower, NO.4
82663-47090 Cover, Relay Block Lower, NO.4
2018-06 → 2022-09 ended
MZEA12 CVT —
82663-47090 Cover, Relay Block Lower, NO.4
2018-06 → —
MZEA12 6F —
82663-47090 note Cover, Relay Block Lower, NO.4
2022-09 → 2023-08 ended
MZEA12 —
82663-47090 note Cover, Relay Block Lower, NO.4
2022-09 → —
MZEA12 —
82666H — Holder, Connector, NO.2
82666-47620 Holder, Connector, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
82666-47620 Holder, Connector, NO.2
2018-06 → —
MZEA12 6F —
82666-47620 note Holder, Connector, NO.2
2022-09 → 2023-08 ended
MZEA12 —
82666-47620 note Holder, Connector, NO.2
2022-09 → —
MZEA12 —
82741 — Block, Engine Room Relay
82741-0A020 Block, Engine Room Relay
2022-09 → —
MZEA12 —
85910E — Relay, Injector
90987-02027 Relay, Injector
2022-09 → —
MZEA12 —
85910V — Relay, Seat Heater
90987-02027 note Relay, Seat Heater
2022-09 → —
MZEA12 —
85912K — Relay, Vvt
90987-02027 Relay, Vvt
2018-06 → 2022-09 ended
MZEA12 CVT —
90987-02027 Relay, Vvt
2018-06 → —
MZEA12 6F —
90987-02027 Relay, Vvt
2022-09 → —
MZEA12 —
85927 — Relay, Cooling Fan
90987-02027 Relay, Cooling Fan
2022-09 → —
MZEA12 —
85948 — Relay, Windshield Wiper
90987-02027 Relay, Windshield Wiper
2022-09 → —
MZEA12 —
85960D — Relay, Headlamp, RH
90987-02027 Relay, Headlamp, RH
2022-09 → —
MZEA12 —
85960E — Relay, Headlamp, LH
90987-02027 Relay, Headlamp, LH
2022-09 → —
MZEA12 —
86530 — Relay Assy, Horn
90987-02027 Relay Assy, Horn
2018-06 → 2022-09 ended
MZEA12 CVT —
90987-02027 Relay Assy, Horn
2018-06 → —
MZEA12 6F —
90987-02027 Relay Assy, Horn
2022-09 → —
MZEA12 —
89561F — Relay, Electronic Fuel Injection Main, NO.1
90987-02027 Relay, Electronic Fuel Injection Main, NO.1
2022-09 → —
MZEA12 —
89561G — Relay, Electronic Fuel Injection Main, NO.2
90987-02027 Relay, Electronic Fuel Injection Main, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
90987-02027 Relay, Electronic Fuel Injection Main, NO.2
2018-06 → —
MZEA12 6F —
90987-02027 Relay, Electronic Fuel Injection Main, NO.2
2022-09 → —
MZEA12 —
89561H — Relay, Electronic Fuel Injection Main, NO.3
90987-02027 Relay, Electronic Fuel Injection Main, NO.3
2018-06 → 2022-09 ended
MZEA12 CVT —
90987-02027 Relay, Electronic Fuel Injection Main, NO.3
2018-06 → —
MZEA12 6F —
90987-02033 Relay, Electronic Fuel Injection Main, NO.3
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
