Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

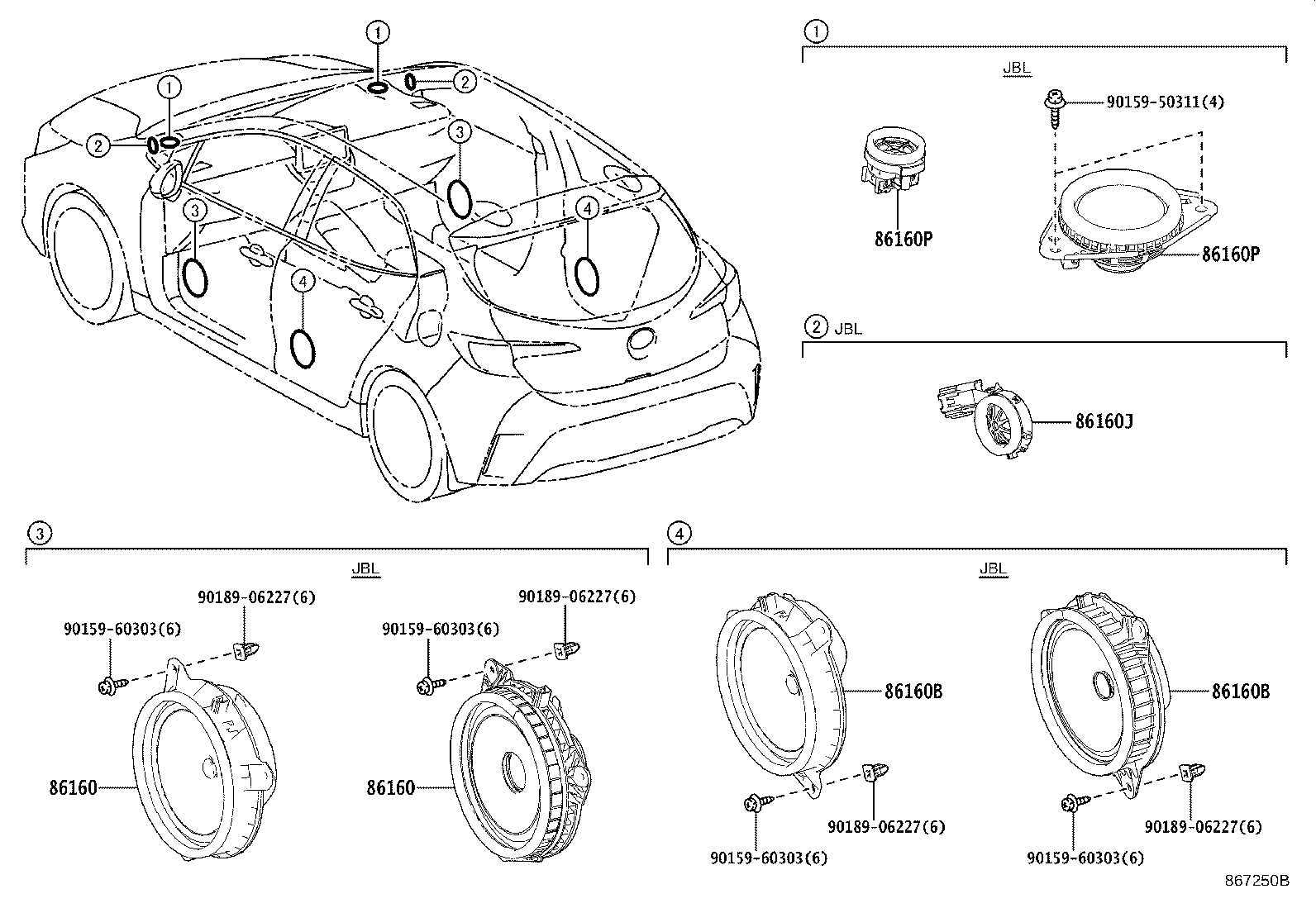

Exploded illustration 867250B 86160P — SPEAKER ASSY, FRONT NO.2 (15 parts) 86160P — SPEAKER ASSY, FRONT NO.2 (15 parts) 86160 — SPEAKER ASSY, FRONT NO.1 (15 parts) 86160 — SPEAKER ASSY, FRONT NO.1 (15 parts) 9015960303 — not listed in this catalogue 9018906227 — not listed in this catalogue 9018906227 — not listed in this catalogue 9015960303 — not listed in this catalogue 9015960303 — not listed in this catalogue 9018906227 — not listed in this catalogue 9015960303 — not listed in this catalogue 9018906227 — not listed in this catalogue 9015950311 — not listed in this catalogue 86160B — SPEAKER ASSY, REAR (10 parts) 86160B — SPEAKER ASSY, REAR (10 parts) 86160J — SPEAKER ASSY, FRONT NO.3 (24 parts)
867250B · 7 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
86160 — Speaker Assy, Front NO.1
86160-0WT80 note Speaker Assy, Front NO.1
2018-06 → 2019-09 ended
MZEA12 —
86160-12A00 note Speaker Assy, Front NO.1
2021-07 → 2022-09 ended
MZEA12 CVT CND —
86160-12A00 note Speaker Assy, Front NO.1
2021-07 → —
MZEA12 6F CND —
86160-12A00 note Speaker Assy, Front NO.1
2021-07 → —
MZEA12 6F USA —
86160-12A00 note Speaker Assy, Front NO.1
2021-07 → —
MZEA12 6F USA —
86160-12A00 note Speaker Assy, Front NO.1
2021-07 → 2022-09 ended
MZEA12 CVT USA —
86160-12A00 note Speaker Assy, Front NO.1
2020-06 → 2022-09 ended
MZEA12 CVT USA —
86160-12A00 note Speaker Assy, Front NO.1
2020-06 → 2022-09 ended
MZEA12 CVT CND —
86160-12A00 note Speaker Assy, Front NO.1
2020-06 → 2021-07 ended
MZEA12 6F USA —
86160-12A00 note Speaker Assy, Front NO.1
2020-06 → 2021-07 ended
MZEA12 6F CND —
86160-12A00 note Speaker Assy, Front NO.1
2019-10 → 2020-06 ended
MZEA12 —
86160-1A210 Speaker Assy, Front NO.1
2018-06 → —
MZEA12 6F —
86160-1A210 Speaker Assy, Front NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
86160-12A00 note Speaker Assy, Front NO.1
2022-09 → —
MZEA12 —
86160-1A210 Speaker Assy, Front NO.1
2022-09 → —
MZEA12 —
86160B — Speaker Assy, Rear
86160-0WY50 note Speaker Assy, Rear
2018-06 → 2019-06 ended
MZEA12 —
86160-1A210 Speaker Assy, Rear
2018-06 → —
MZEA12 6F —
86160-1A210 Speaker Assy, Rear
2018-06 → 2022-09 ended
MZEA12 CVT —
86160-42170 note Speaker Assy, Rear
2019-07 → 2022-09 ended
MZEA12 CVT —
86160-42170 note Speaker Assy, Rear
2021-07 → 2022-09 ended
MZEA12 CVT —
86160-42170 note Speaker Assy, Rear
2019-07 → —
MZEA12 6F USA —
86160-42170 note Speaker Assy, Rear
2021-07 → —
MZEA12 6F —
86160-42170 note Speaker Assy, Rear
2019-07 → 2021-07 ended
MZEA12 6F CND —
86160-1A210 Speaker Assy, Rear
2022-09 → —
MZEA12 —
86160-42170 note Speaker Assy, Rear
2022-09 → —
MZEA12 —
86160J — Speaker Assy, Front NO.3
86150-02090 note Speaker Assy, Front NO.3
2018-06 → 2019-09 ended
MZEA12 —
86150-02150 note Speaker Assy, Front NO.3
2018-06 → 2019-09 ended
MZEA12 —
86150-12240 note Speaker Assy, Front NO.3
2021-07 → —
MZEA12 6F USA —
86150-12240 note Speaker Assy, Front NO.3
2021-07 → —
MZEA12 6F USA —
86150-12240 note Speaker Assy, Front NO.3
2021-07 → 2022-09 ended
MZEA12 CVT CND —
86150-12240 note Speaker Assy, Front NO.3
2021-07 → 2022-09 ended
MZEA12 CVT USA —
86150-12240 note Speaker Assy, Front NO.3
2021-07 → —
MZEA12 6F CND —
86150-12240 note Speaker Assy, Front NO.3
2020-06 → 2022-09 ended
MZEA12 CVT USA —
86150-12240 note Speaker Assy, Front NO.3
2020-06 → 2022-09 ended
MZEA12 CVT CND —
86150-12240 note Speaker Assy, Front NO.3
2020-06 → 2021-07 ended
MZEA12 6F USA —
86150-12240 note Speaker Assy, Front NO.3
2020-06 → 2021-07 ended
MZEA12 6F CND —
86150-12240 note Speaker Assy, Front NO.3
2019-10 → 2020-06 ended
MZEA12 —
86150-12250 note Speaker Assy, Front NO.3
2021-07 → —
MZEA12 6F USA —
86150-12250 note Speaker Assy, Front NO.3
2021-07 → —
MZEA12 6F USA —
86150-12250 note Speaker Assy, Front NO.3
2021-07 → —
MZEA12 6F CND —
86150-12250 note Speaker Assy, Front NO.3
2020-06 → 2021-07 ended
MZEA12 6F USA —
86150-12250 note Speaker Assy, Front NO.3
2021-07 → 2022-09 ended
MZEA12 CVT USA —
86150-12250 note Speaker Assy, Front NO.3
2020-06 → 2022-09 ended
MZEA12 CVT USA —
86150-12250 note Speaker Assy, Front NO.3
2020-06 → 2022-09 ended
MZEA12 CVT CND —
86150-12250 note Speaker Assy, Front NO.3
2020-06 → 2021-07 ended
MZEA12 6F CND —
86150-12250 note Speaker Assy, Front NO.3
2019-10 → 2020-06 ended
MZEA12 —
86150-12250 note Speaker Assy, Front NO.3
2021-07 → 2022-09 ended
MZEA12 CVT CND —
86150-12240 note Speaker Assy, Front NO.3
2022-09 → —
MZEA12 —
86150-12250 note Speaker Assy, Front NO.3
2022-09 → —
MZEA12 —
86160P — Speaker Assy, Front NO.2
86150-0W670 note Speaker Assy, Front NO.2
2018-06 → 2019-09 ended
MZEA12 —
86150-12230 note Speaker Assy, Front NO.2
2020-06 → 2021-07 ended
MZEA12 6F USA —
86150-12230 note Speaker Assy, Front NO.2
2021-07 → —
MZEA12 6F CND —
86150-12230 note Speaker Assy, Front NO.2
2021-07 → —
MZEA12 6F USA —
86150-12230 note Speaker Assy, Front NO.2
2021-07 → —
MZEA12 6F USA —
86150-12230 note Speaker Assy, Front NO.2
2021-07 → 2022-09 ended
MZEA12 CVT CND —
86150-12230 note Speaker Assy, Front NO.2
2021-07 → 2022-09 ended
MZEA12 CVT USA —
86150-12230 note Speaker Assy, Front NO.2
2020-06 → 2022-09 ended
MZEA12 CVT USA —
86150-12230 note Speaker Assy, Front NO.2
2020-06 → 2022-09 ended
MZEA12 CVT CND —
86150-12230 note Speaker Assy, Front NO.2
2020-06 → 2021-07 ended
MZEA12 6F CND —
86150-12230 note Speaker Assy, Front NO.2
2019-10 → 2020-06 ended
MZEA12 —
86160-52340 Speaker Assy, Front NO.2
2018-06 → —
MZEA12 6F —
86160-52340 Speaker Assy, Front NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
86150-12230 note Speaker Assy, Front NO.2
2022-09 → —
MZEA12 —
86160-52340 Speaker Assy, Front NO.2
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
