Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

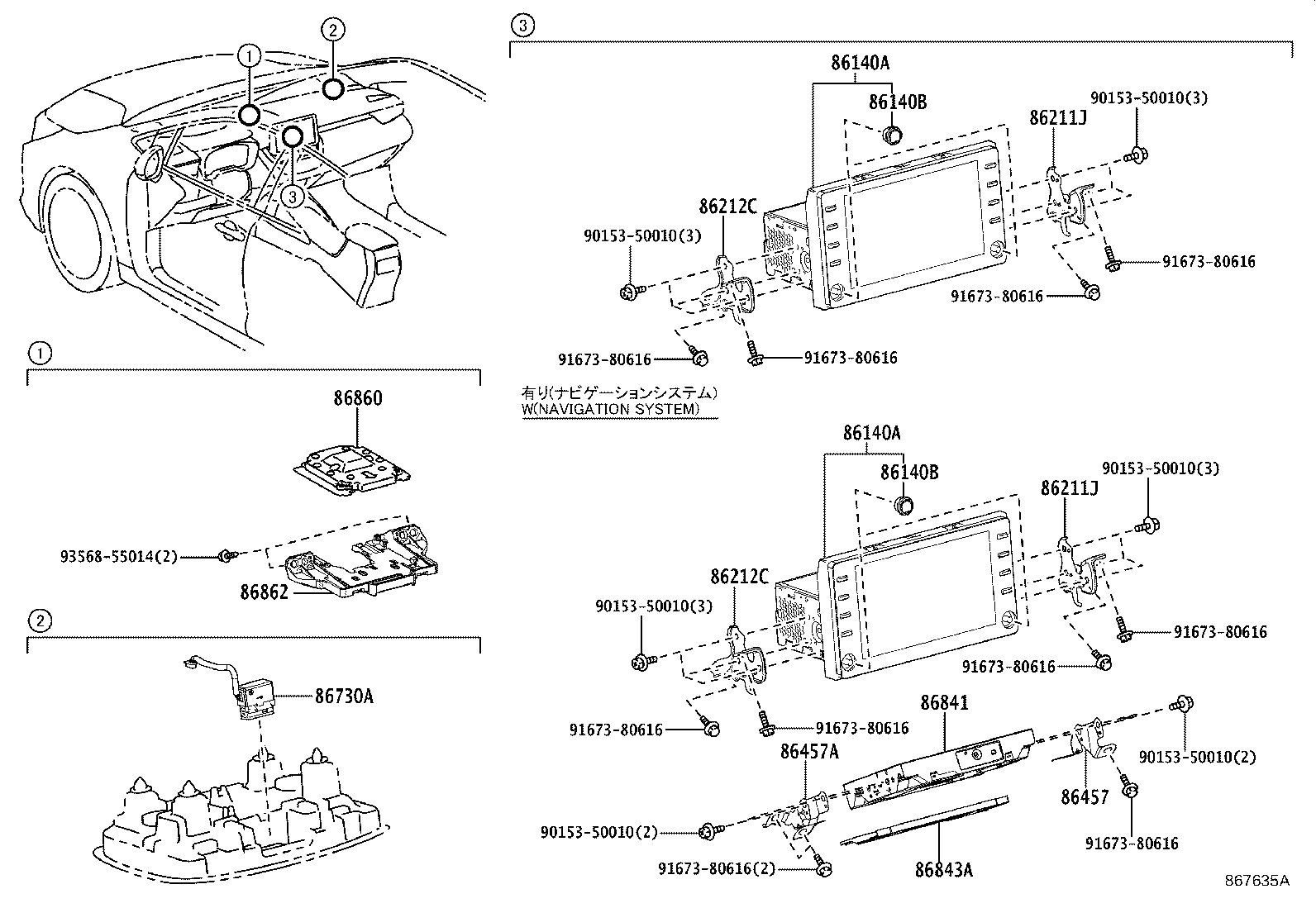

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86140A — Receiver Assy, Radio & Display | ||||
| 86140-12210 note |
Receiver Assy, Radio & Display
2018-06 → 2018-10
ended
|
MZEA12 | — | |
| 86140-12211 note |
Receiver Assy, Radio & Display
2018-10 → 2019-09
ended
|
MZEA12 | — | |
| 86140-12220 note |
Receiver Assy, Radio & Display
2018-06 → 2018-10
ended
|
MZEA12 USA | — | |
| 86140-12221 note |
Receiver Assy, Radio & Display
2018-10 → 2019-09
ended
|
MZEA12 USA | — | |
| 86140-12230 note |
Receiver Assy, Radio & Display
2018-06 → 2018-10
ended
|
MZEA12 CND | — | |
| 86140-12231 note |
Receiver Assy, Radio & Display
2018-10 → 2019-09
ended
|
MZEA12 CND | — | |
| 86140-12320 note |
Receiver Assy, Radio & Display
2018-06 → 2018-10
ended
|
MZEA12 USA | — | |
| 86140-12321 note |
Receiver Assy, Radio & Display
2018-10 → 2019-09
ended
|
MZEA12 USA | — | |
| 86140-12330 note |
Receiver Assy, Radio & Display
2018-06 → 2018-10
ended
|
MZEA12 CND | — | |
| 86140-12331 note |
Receiver Assy, Radio & Display
2018-10 → 2019-09
ended
|
MZEA12 CND | — | |
| 86140-12370 note |
Receiver Assy, Radio & Display
2018-06 → 2018-10
ended
|
MZEA12 USA | — | |
| 86140-12371 note |
Receiver Assy, Radio & Display
2018-10 → 2019-09
ended
|
MZEA12 USA | — | |
| 86140-12380 note |
Receiver Assy, Radio & Display
2018-06 → 2018-10
ended
|
MZEA12 CND | — | |
| 86140-12381 note |
Receiver Assy, Radio & Display
2018-10 → 2019-09
ended
|
MZEA12 CND | — | |
| 86140-12530 note |
Receiver Assy, Radio & Display
2019-09 → 2021-07
ended
|
MZEA12 CND | — | |
| 86140-12530 note |
Receiver Assy, Radio & Display
2019-09 → 2021-07
ended
|
MZEA12 USA | — | |
| 86140-12530 note |
Receiver Assy, Radio & Display
2019-09 → 2021-07
ended
|
MZEA12 USA | — | |
| 86140-12530 note |
Receiver Assy, Radio & Display
2019-09 → 2021-07
ended
|
MZEA12 USA | — | |
| 86140-12531 note |
Receiver Assy, Radio & Display
2021-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 86140-12531 note |
Receiver Assy, Radio & Display
2021-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 86140-12531 note |
Receiver Assy, Radio & Display
2021-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 86140-12531 note |
Receiver Assy, Radio & Display
2021-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 86140-12531 note |
Receiver Assy, Radio & Display
2021-07 → —
|
MZEA12 6F CND | — | |
| 86140-12531 note |
Receiver Assy, Radio & Display
2021-07 → —
|
MZEA12 6F USA | — | |
| 86140-12531 note |
Receiver Assy, Radio & Display
2021-07 → —
|
MZEA12 6F USA | — | |
| 86140-12531 note |
Receiver Assy, Radio & Display
2021-07 → —
|
MZEA12 6F USA | — | |
| 86140-12540 note |
Receiver Assy, Radio & Display
2021-07 → —
|
MZEA12 6F USA | — | |
| 86140-12540 note |
Receiver Assy, Radio & Display
2020-06 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 86140-12540 note |
Receiver Assy, Radio & Display
2019-09 → 2020-06
ended
|
MZEA12 USA | — | |
| 86140-12540 note |
Receiver Assy, Radio & Display
2020-06 → 2021-07
ended
|
MZEA12 6F USA | — | |
| 86140-12550 note |
Receiver Assy, Radio & Display
2019-09 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 86140-12550 note |
Receiver Assy, Radio & Display
2019-09 → —
|
MZEA12 6F CND | — | |
| 86140-12560 note |
Receiver Assy, Radio & Display
2020-06 → 2021-07
ended
|
MZEA12 USA | — | |
| 86140-12560 note |
Receiver Assy, Radio & Display
2019-09 → 2020-06
ended
|
MZEA12 USA | — | |
| 86140-12570 note |
Receiver Assy, Radio & Display
2019-09 → 2021-07
ended
|
MZEA12 CND | — | |
| 86140-12580 note |
Receiver Assy, Radio & Display
2020-06 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 86140-12580 note |
Receiver Assy, Radio & Display
2020-06 → 2021-07
ended
|
MZEA12 6F USA | — | |
| 86140-12580 note |
Receiver Assy, Radio & Display
2021-07 → —
|
MZEA12 6F USA | — | |
| 86140-12580 note |
Receiver Assy, Radio & Display
2019-09 → 2020-06
ended
|
MZEA12 USA | — | |
| 86140-12590 note |
Receiver Assy, Radio & Display
2019-09 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 86140-12590 note |
Receiver Assy, Radio & Display
2019-09 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 86140-12600 note |
Receiver Assy, Radio & Display
2019-09 → 2021-07
ended
|
MZEA12 USA | — | |
| 86140-12601 note |
Receiver Assy, Radio & Display
2021-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 86140-12601 note |
Receiver Assy, Radio & Display
2021-07 → —
|
MZEA12 6F USA | — | |
| 86140-12820 note |
Receiver Assy, Radio & Display
2021-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 86140-12820 note |
Receiver Assy, Radio & Display
2021-07 → —
|
MZEA12 6F USA | — | |
| 86140-12B70 note |
Receiver Assy, Radio & Display
2021-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 86140-12B70 note |
Receiver Assy, Radio & Display
2021-07 → —
|
MZEA12 6F CND | — | |
| 86140-12C60 note |
Receiver Assy, Radio & Display
2022-09 → —
|
MZEA12 USA | — | |
| 86140-12C70 note |
Receiver Assy, Radio & Display
2022-09 → —
|
MZEA12 USA | — | |
| 86140-12C80 note |
Receiver Assy, Radio & Display
2022-09 → —
|
MZEA12 CND | — | |
| 86140-12C90 note |
Receiver Assy, Radio & Display
2022-09 → —
|
MZEA12 CND | — | |
| 86140B — Knob, Radio & Display Receiver Switch | ||||
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → —
|
MZEA12 6F USA | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → —
|
MZEA12 6F USA | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → —
|
MZEA12 6F CND | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → —
|
MZEA12 6F USA | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → —
|
MZEA12 6F CND | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 90010-22129 note |
Knob, Radio & Display Receiver Switch
2021-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 90010-22129 |
Knob, Radio & Display Receiver Switch
2018-06 → 2021-07
ended
|
MZEA12 | — | |
| 90010-22139 |
Knob, Radio & Display Receiver Switch
2021-07 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90010-22139 |
Knob, Radio & Display Receiver Switch
2021-07 → —
|
MZEA12 6F | — | |
| 90010-23068 |
Knob, Radio & Display Receiver Switch
2022-09 → —
|
MZEA12 | — | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-12470 |
Bracket, Radio Receiver, NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 86211-12470 |
Bracket, Radio Receiver, NO.1
2018-06 → —
|
MZEA12 6F | — | |
| 86211-12470 |
Bracket, Radio Receiver, NO.1
2022-09 → —
|
MZEA12 | — | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-12460 |
Bracket, Radio Receiver, NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 86212-12460 |
Bracket, Radio Receiver, NO.2
2018-06 → —
|
MZEA12 6F | — | |
| 86212-12460 |
Bracket, Radio Receiver, NO.2
2022-09 → —
|
MZEA12 | — | |
| 86457 — Bracket, Multi-media Module NO.1 | ||||
| 86457-12010 note |
Bracket, Multi-media Module NO.1
2020-06 → 2021-07
ended
|
MZEA12 6F USA | — | |
| 86457-12010 note |
Bracket, Multi-media Module NO.1
2021-07 → 2022-08
ended
|
MZEA12 6F USA | — | |
| 86457-12010 note |
Bracket, Multi-media Module NO.1
2020-06 → 2022-08
ended
|
MZEA12 CVT USA | — | |
| 86457-12010 note |
Bracket, Multi-media Module NO.1
2020-06 → 2022-08
ended
|
MZEA12 CVT CND | — | |
| 86457-12010 note |
Bracket, Multi-media Module NO.1
2020-06 → 2021-07
ended
|
MZEA12 USA | — | |
| 86457-12010 note |
Bracket, Multi-media Module NO.1
2020-06 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 86457-12010 note |
Bracket, Multi-media Module NO.1
2020-06 → 2021-07
ended
|
MZEA12 CND | — | |
| 86457-12010 note |
Bracket, Multi-media Module NO.1
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 86457-12010 note |
Bracket, Multi-media Module NO.1
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 86457A — Bracket, Multi-media Module NO.2 | ||||
| 86457-12020 note |
Bracket, Multi-media Module NO.2
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 86457-12020 note |
Bracket, Multi-media Module NO.2
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 86457-12020 note |
Bracket, Multi-media Module NO.2
2020-06 → 2021-07
ended
|
MZEA12 CND | — | |
| 86457-12020 note |
Bracket, Multi-media Module NO.2
2020-06 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 86457-12020 note |
Bracket, Multi-media Module NO.2
2020-06 → 2021-07
ended
|
MZEA12 USA | — | |
| 86457-12020 note |
Bracket, Multi-media Module NO.2
2020-06 → 2021-07
ended
|
MZEA12 6F USA | — | |
| 86457-12020 note |
Bracket, Multi-media Module NO.2
2020-06 → 2022-08
ended
|
MZEA12 CVT CND | — | |
| 86457-12020 note |
Bracket, Multi-media Module NO.2
2020-06 → 2022-08
ended
|
MZEA12 CVT USA | — | |
| 86457-12020 note |
Bracket, Multi-media Module NO.2
2021-07 → 2022-08
ended
|
MZEA12 6F USA | — | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-12081 |
Microphone Assy, Telephone
2018-10 → —
|
MZEA12 6F | — | |
| 86730-12081 |
Microphone Assy, Telephone
2018-10 → 2022-09
ended
|
MZEA12 CVT | — | |
| 86730-47040 |
Microphone Assy, Telephone
2018-06 → 2018-10
ended
|
MZEA12 | — | |
| 86730-16010 |
Microphone Assy, Telephone
2022-09 → —
|
MZEA12 | — | |
| 86841 — Computer, Navigation | ||||
| 86840-35010 note |
Computer, Navigation
2019-09 → 2019-12
ended
|
MZEA12 | — | |
| 86840-35010 note |
Computer, Navigation
2019-09 → 2019-12
ended
|
MZEA12 | — | |
| 86840-35011 note |
Computer, Navigation
2020-06 → 2020-07
ended
|
MZEA12 CND | — | |
| 86840-35011 note |
Computer, Navigation
2020-06 → 2020-07
ended
|
MZEA12 USA | — | |
| 86840-35011 note |
Computer, Navigation
2020-06 → 2020-07
ended
|
MZEA12 USA | — | |
| 86840-35011 note |
Computer, Navigation
2020-06 → 2020-07
ended
|
MZEA12 CND | — | |
| 86840-35011 note |
Computer, Navigation
2020-01 → 2020-06
ended
|
MZEA12 | — | |
| 86840-35011 note |
Computer, Navigation
2020-01 → 2020-06
ended
|
MZEA12 | — | |
| 86840-35012 note |
Computer, Navigation
2020-07 → 2021-01
ended
|
MZEA12 USA | — | |
| 86840-35012 note |
Computer, Navigation
2020-07 → 2021-01
ended
|
MZEA12 USA | — | |
| 86840-35012 note |
Computer, Navigation
2020-07 → 2021-01
ended
|
MZEA12 CND | — | |
| 86840-35012 note |
Computer, Navigation
2020-07 → 2021-01
ended
|
MZEA12 CND | — | |
| 86840-35013 note |
Computer, Navigation
2021-02 → 2021-06
ended
|
MZEA12 USA | — | |
| 86840-35013 note |
Computer, Navigation
2021-02 → 2021-06
ended
|
MZEA12 CND | — | |
| 86840-35013 note |
Computer, Navigation
2021-02 → 2021-06
ended
|
MZEA12 CND | — | |
| 86840-35013 note |
Computer, Navigation
2021-02 → 2021-06
ended
|
MZEA12 USA | — | |
| 86840-35014 note |
Computer, Navigation
2021-07 → 2022-01
ended
|
MZEA12 6F USA | — | |
| 86840-35014 note |
Computer, Navigation
2021-07 → 2022-01
ended
|
MZEA12 CVT CND | — | |
| 86840-35014 note |
Computer, Navigation
2021-07 → 2022-01
ended
|
MZEA12 CVT USA | — | |
| 86840-35015 note |
Computer, Navigation
2022-02 → 2022-06
ended
|
MZEA12 6F USA | — | |
| 86840-35015 note |
Computer, Navigation
2022-02 → 2022-06
ended
|
MZEA12 CVT CND | — | |
| 86840-35015 note |
Computer, Navigation
2022-02 → 2022-06
ended
|
MZEA12 CVT USA | — | |
| 86840-35016 note |
Computer, Navigation
2022-07 → 2022-08
ended
|
MZEA12 CVT CND | — | |
| 86840-35016 note |
Computer, Navigation
2022-07 → 2022-08
ended
|
MZEA12 6F USA | — | |
| 86840-35016 note |
Computer, Navigation
2022-07 → 2022-08
ended
|
MZEA12 CVT USA | — | |
| 86840-42010 note |
Computer, Navigation
2018-06 → 2018-08
ended
|
MZEA12 | — | |
| 86840-42010 note |
Computer, Navigation
2018-06 → 2018-08
ended
|
MZEA12 | — | |
| 86840-42011 note |
Computer, Navigation
2018-08 → 2018-10
ended
|
MZEA12 | — | |
| 86840-42011 note |
Computer, Navigation
2018-08 → 2018-10
ended
|
MZEA12 | — | |
| 86840-42040 note |
Computer, Navigation
2018-10 → 2019-01
ended
|
MZEA12 | — | |
| 86840-42040 note |
Computer, Navigation
2018-10 → 2019-01
ended
|
MZEA12 | — | |
| 86840-42041 note |
Computer, Navigation
2019-02 → 2019-07
ended
|
MZEA12 | — | |
| 86840-42041 note |
Computer, Navigation
2019-02 → 2019-07
ended
|
MZEA12 | — | |
| 86840-42042 note |
Computer, Navigation
2019-08 → 2019-09
ended
|
MZEA12 | — | |
| 86840-42042 note |
Computer, Navigation
2019-08 → 2019-09
ended
|
MZEA12 | — | |
| 86843A — Cover, Navigation Computer | ||||
| 86843-12010 note |
Cover, Navigation Computer
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 86843-12010 note |
Cover, Navigation Computer
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 86843-12010 note |
Cover, Navigation Computer
2020-06 → 2021-07
ended
|
MZEA12 CND | — | |
| 86843-12010 note |
Cover, Navigation Computer
2020-06 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 86843-12010 note |
Cover, Navigation Computer
2020-06 → 2021-07
ended
|
MZEA12 USA | — | |
| 86843-12010 note |
Cover, Navigation Computer
2020-06 → 2021-07
ended
|
MZEA12 6F USA | — | |
| 86843-12010 note |
Cover, Navigation Computer
2020-06 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 86843-12010 note |
Cover, Navigation Computer
2020-06 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 86843-12010 note |
Cover, Navigation Computer
2021-07 → —
|
MZEA12 6F USA | — | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-78010 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86860-78010 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 CND | — | |
| 86860-78010 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86860-78010 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86860-78010 |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 CND | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 CND | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 CND | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 CND | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 note |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-47090 |
Antenna Assy, Navigation
2018-06 → 2019-09
ended
|
MZEA12 USA | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → 2022-10
ended
|
MZEA12 USA | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2021-07 → —
|
MZEA12 CND | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2020-06 → —
|
MZEA12 CND | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → —
|
MZEA12 USA | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → —
|
MZEA12 USA | — | |
| 86880-52020 |
Antenna Assy, Navigation
2019-09 → —
|
MZEA12 USA | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → 2022-10
ended
|
MZEA12 USA | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → 2022-10
ended
|
MZEA12 USA | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2020-06 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2020-06 → 2021-07
ended
|
MZEA12 CND | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → 2020-09
ended
|
MZEA12 USA | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → 2020-09
ended
|
MZEA12 USA | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → 2020-09
ended
|
MZEA12 USA | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → 2020-06
ended
|
MZEA12 CND | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → 2020-06
ended
|
MZEA12 CND | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2019-09 → 2020-06
ended
|
MZEA12 CND | — | |
| 86880-52020 note |
Antenna Assy, Navigation
2020-06 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 86880-42010 |
Antenna Assy, Navigation
2022-09 → —
|
MZEA12 | — | |
| 86862 — Bracket, Navigation Antenna | ||||
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → 2020-06
ended
|
MZEA12 CND | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → 2020-06
ended
|
MZEA12 CND | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → 2020-06
ended
|
MZEA12 CND | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → 2020-09
ended
|
MZEA12 USA | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → 2020-09
ended
|
MZEA12 USA | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → 2020-09
ended
|
MZEA12 USA | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-06 → 2021-07
ended
|
MZEA12 CND | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-06 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-06 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → 2022-10
ended
|
MZEA12 USA | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → 2022-10
ended
|
MZEA12 USA | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → 2022-10
ended
|
MZEA12 USA | — | |
| 86862-42010 |
Bracket, Navigation Antenna
2020-01 → —
|
MZEA12 USA | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → —
|
MZEA12 USA | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-01 → —
|
MZEA12 USA | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2020-06 → —
|
MZEA12 CND | — | |
| 86862-42010 note |
Bracket, Navigation Antenna
2021-07 → —
|
MZEA12 CND | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2019-09 → 2019-12
ended
|
MZEA12 CND | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2019-09 → 2019-12
ended
|
MZEA12 CND | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2019-09 → 2019-12
ended
|
MZEA12 CND | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2019-09 → 2019-12
ended
|
MZEA12 USA | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2019-09 → 2019-12
ended
|
MZEA12 USA | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2018-06 → 2019-12
ended
|
MZEA12 USA | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2018-06 → 2019-12
ended
|
MZEA12 USA | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2018-06 → 2019-12
ended
|
MZEA12 USA | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2018-06 → 2019-12
ended
|
MZEA12 USA | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2018-06 → 2019-12
ended
|
MZEA12 USA | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2018-06 → 2019-12
ended
|
MZEA12 USA | — | |
| 86862-58020 |
Bracket, Navigation Antenna
2018-06 → 2019-12
ended
|
MZEA12 USA | — | |
| 86862-58020 note |
Bracket, Navigation Antenna
2018-06 → 2019-09
ended
|
MZEA12 CND | — | |
| 86862-58020 |
Bracket, Navigation Antenna
2018-06 → 2019-09
ended
|
MZEA12 CND | — | |
| 86862-42010 |
Bracket, Navigation Antenna
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
