Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

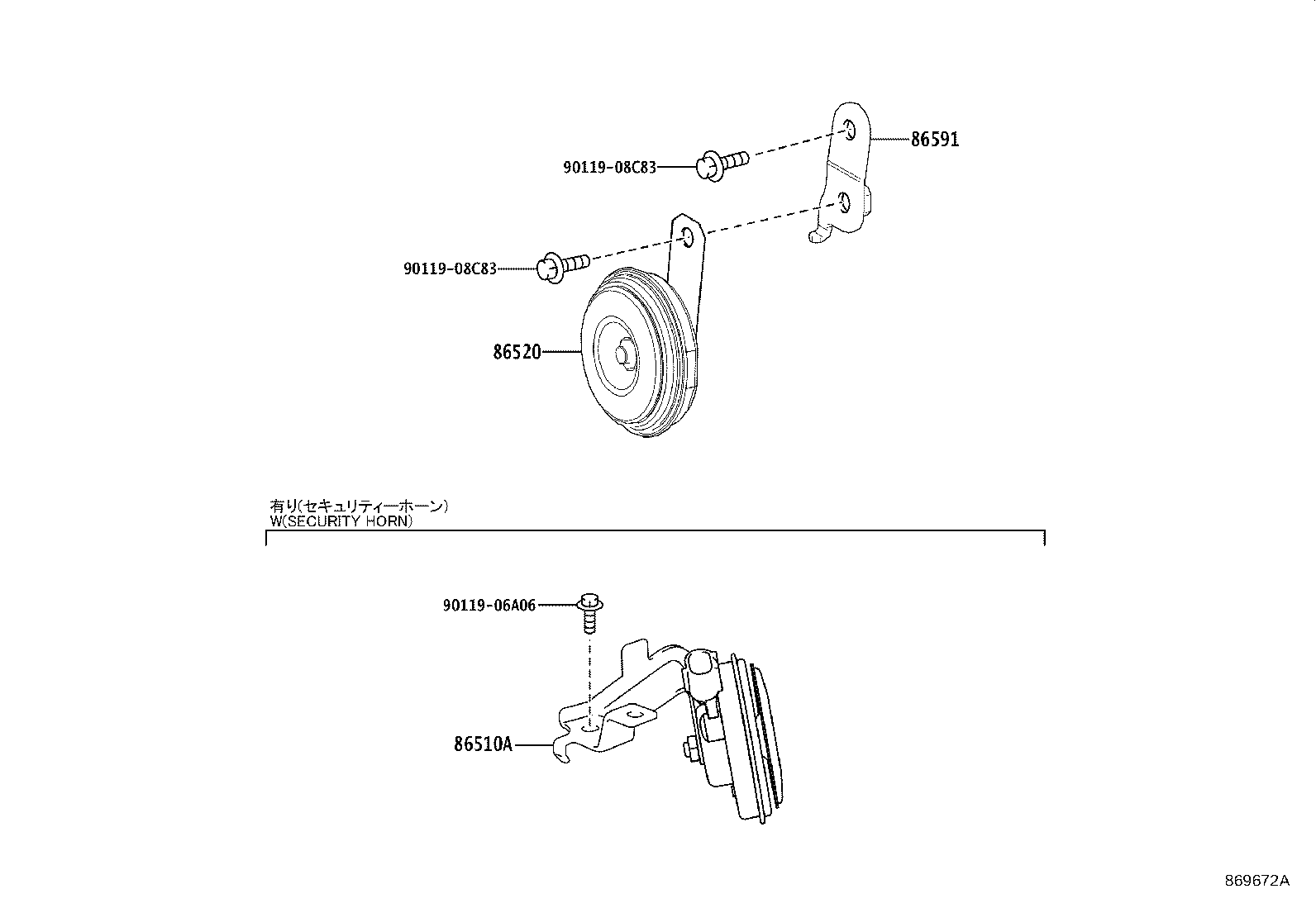

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86510A — Horn Assy, Security | ||||
| 86560-12090 note |
Horn Assy, Security
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 86560-12090 note |
Horn Assy, Security
2018-06 → —
|
MZEA12 6F | — | |
| 86560-12090 |
Horn Assy, Security
2022-09 → —
|
MZEA12 | — | |
| 86520 — Horn Assy, Low Pitched | ||||
| 86520-68010 |
Horn Assy, Low Pitched
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 86520-68010 |
Horn Assy, Low Pitched
2018-06 → —
|
MZEA12 6F | — | |
| 86520-52230 |
Horn Assy, Low Pitched
2023-04 → —
|
MZEA12 | — | |
| 86520-68010 |
Horn Assy, Low Pitched
2022-09 → 2023-04
ended
|
MZEA12 | — | |
| 86591 — Bracket, Horn | ||||
| 86591-12040 |
Bracket, Horn
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 86591-12040 |
Bracket, Horn
2018-06 → —
|
MZEA12 6F | — | |
| 86591-12100 |
Bracket, Horn
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
