Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

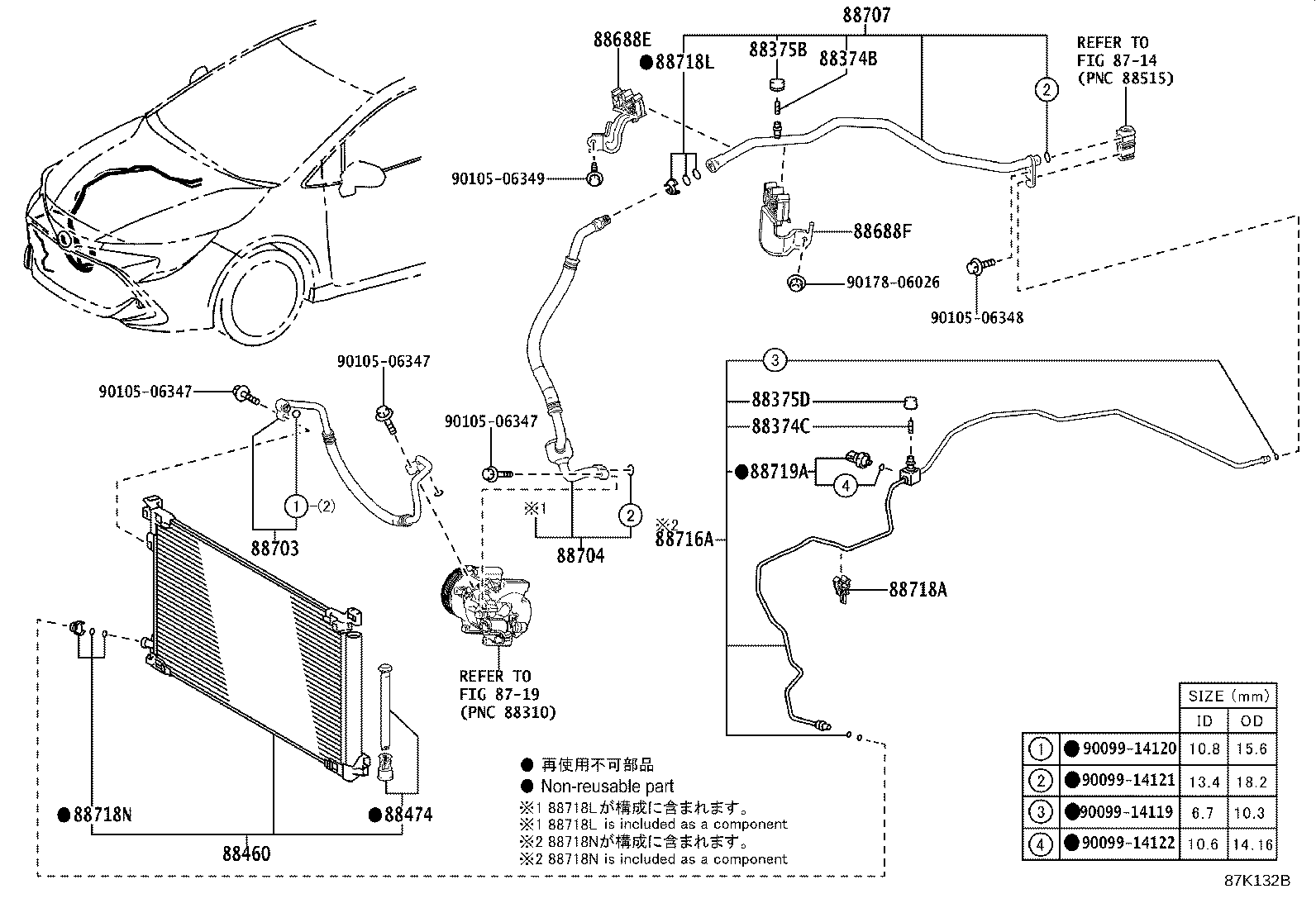

Exploded illustration 87K132B 88460 — CONDENSER ASSY, COOLER (3 parts) 88718N — CLAMP, PIPING (3 parts) 88704 — HOSE SUB-ASSY, SUCTION (4 parts) 9010506347 — not listed in this catalogue 8719 — not listed in this catalogue 88703 — HOSE SUB-ASSY, DISCHARGE (3 parts) 9010506347 — not listed in this catalogue 9010506347 — not listed in this catalogue 88474 — DRYER, COOLER (3 parts) 9009914120 — not listed in this catalogue 9009914121 — not listed in this catalogue 9009914119 — not listed in this catalogue 9009914122 — not listed in this catalogue 88375D — CAP, SERVICE VALVE, NO.2 (3 parts) 88716A — PIPE, COOLER REFRIGERANT LIQUID, A (6 parts) 88719A — SENSOR, AIR CONDITIONER PRESSURE (3 parts) 88374C — VALVE, SERVICE, NO.2 (3 parts) 88718A — CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) (3 parts) 88707 — PIPE SUB-ASSY, SUCTION (4 parts) 88375B — CAP, SERVICE VALVE, NO.1 (3 parts) 88374B — VALVE, SERVICE, NO.1 (3 parts) 88718L — CLAMP, PIPING (3 parts) 8714 — not listed in this catalogue 88688E — BRACKET, COOLER REFRIGERANT HOSE, NO.1 (4 parts) 9010506349 — not listed in this catalogue 9010506348 — not listed in this catalogue 88688F — BRACKET, COOLER REFRIGERANT HOSE, NO.2 (3 parts) 9017806026 — not listed in this catalogue
87K132B · 16 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88374-30010 Valve, Service, NO.1
2018-06 → —
MZEA12 6F —
88374-30010 Valve, Service, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
88374-30010 Valve, Service, NO.1
2022-09 → —
MZEA12 —
88374C — Valve, Service, NO.2
88374-30010 Valve, Service, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
88374-30010 Valve, Service, NO.2
2018-06 → —
MZEA12 6F —
88374-30010 Valve, Service, NO.2
2022-09 → 2023-10 ended
MZEA12 —
88375B — Cap, Service Valve, NO.1
88375-30310 Cap, Service Valve, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
88375-30310 Cap, Service Valve, NO.1
2018-06 → —
MZEA12 6F —
88375-30310 Cap, Service Valve, NO.1
2022-09 → —
MZEA12 —
88375D — Cap, Service Valve, NO.2
88375-30320 Cap, Service Valve, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
88375-30320 Cap, Service Valve, NO.2
2018-06 → —
MZEA12 6F —
88375-30320 Cap, Service Valve, NO.2
2022-09 → —
MZEA12 —
88460 — Condenser Assy, Cooler
884A0-12010 Condenser Assy, Cooler
2018-06 → 2022-09 ended
MZEA12 CVT —
884A0-12010 Condenser Assy, Cooler
2018-06 → —
MZEA12 6F —
884A0-12120 Condenser Assy, Cooler
2022-09 → —
MZEA12 —
88474 — Dryer, Cooler
88474-12020 Dryer, Cooler
2018-06 → 2022-09 ended
MZEA12 CVT —
88474-12020 Dryer, Cooler
2018-06 → —
MZEA12 6F —
88474-12010 Dryer, Cooler
2022-09 → —
MZEA12 —
88688E — Bracket, Cooler Refrigerant Hose, NO.1
88688-12A20 Bracket, Cooler Refrigerant Hose, NO.1
2021-07 → 2022-09 ended
MZEA12 CVT —
88688-12A20 Bracket, Cooler Refrigerant Hose, NO.1
2021-07 → —
MZEA12 6F —
88688-12A40 Bracket, Cooler Refrigerant Hose, NO.1
2018-06 → 2021-07 ended
MZEA12 —
88688-12A20 Bracket, Cooler Refrigerant Hose, NO.1
2022-09 → —
MZEA12 —
88688F — Bracket, Cooler Refrigerant Hose, NO.2
88688-10560 Bracket, Cooler Refrigerant Hose, NO.2
2021-07 → 2022-09 ended
MZEA12 CVT —
88688-10560 Bracket, Cooler Refrigerant Hose, NO.2
2021-07 → —
MZEA12 6F —
88688-10560 Bracket, Cooler Refrigerant Hose, NO.2
2022-09 → —
MZEA12 —
88703 — Hose Sub-assy, Discharge
88703-12A20 Hose Sub-assy, Discharge
2018-06 → 2022-09 ended
MZEA12 CVT —
88703-12A20 Hose Sub-assy, Discharge
2018-06 → —
MZEA12 6F —
88703-12A20 Hose Sub-assy, Discharge
2022-09 → —
MZEA12 —
88704 — Hose Sub-assy, Suction
88704-12A20 Hose Sub-assy, Suction
2018-06 → —
MZEA12 6F —
88704-12A20 Hose Sub-assy, Suction
2018-06 → 2022-09 ended
MZEA12 CVT —
88704-12A20 Hose Sub-assy, Suction
2022-09 → 2024-04 ended
MZEA12 —
88704-12B80 Hose Sub-assy, Suction
2024-05 → —
MZEA12 —
88707 — Pipe Sub-assy, Suction
88707-12441 Pipe Sub-assy, Suction
2021-07 → 2022-09 ended
MZEA12 CVT —
88707-12441 Pipe Sub-assy, Suction
2021-07 → —
MZEA12 6F —
88710-12A00 Pipe Sub-assy, Suction
2018-06 → 2021-07 ended
MZEA12 —
88707-12441 Pipe Sub-assy, Suction
2022-09 → —
MZEA12 —
88716A — Pipe, Cooler Refrigerant Liquid, A
88710-12B00 Pipe, Cooler Refrigerant Liquid, A
2018-06 → 2019-09 ended
MZEA12 —
88710-12C10 Pipe, Cooler Refrigerant Liquid, A
2019-09 → 2021-07 ended
MZEA12 —
88710-12C11 Pipe, Cooler Refrigerant Liquid, A
2021-07 → 2022-09 ended
MZEA12 CVT —
88710-12C11 Pipe, Cooler Refrigerant Liquid, A
2021-07 → —
MZEA12 6F —
88710-12C11 Pipe, Cooler Refrigerant Liquid, A
2022-09 → 2023-10 ended
MZEA12 —
88710-12C12 Pipe, Cooler Refrigerant Liquid, A
2023-10 → —
MZEA12 —
88718A — Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-47110 Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
88718-47110 Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2018-06 → —
MZEA12 6F —
88718-47110 Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2022-09 → —
MZEA12 —
88718L — Clamp, Piping
88718-52280 Clamp, Piping
2018-06 → 2022-09 ended
MZEA12 CVT —
88718-52280 Clamp, Piping
2018-06 → —
MZEA12 6F —
88718-52280 Clamp, Piping
2022-09 → —
MZEA12 —
88718N — Clamp, Piping
88718-1E150 Clamp, Piping
2018-06 → 2022-09 ended
MZEA12 CVT —
88718-1E150 Clamp, Piping
2018-06 → —
MZEA12 6F —
88718-1E150 Clamp, Piping
2022-09 → —
MZEA12 —
88719A — Sensor, Air Conditioner Pressure
88719-11010 Sensor, Air Conditioner Pressure
2018-06 → 2022-09 ended
MZEA12 CVT —
88719-11010 Sensor, Air Conditioner Pressure
2018-06 → —
MZEA12 6F —
88719-11010 Sensor, Air Conditioner Pressure
2022-09 → 2023-10 ended
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
