Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

64 part groups · 20 illustrations

Illustrations

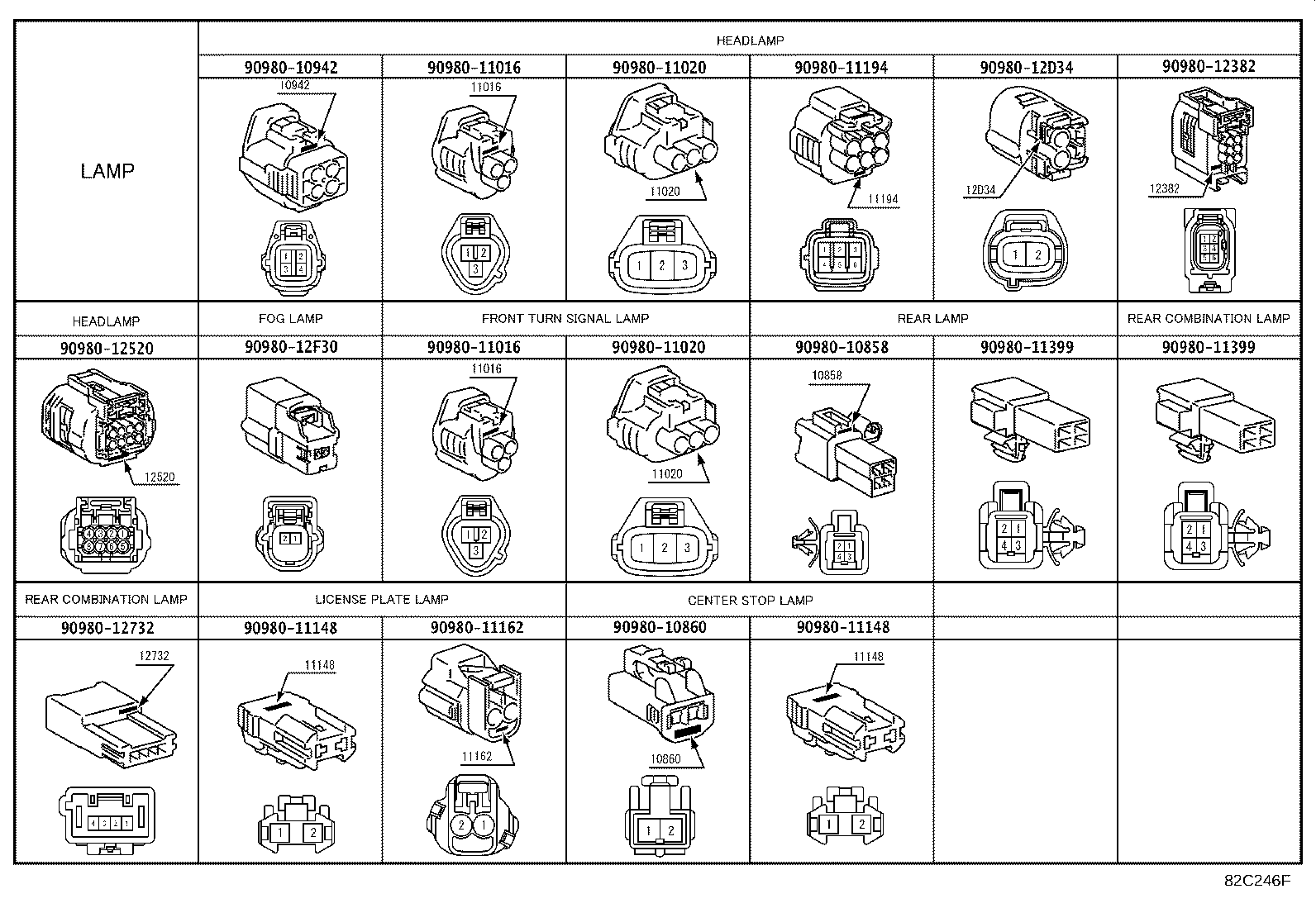

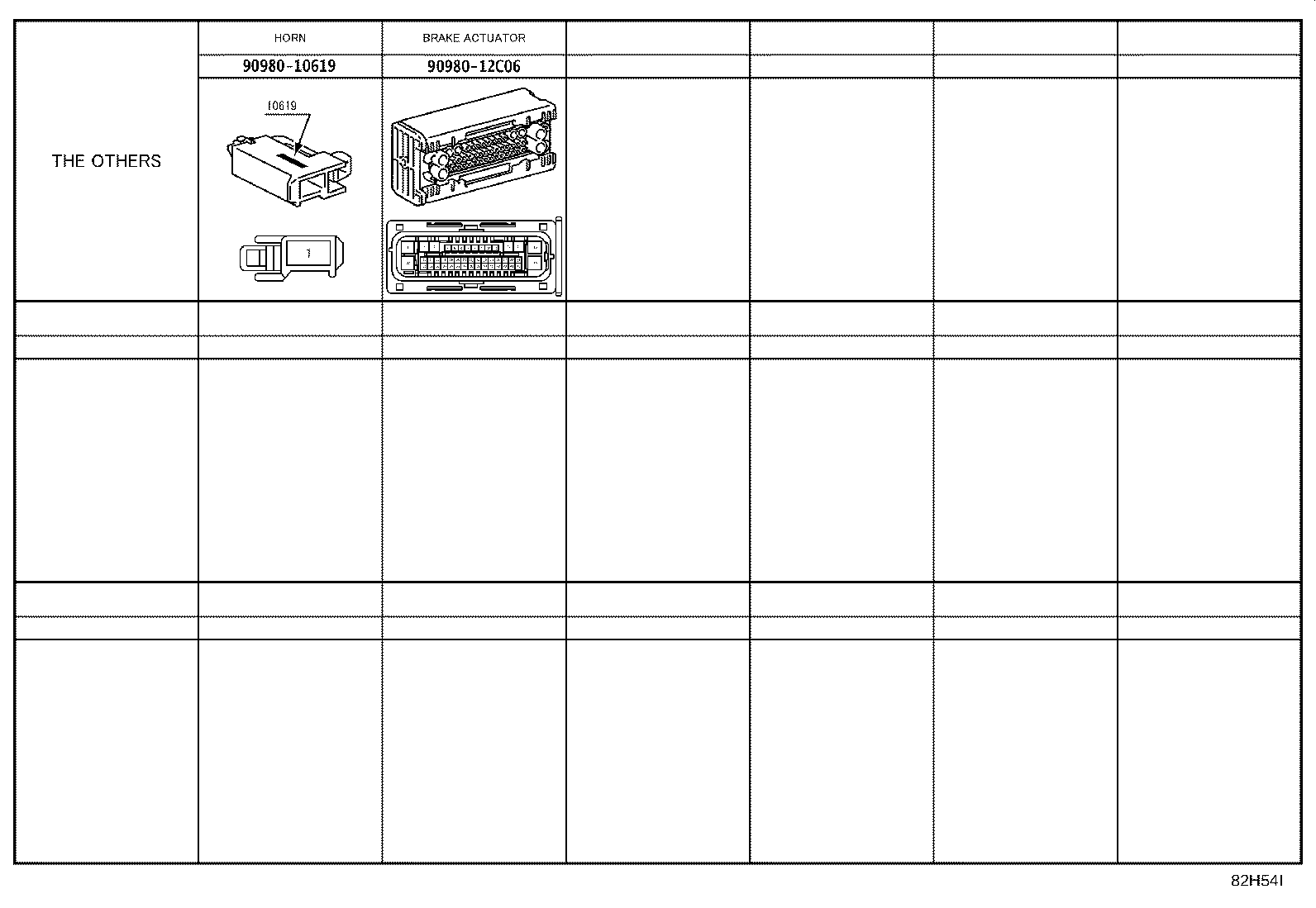

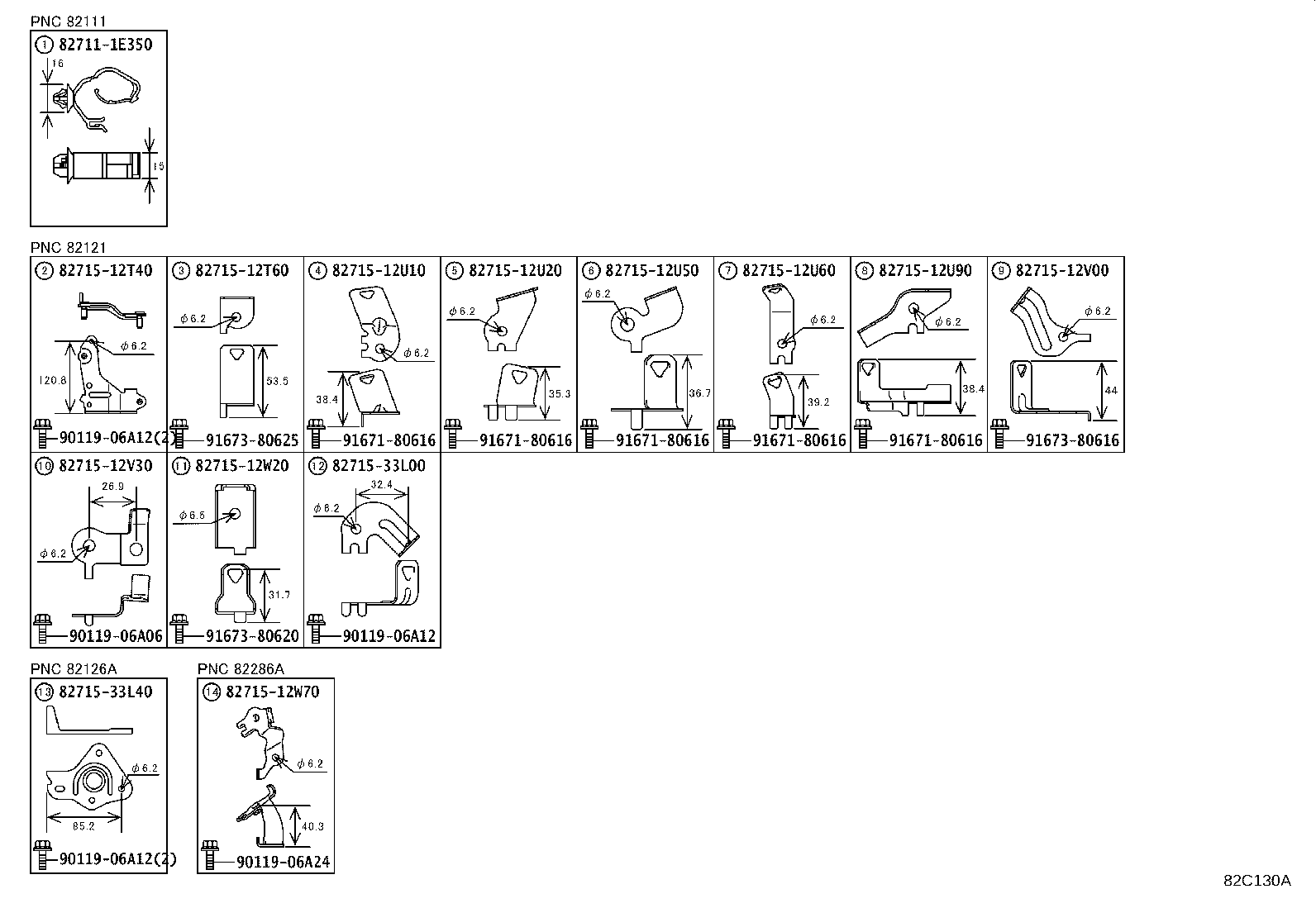

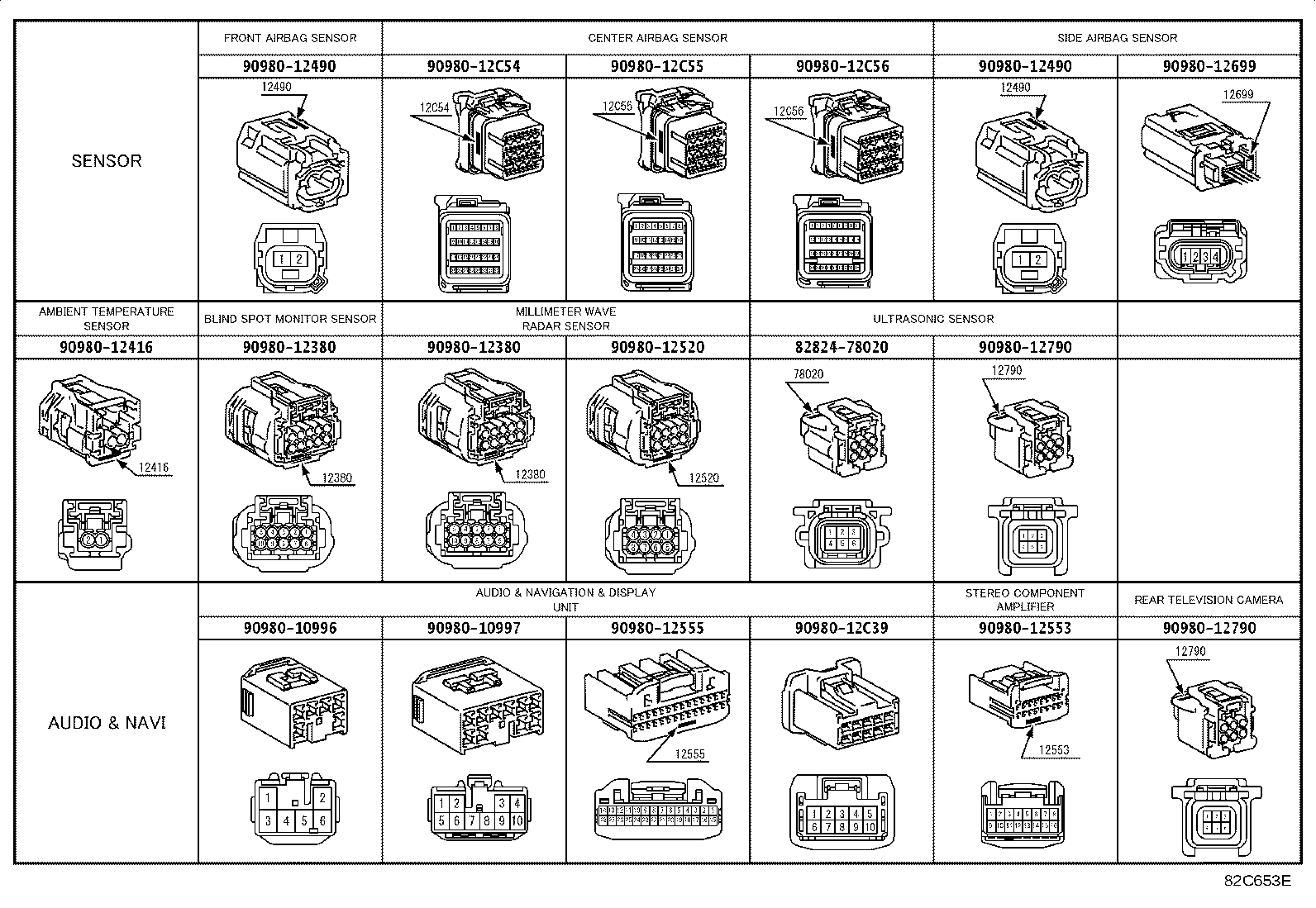

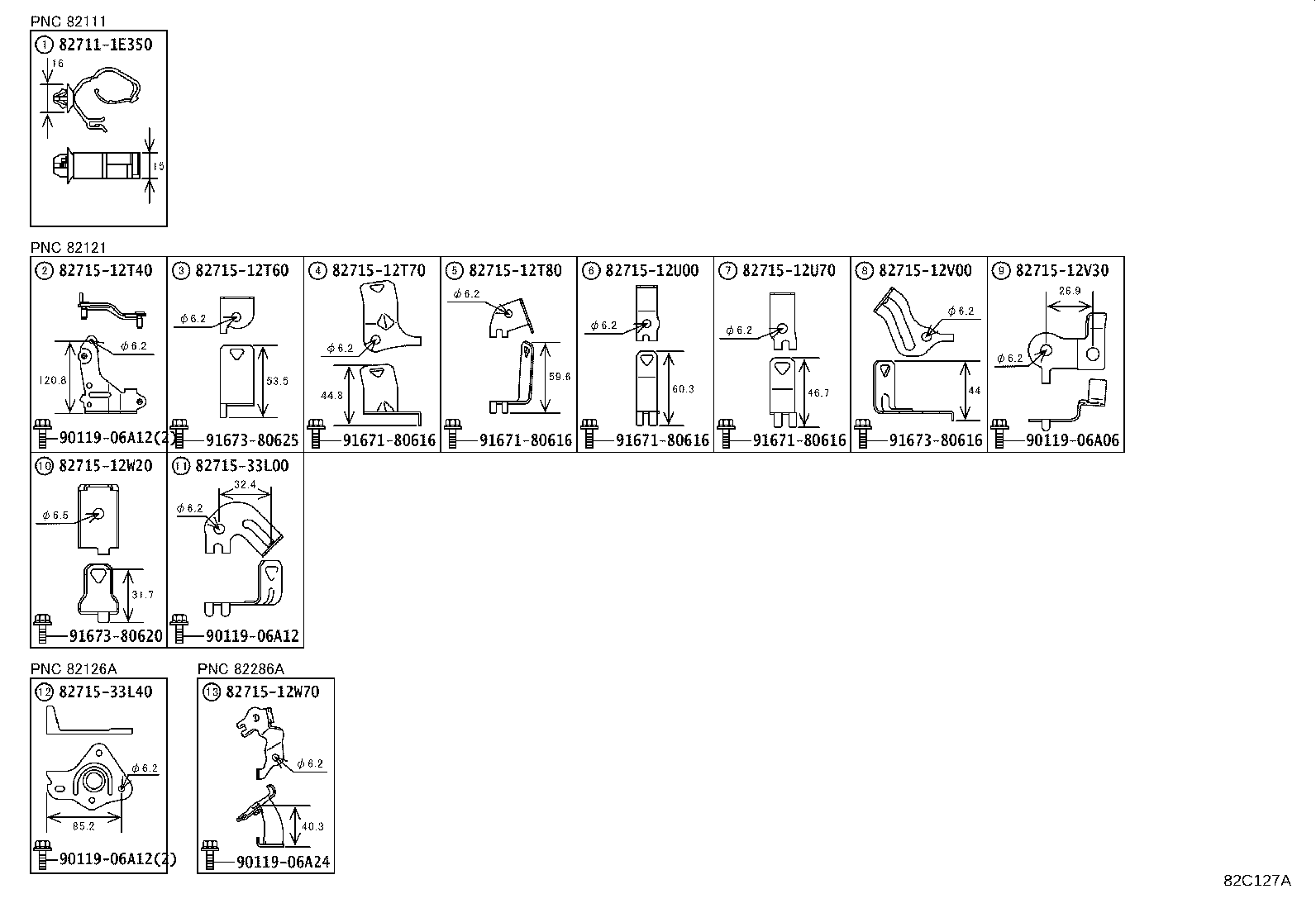

Figure 82C102A 82C102A 2018-06 → — Figure 82C103J 82C103J 2018-06 → — Figure 82C221B 82C221B 2018-06 → — Figure 82C113A 82C113A 2018-06 → — Figure 82C222C 82C222C 2018-06 → — Figure 82G890 82G890 2018-06 → — Figure 82C116E 82C116E 2018-06 → — Figure 82C118A 82C118A 2018-06 → 2022-09 Figure 82C118A 82C118A 2018-06 → — Figure 82G299 82G299 2022-09 → — Figure 82C223B 82C223B 2018-06 → 2022-09 Figure 82C223B 82C223B 2018-06 → — Figure 82G300 82G300 2022-09 → — Figure 82C122 82C122 2018-06 → — Figure 82C123 82C123 2018-06 → — Figure 82C127A 82C127A 2018-06 → — Figure 82C130A 82C130A 2018-06 → — Figure 82C246F 82C246F 2018-06 → — Figure 82C653E 82C653E 2018-06 → — Figure 82H54I 82H54I 2018-06 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
8219B Wire, Front Seat, LH NO.2
82219C Wire, Sensor
82286A Wire, Earth, NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82816B Cover, Wiring Harness Protector, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817T Protector, Wiring Harness, NO.15
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82821E Cover, Connector
82823S Cap, Starter Terminal
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
