Toyota GR Corolla
2022-10 → present · chassis GZEA14 · catalogue 16E410 · United States
Supported model
Data version 2024-09

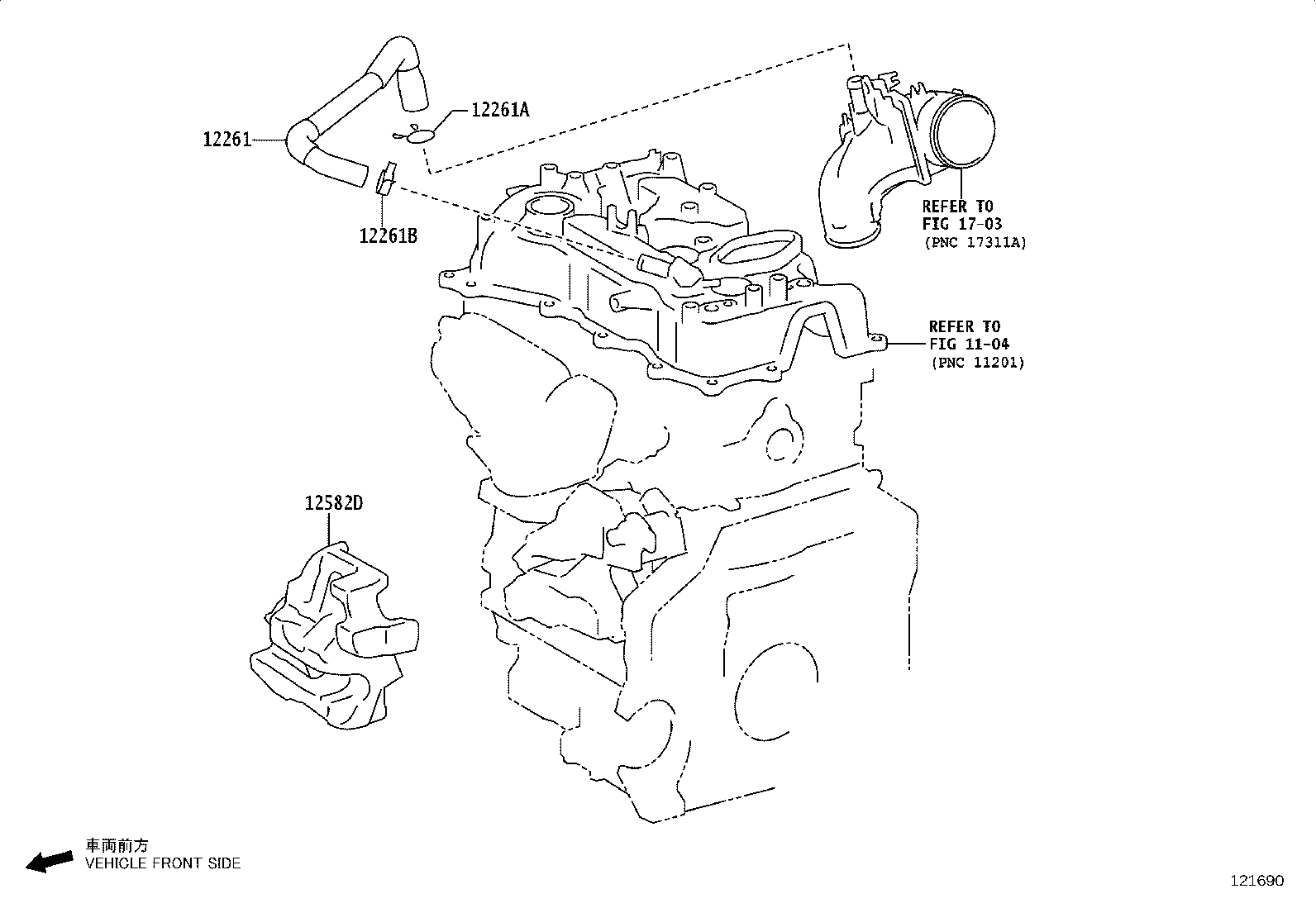

Ventilation Hose
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12211 | Case, Ventilation, NO.1 |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12261B | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12273E | Gasket(FOR VENTILATION CASE) |
| 12582D | Insulator, Cylinder Block, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
