Toyota GR Corolla
2022-10 → present · chassis GZEA14 · catalogue 16E410 · United States
Supported model
Data version 2024-09

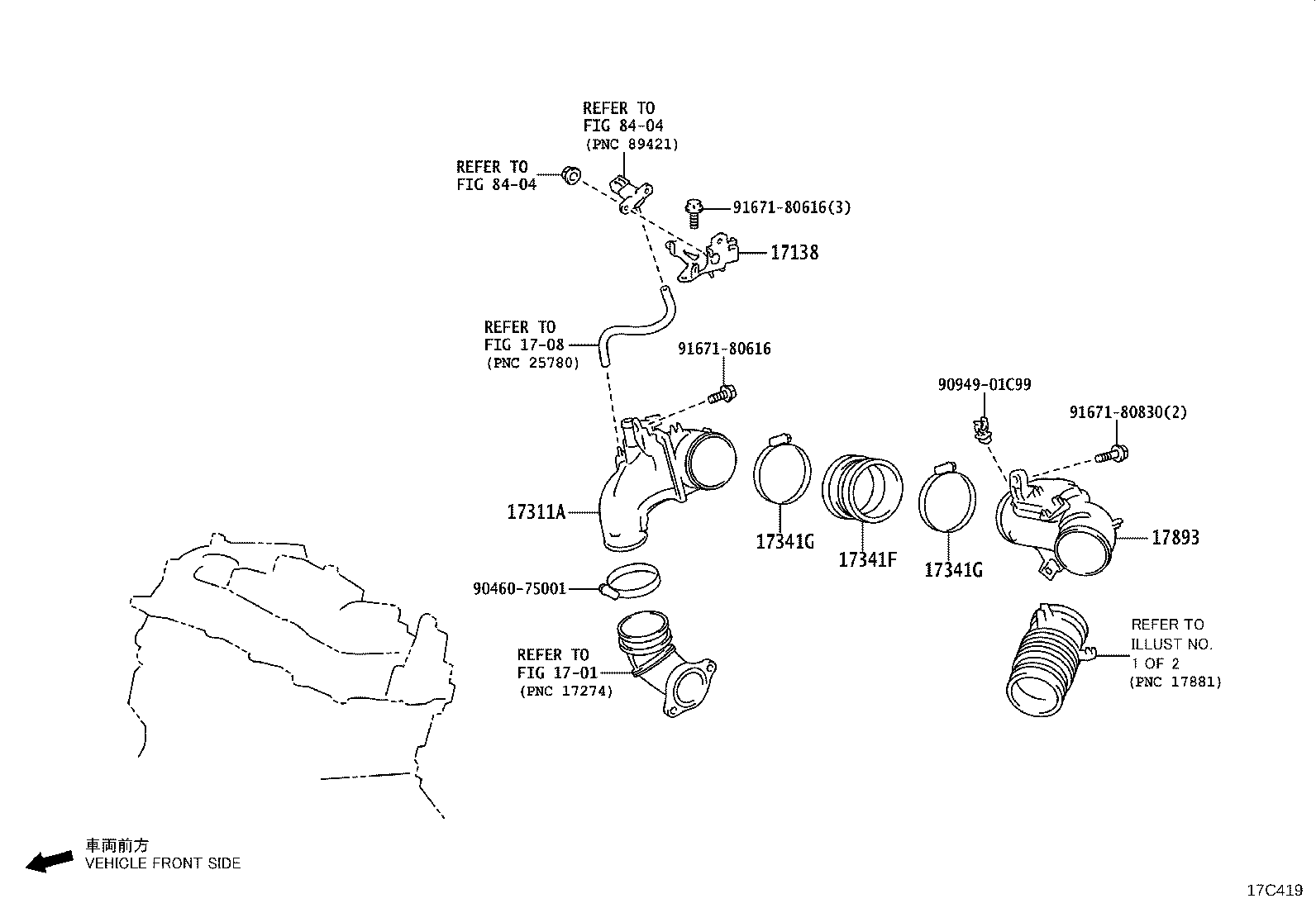

Air Cleaner
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17138 | Stay, Intake Pipe OR Hose |
| 17311A | Duct, Air Inlet, NO.1 |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17344E | Hose, Air, NO.4 |
| 17344F | Clamp, Hose(FOR AIR HOSE, NO.4) |
| 17345F | Hose, Air, NO.5 |
| 17345G | Clamp OR Clip(FOR AIR HOSE, NO.5) |
| 17360A | Tube Assy, Air |
| 17361J | Tube, Air, NO.1 |
| 17362B | Tube, Air, NO.2 |
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710B | Grommet |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17753 | Inlet, Air Cleaner, NO.3 |
| 17769C | Support, Air Cleaner, NO.1 |
| 17771A | Bracket, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17871 | Stay, Air Connector |
| 17872 | Bracket, Intake Air Connector |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17881C | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17893 | Resonator, Intake Air |
| 17940D | Intercooler Assy |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 75895Q | Tape, Moulding, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
