Toyota GR Corolla

2022-10 → present · chassis GZEA14 · catalogue 16E410 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

37 part groups · 3 illustrations

Illustrations

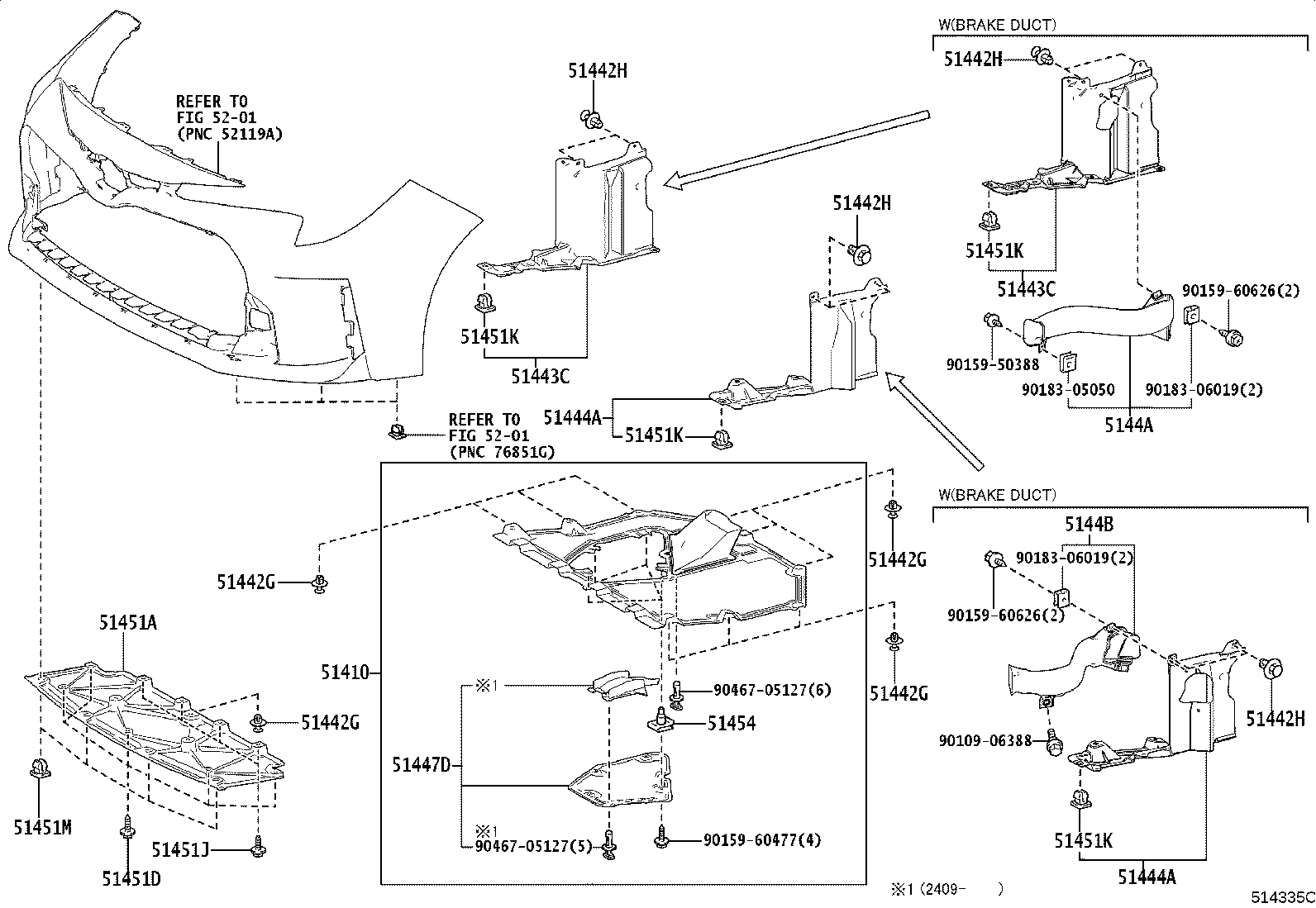

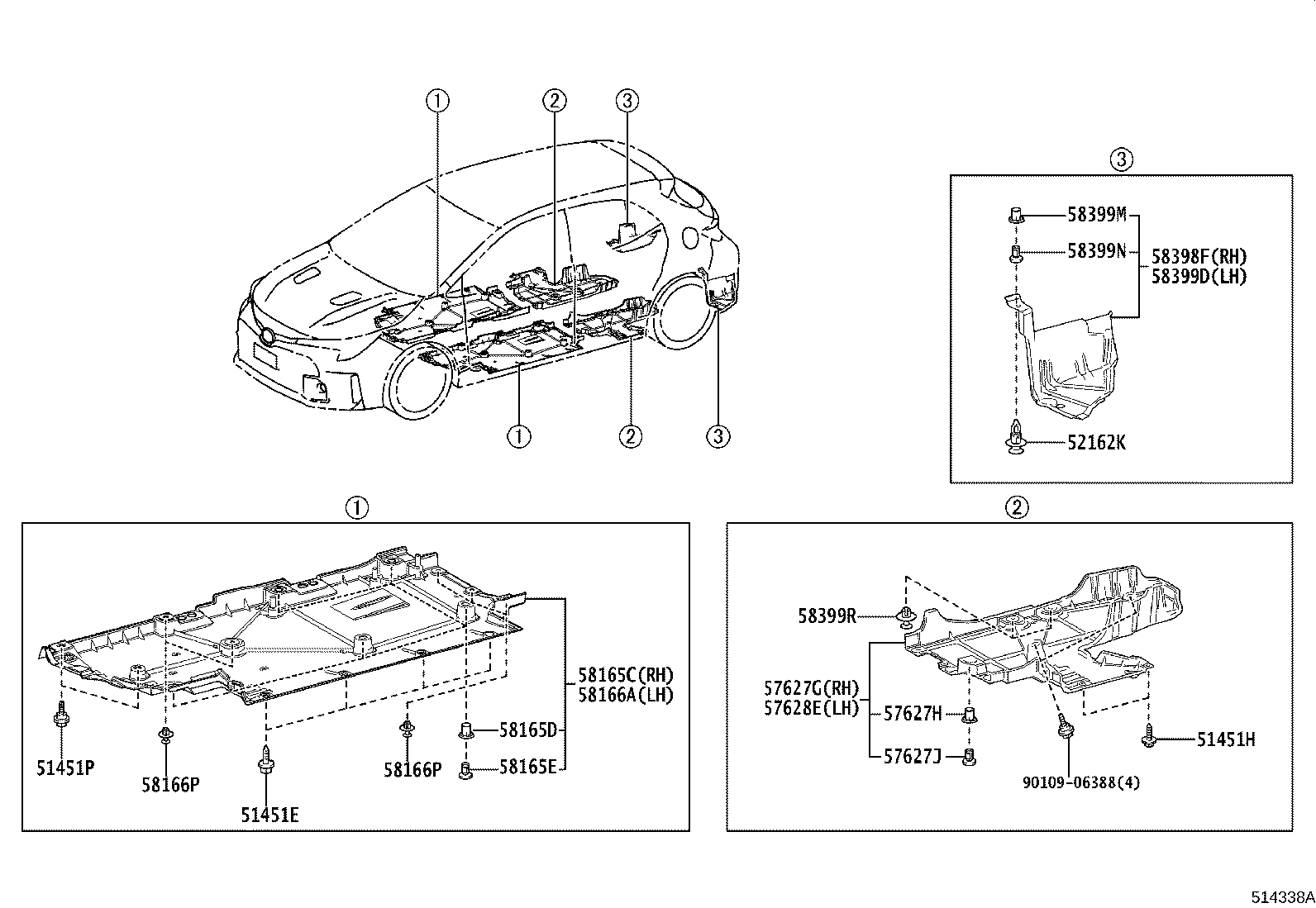

Figure 514334G 514334G 2022-10 → — Figure 514335O 514335O 2022-10 → — Figure 514338A 514338A 2022-10 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51284 Cover, Rear Suspension Member Hole
51410 Cover Assy, Engine Under, NO.1
51442G Clip, Engine Under Cover, NO.1
51442H Clip, Engine Under Cover, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
5144A Guide, Engine Under Cover Air, NO.2
5144B Guide, Engine Under Cover Air, NO.3
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51451E Screw, NO.2
51451H Screw, NO.3
51451J Bolt, NO.1
51451K Grommet, Screw, NO.1
51451M Grommet, Screw, NO.2
51451P Bolt, NO.2
51454 Clip
52162K Piece, Rear Bumper
57627G Cover, Rear Floor Side Member, RH
57627H Clip, Rear Floor Side Member Cover, NO.1
57627J Clip, Rear Floor Side Member Cover, NO.2
57628E Cover, Rear Floor Side Member, LH
58165C Cover, Front Floor, RH
58165D Clip, Floor Cover
58165E Clip, Floor Cover
58166A Cover, Front Floor, LH
58166P Clip, Front Floor Cover
58398F Cover, Floor Under, NO.1
58399D Cover, Floor Under, NO.2
58399M Clip, Floor Under Cover, NO.1
58399N Clip, Floor Under Cover, NO.2
58399R Clip, Floor Under Cover, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
