Toyota GR Corolla

2022-10 → present · chassis GZEA14 · catalogue 16E410 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

36 part groups · 2 illustrations

Illustrations

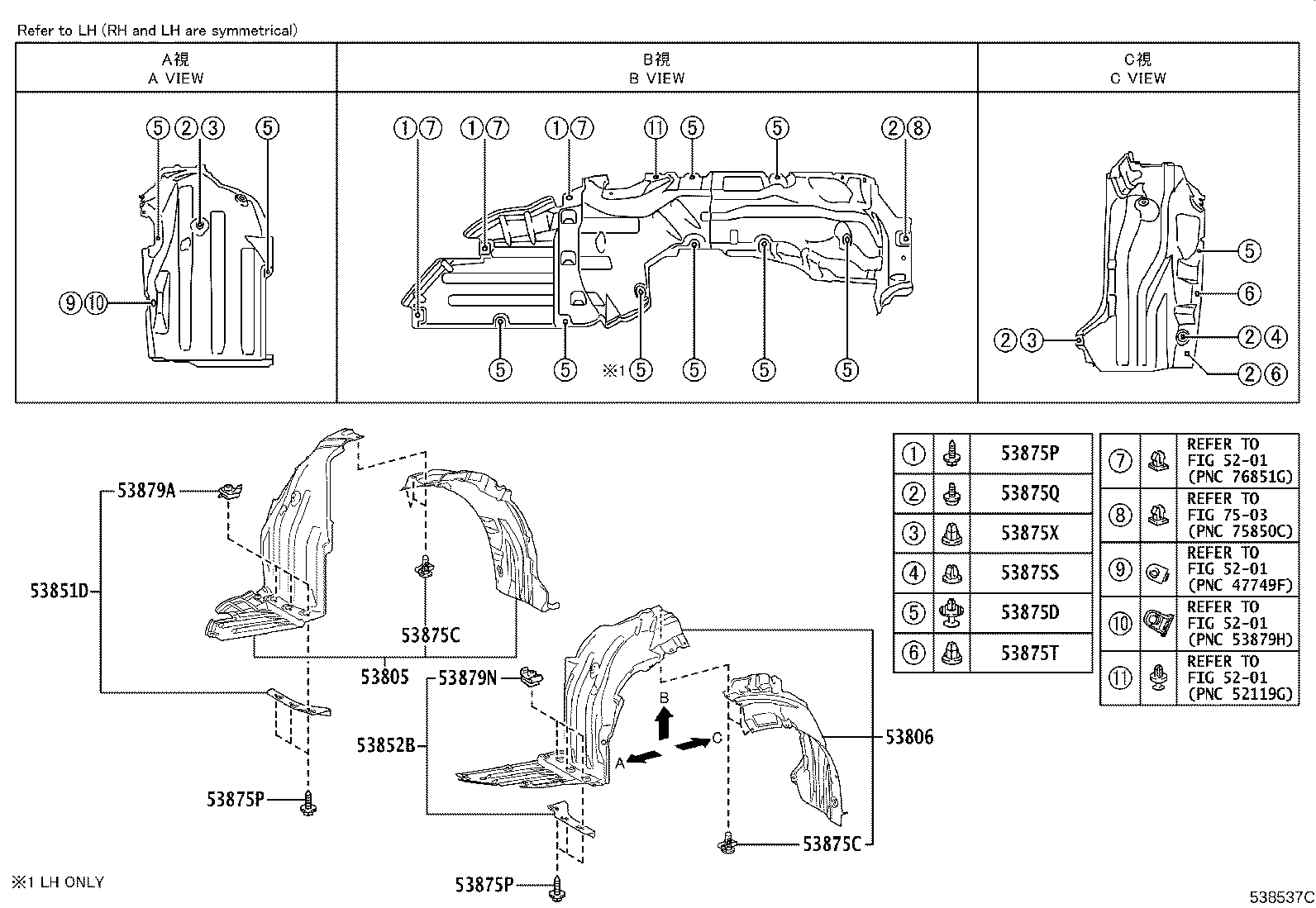

Figure 538536A 538536A 2022-10 → — Figure 538537C 538537C 2022-10 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53326A Clip, Hood Moulding
53336A Bracket, Hood Stay
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53813D Extension, Front Fender
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857 Retainer, Front Wheel Opening Extension, RH
53857B Retainer, Front Wheel Opening Extension, RH
53858B Retainer, Front Wheel Opening Extension, LH
53858H Retainer, Front Wheel Opening Extension, LH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875P Screw, NO.1
53875Q Screw, NO.2
53875S Grommet, NO.1
53875T Grommet, NO.2
53875X Grommet, NO.3
53879A Retainer, Front Fender Liner
53879N Retainer, Front Fender Liner, LH
53883M Seal, Front Fender
75392T Retainer, Outside Moulding, NO.1
76181A Bulge, Hood, RH
76182A Bulge, Hood, LH
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
