Toyota GR Corolla

2022-10 → present · chassis GZEA14 · catalogue 16E410 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

11 part groups · 2 illustrations

Illustrations

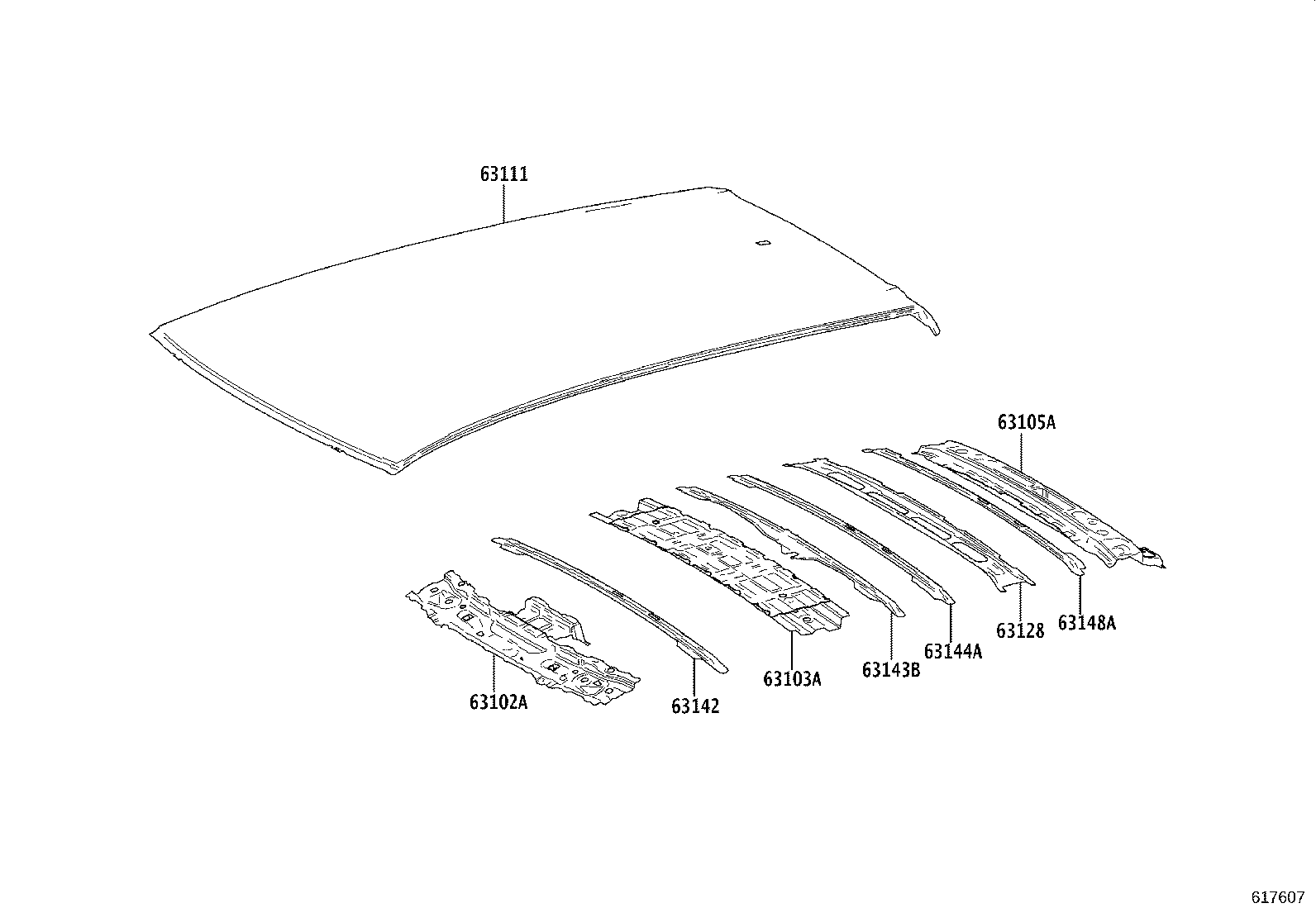

Figure 617608 617608 2022-10 → — Figure 617607 617607 2022-10 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63128 Reinforcement, Roof Panel, NO.6
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63148A Reinforcement, Roof Panel, NO.7
63156A Protector, Roof Panel Reinforcement
63227L Clip, Roof Window
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
