Toyota GR Corolla

2022-10 → present · chassis GZEA14 · catalogue 16E410 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

10 part groups · 2 illustrations

Illustrations

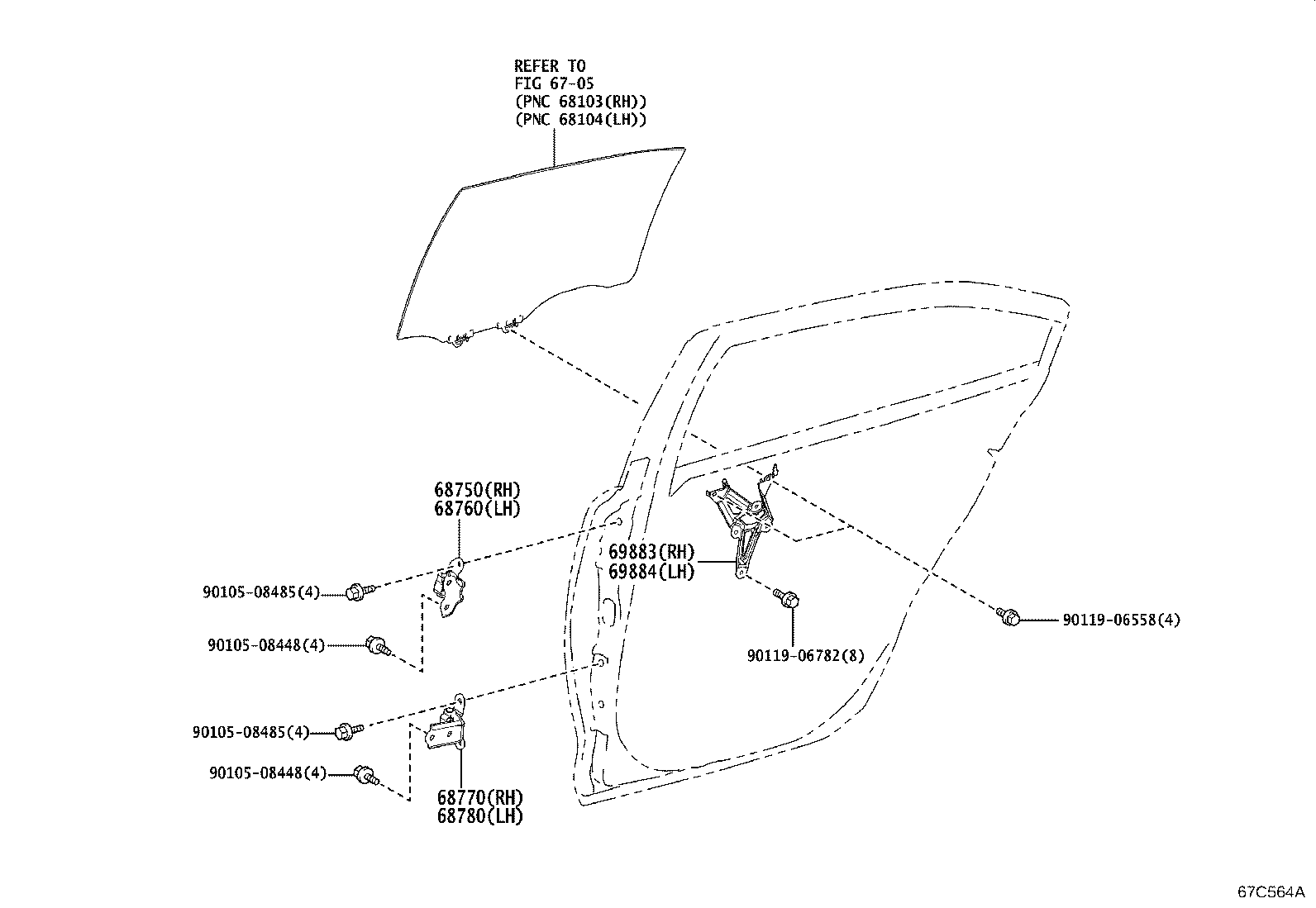

Figure 67C561A 67C561A 2022-10 → — Figure 67C564A 67C564A 2022-12 → —

Part groups

PNCDescription
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69883 Bracket, Rear Door Window Regulator Lift Arm, RH
69884 Bracket, Rear Door Window Regulator Lift Arm, LH
85710F Motor Assy, Power Window Regulator, RH
85720E Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
