Toyota GR Corolla

2022-10 → present · chassis GZEA14 · catalogue 16E410 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

14 part groups · 2 illustrations

Illustrations

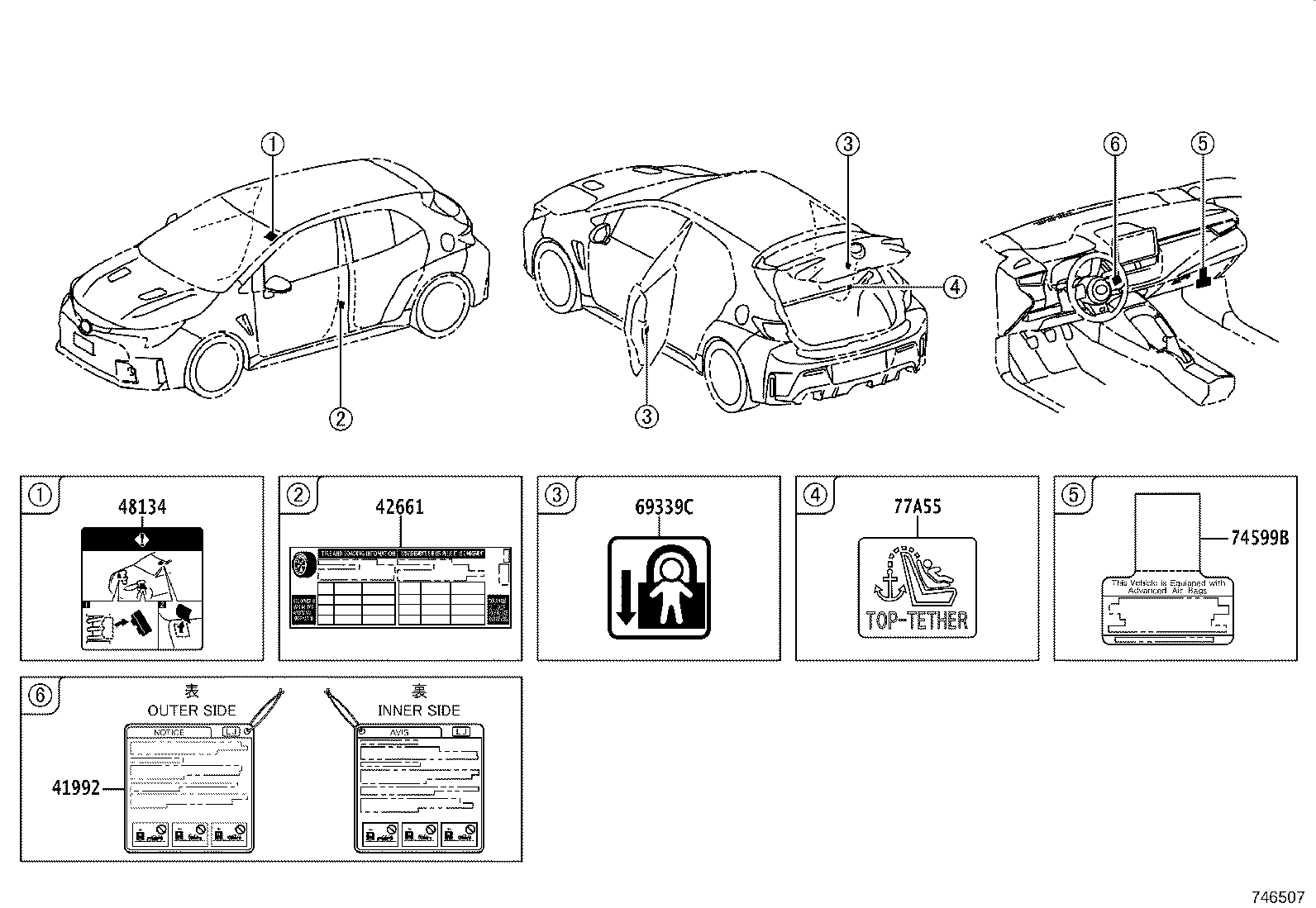

Figure 746506C 746506C 2022-10 → — Figure 746507 746507 2022-10 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11291B Plate, Engine Name
11293D Label, Engine Caution
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
42661 Label, Tire Pressure Information
48134 Label, Front Coil Spring Spacer Notice
69339C Label, Child Protector Information
74559B Label, Fuel Information
74599B Label, Driver & Passenger Airbag Information
77A55 Label, Certification Mark Information
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
