Toyota GR Corolla
2022-10 → present · chassis GZEA14 · catalogue 16E410 · United States
Supported model
Data version 2024-09
Wiring & Clamp

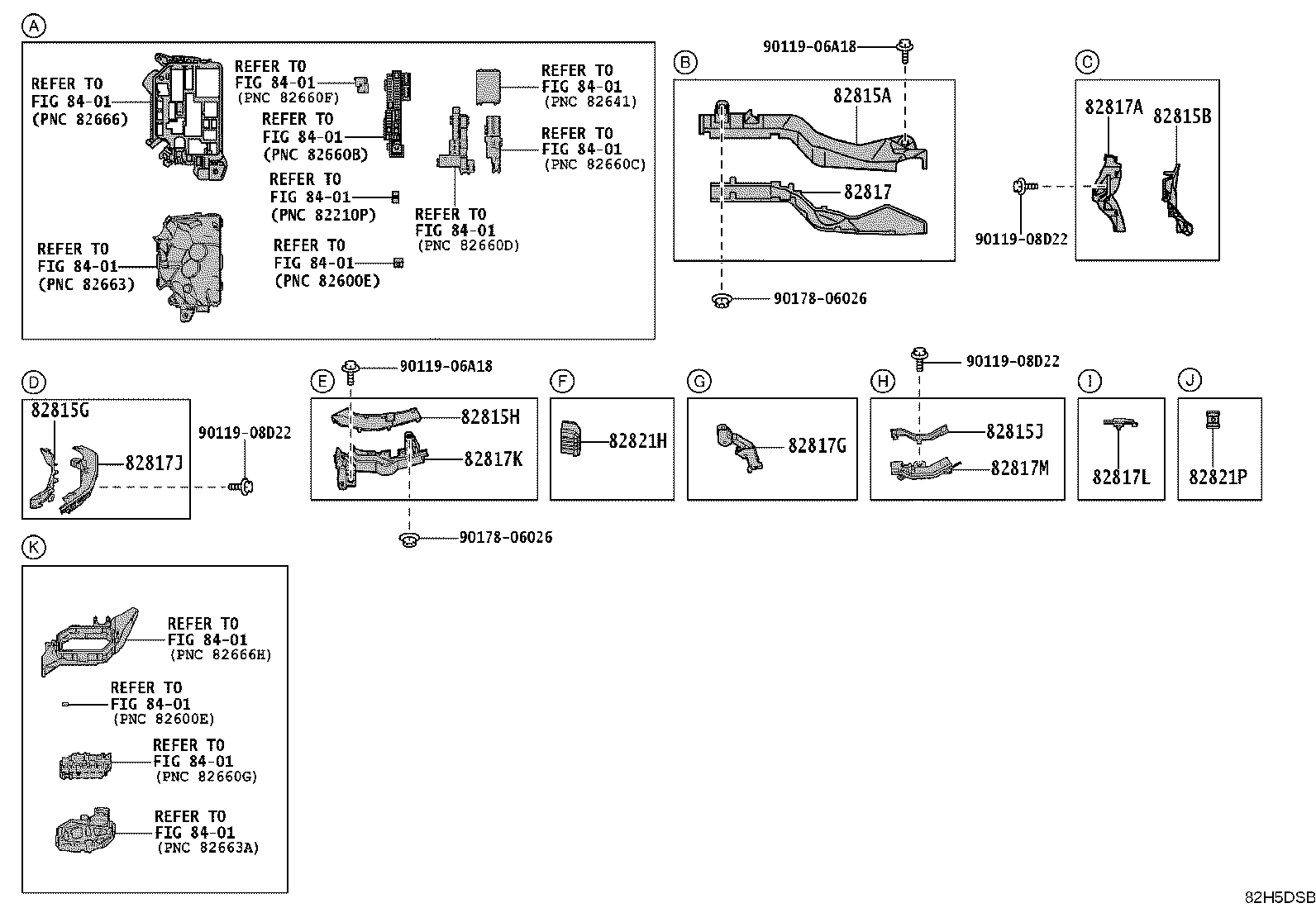

93 part groups · 11 illustrations
Part groups

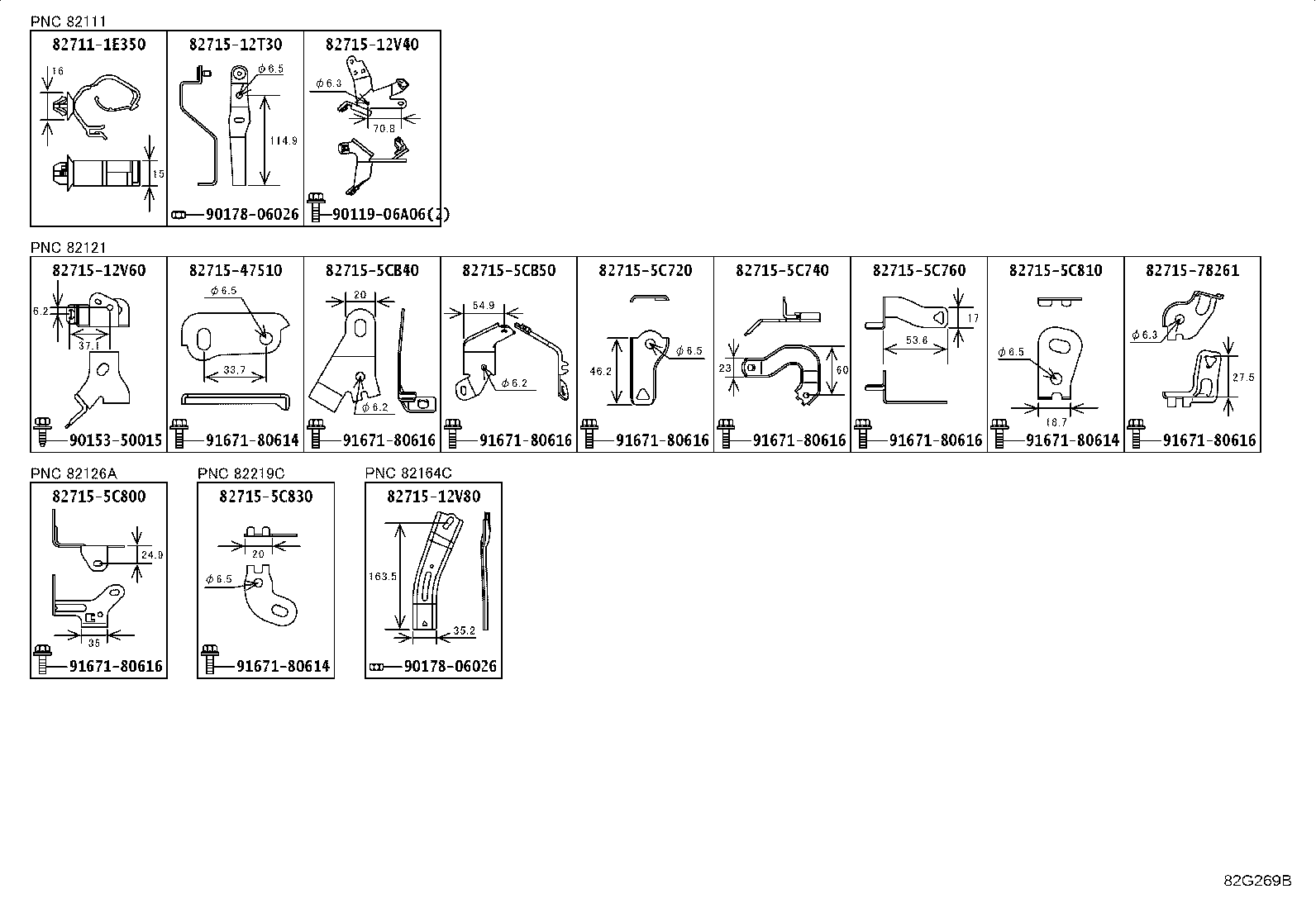

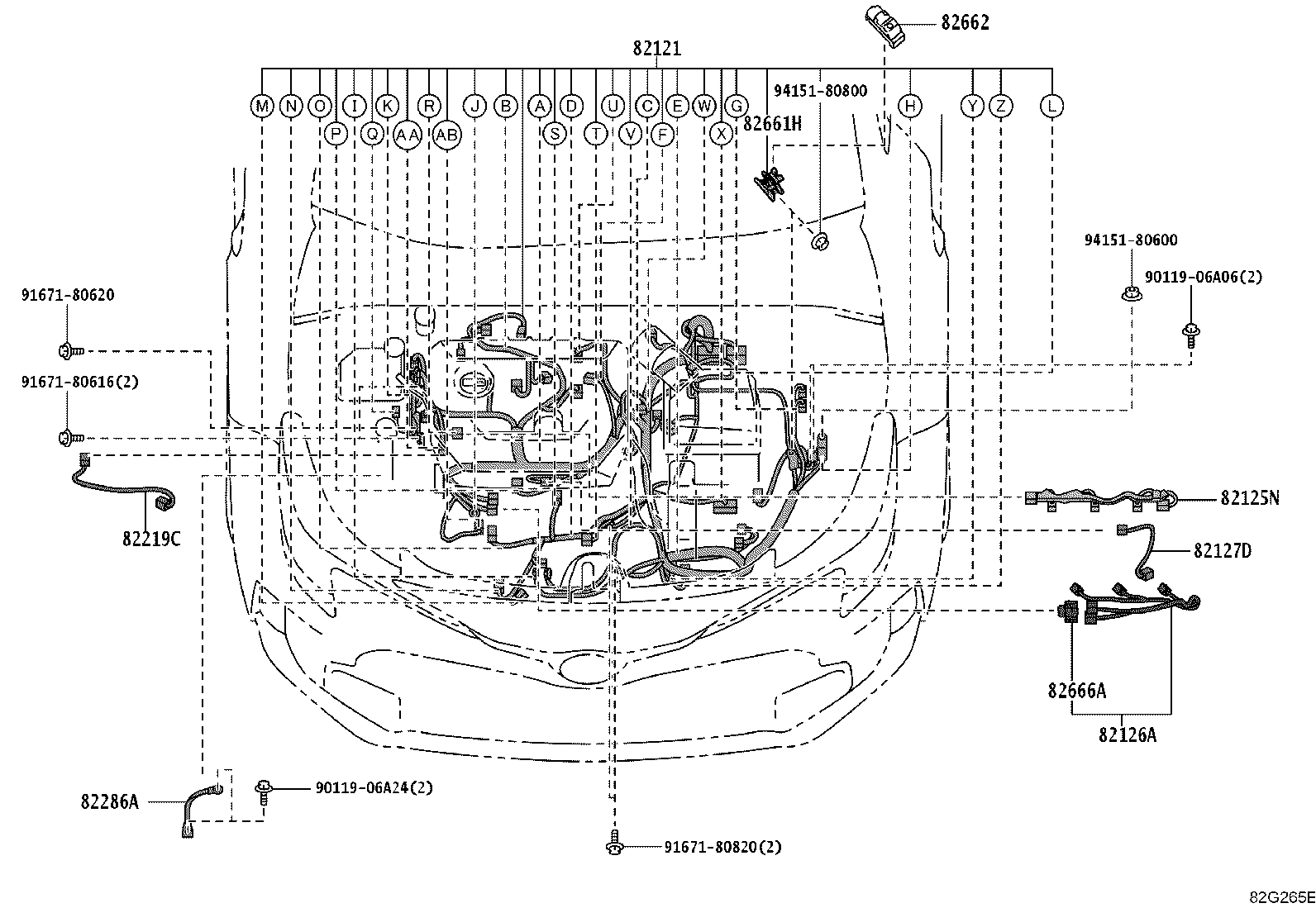

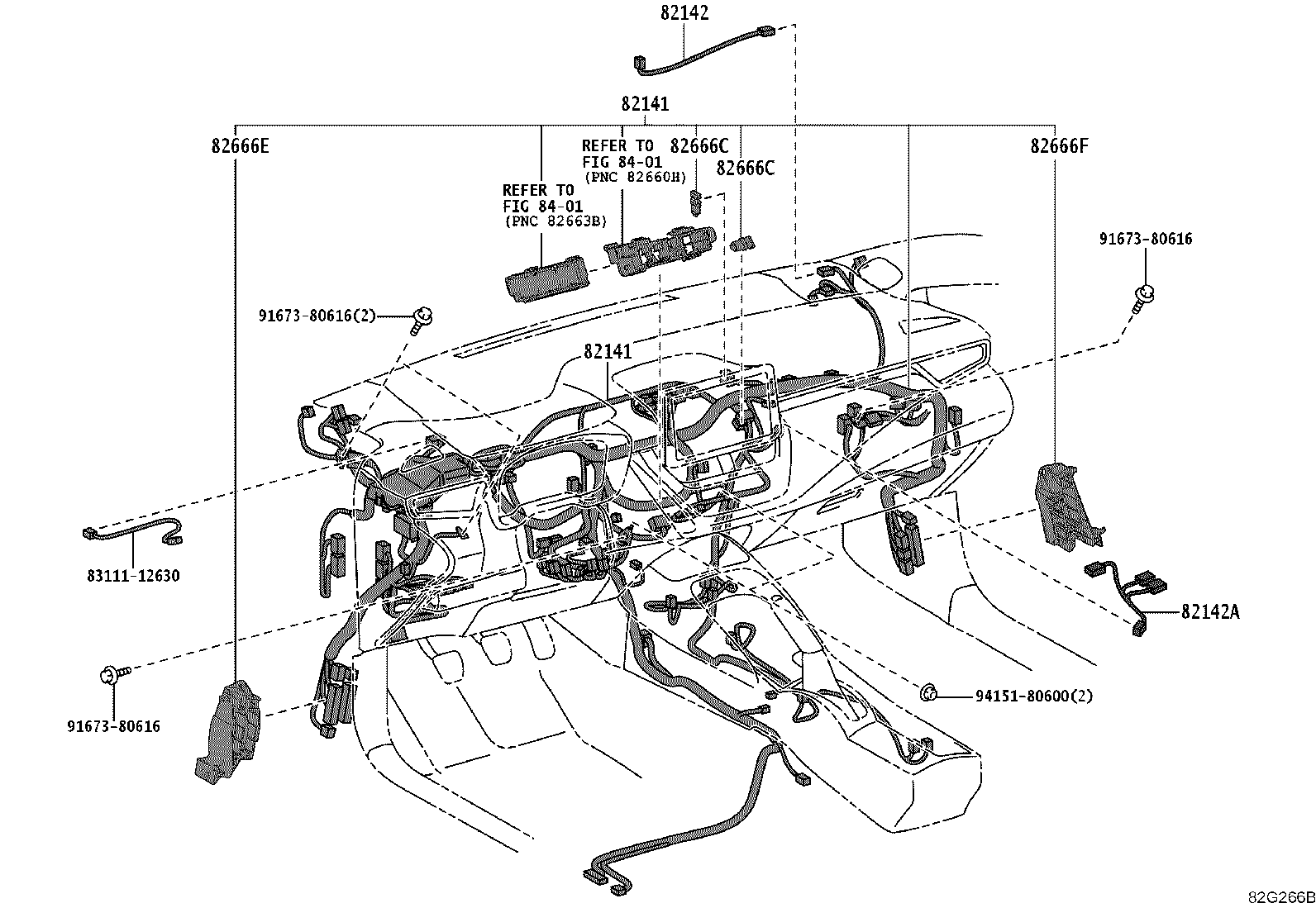

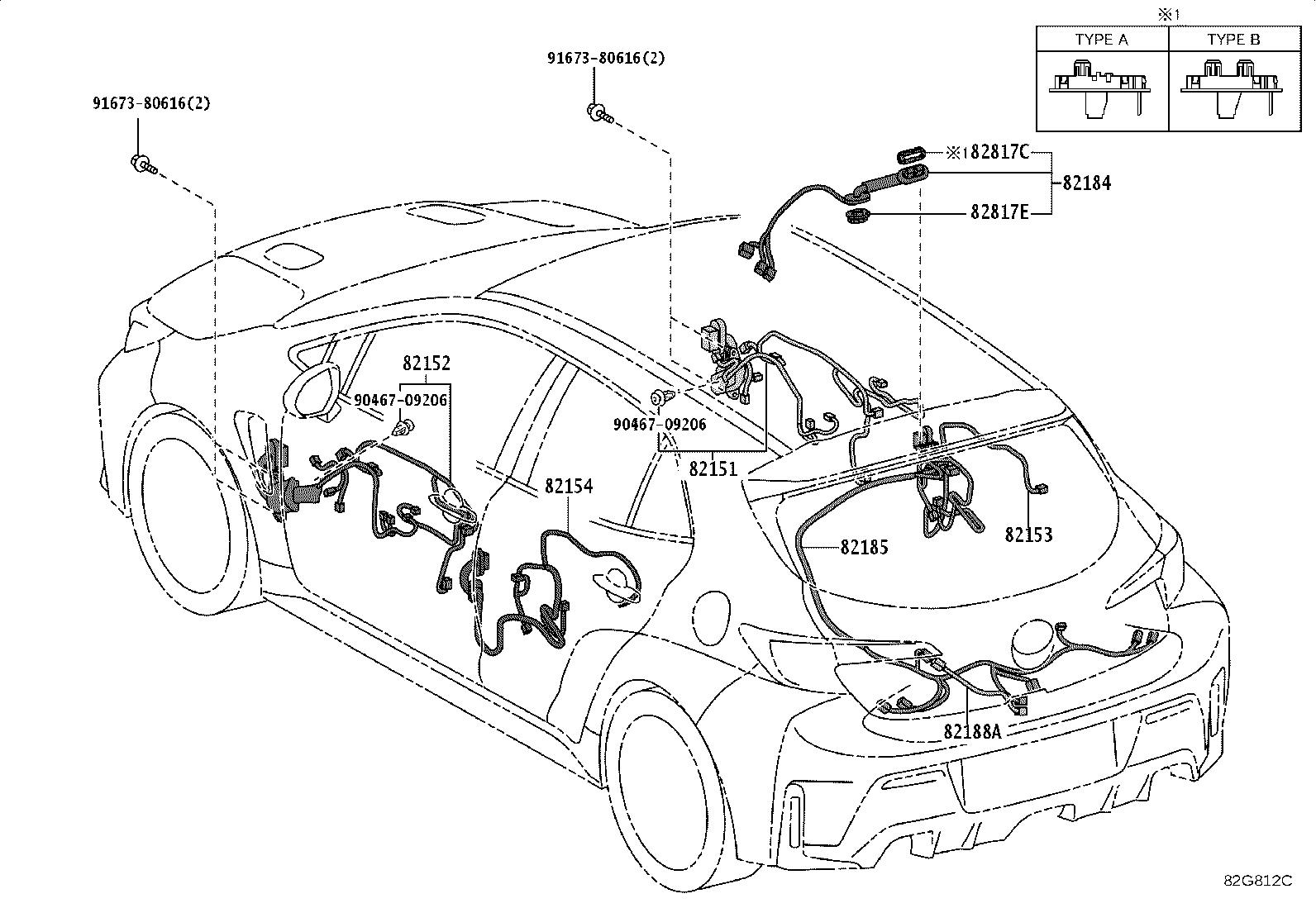

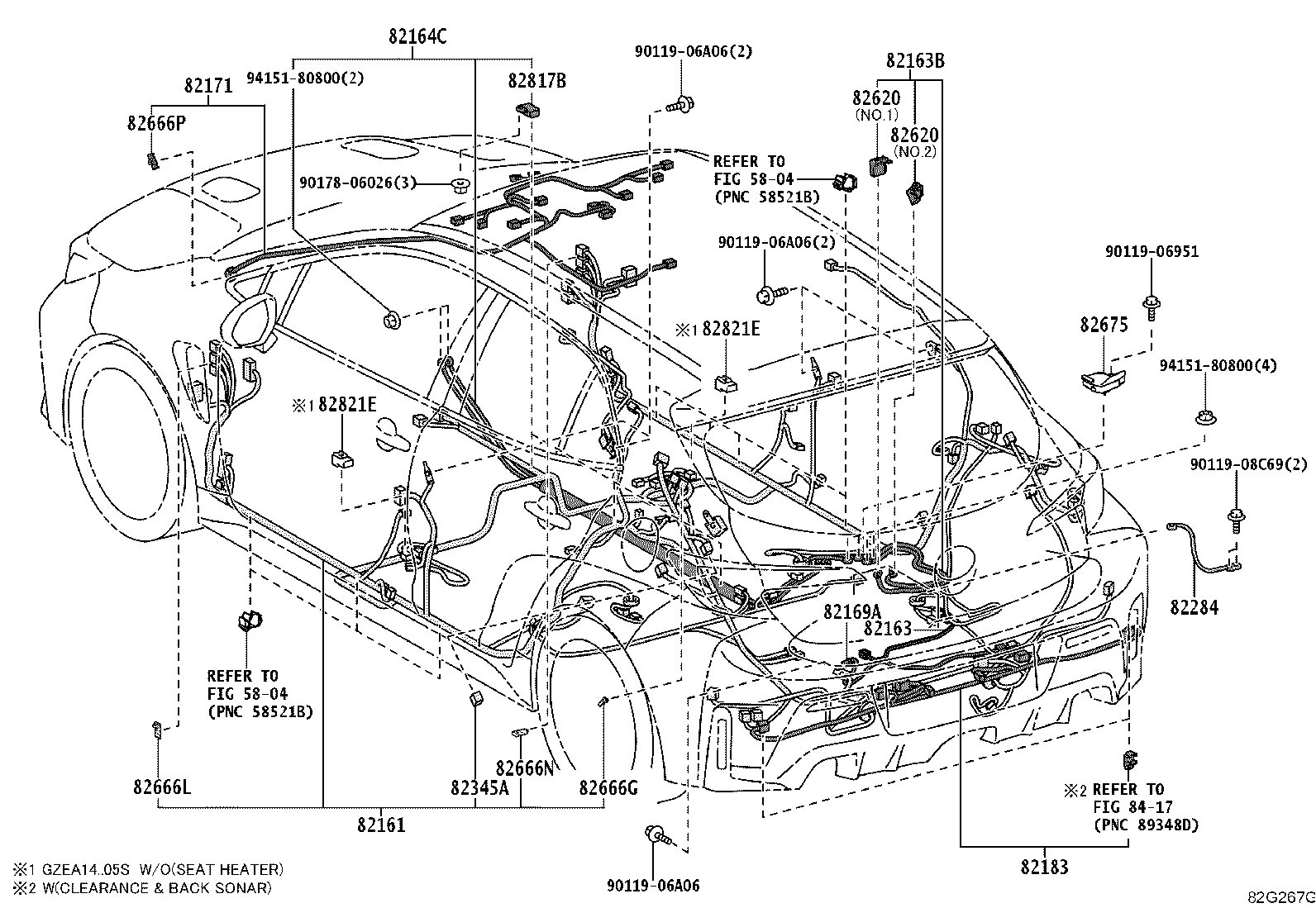

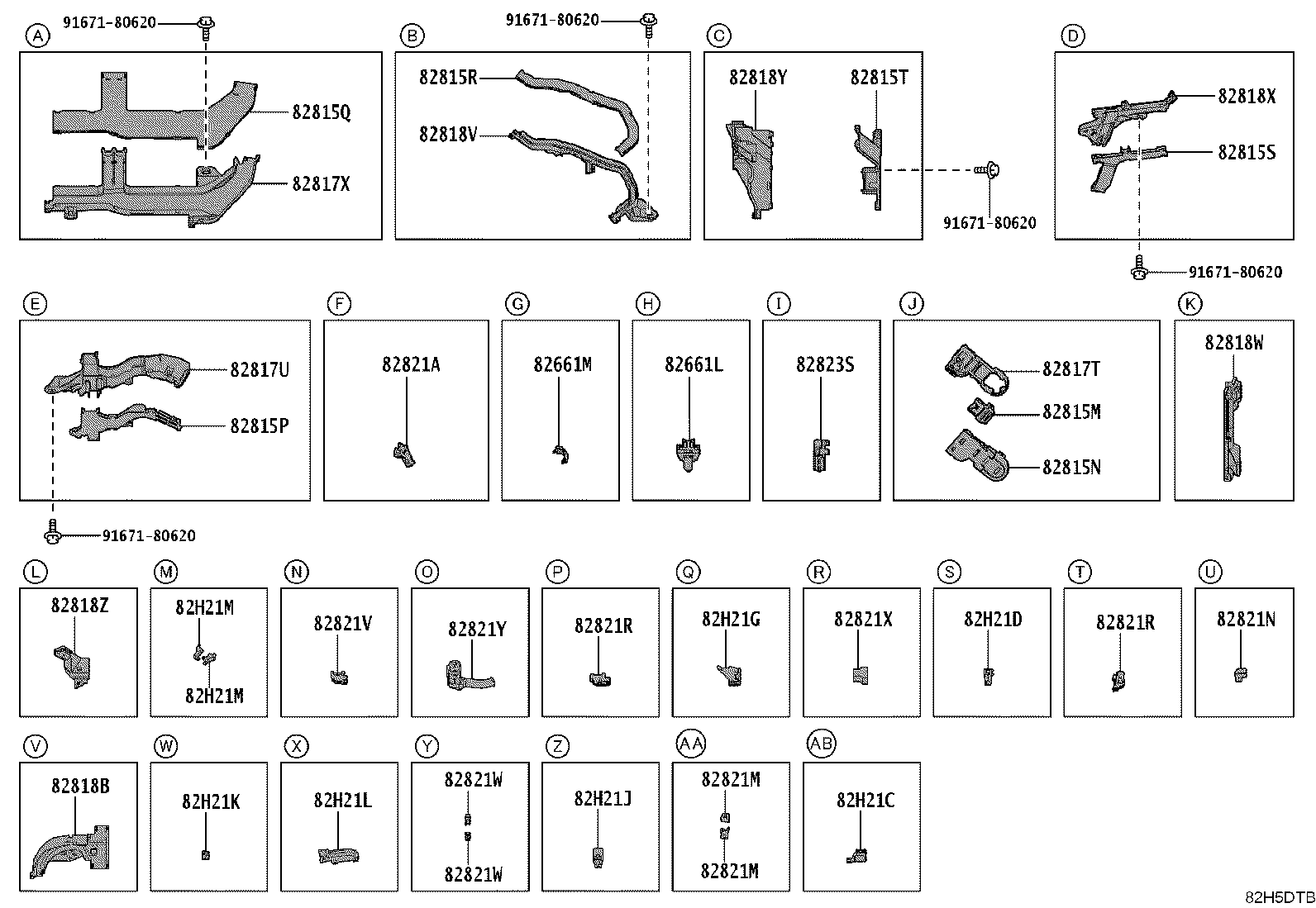

| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82119C | Wire, Engine Room, NO.5 |
| 82121 | Wire, Engine |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |
| 82127D | Wire, Engine, NO.7 |
| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |
| 82163B | Wire, Floor NO.5 |
| 82164C | Wire, Floor, NO.4 |
| 82169A | Wire, Floor, NO.6 |
| 82171 | Wire, Roof, NO.1 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82188A | Wire, Back Door, NO.3 |
| 82191 | Wire, Front Seat, RH |
| 82219C | Wire, Sensor |
| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82345A | Diode |
| 82620 | Block Assy, Fusible Link |
| 82661H | Cover, Relay Block |
| 82661L | Cover, Relay Block, NO.2 |
| 82661M | Cover, Relay Block, NO.3 |
| 82662 | Cover, Relay Block, Upper |
| 82666A | Holder, Connector NO.2 |
| 82666C | Holder, Connector NO.4 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82675 | Terminal, Junction |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818V | Protector, Wiring Harness, NO.18 |
| 82818W | Protector, Wiring Harness, NO.19 |
| 82818X | Protector, Wiring Harness, NO.20 |
| 82818Y | Protector, Wiring Harness, NO.21 |
| 82818Z | Protector, Wiring Harness, NO.22 |

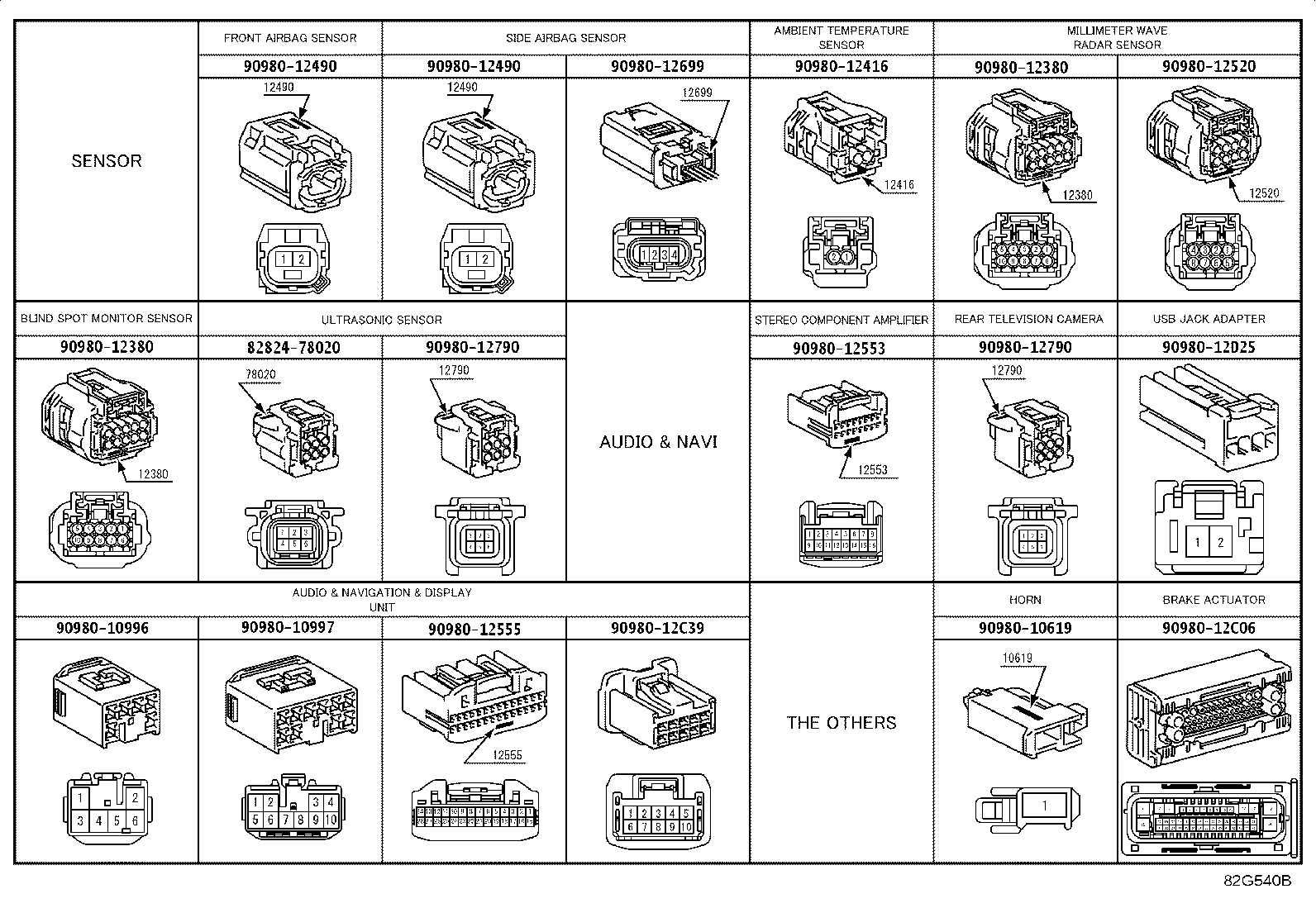

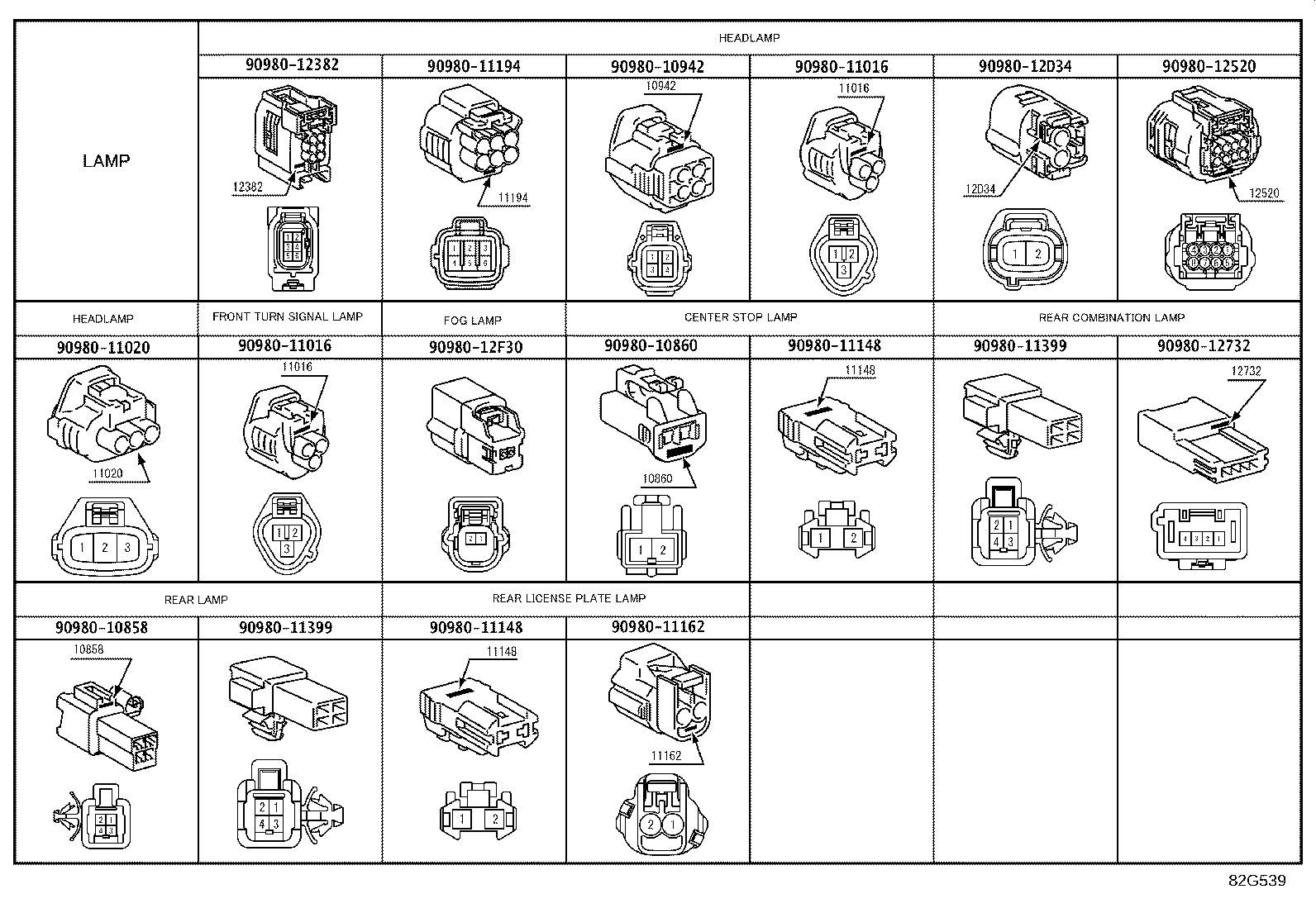

| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82821R | Cover, Connector |
| 82821V | Cover, Connector |
| 82821W | Cover, Connector |
| 82821X | Cover, Connector |
| 82821Y | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82H21C | Cover, Connector |
| 82H21D | Cover, Connector |
| 82H21G | Cover, Connector |
| 82H21J | Cover, Connector |
| 82H21K | Cover, Connector |
| 82H21L | Cover, Connector |
| 82H21M | Cover, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
