Toyota Corolla FX

1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

27 part groups · 2 illustrations

Illustrations

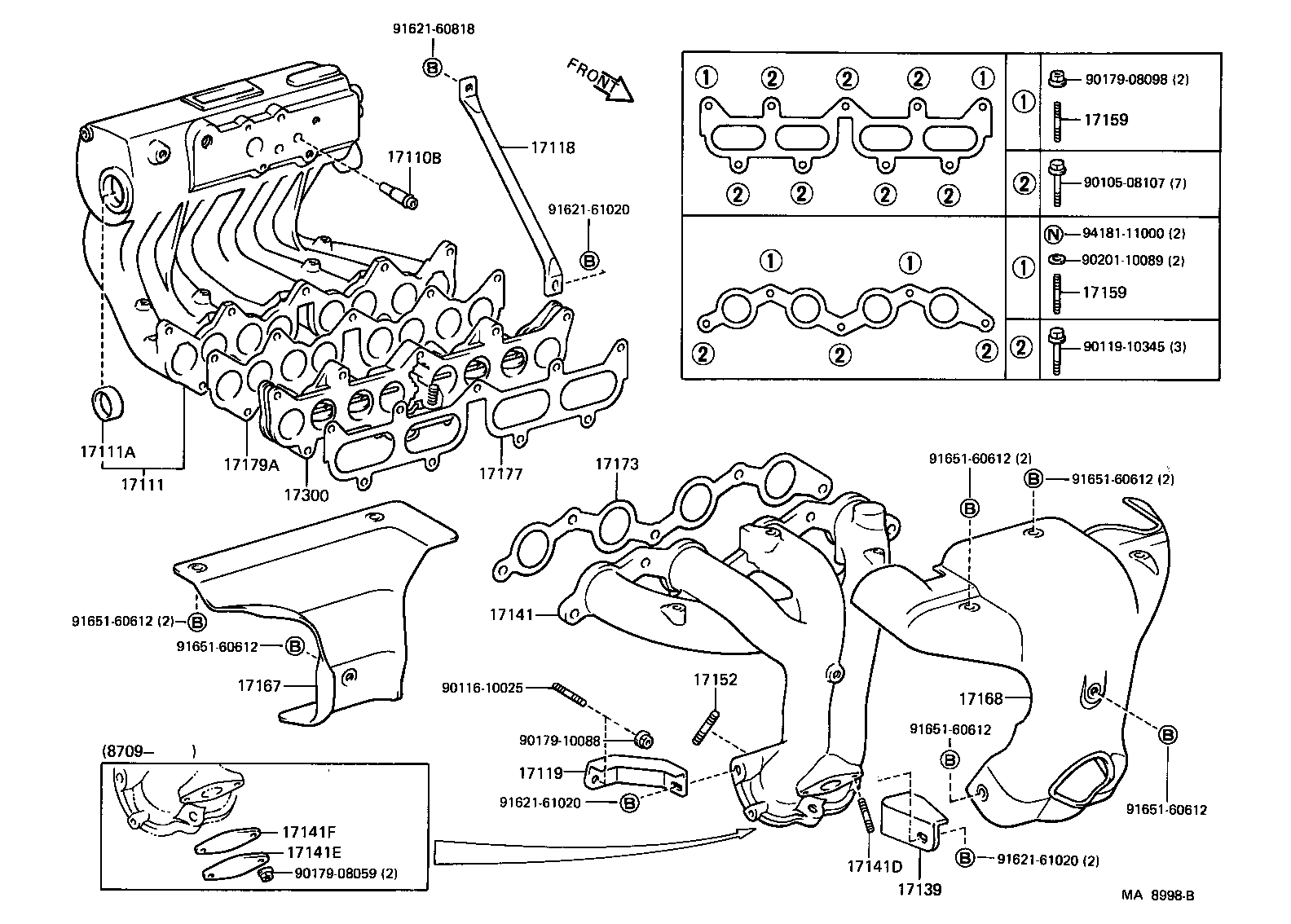

Figure MA9480 MA9480 1987-02 → — Figure MA8998B MA8998B 1986-09 → —

Part groups

PNCDescription
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141C Plug, W/Head Straight Screw
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17233 Counter Weight
17233A Spring, Spiral, NO.1(FOR COUNTER WEIGHT)
17233B Spring, Spiral, NO.2(FOR COUNTER WEIGHT)
17233C Bolt(FOR COUNTER WEIGHT)
17233D Shim(FOR COUNTER WEIGHT)
17233E Ring, E(FOR COUNTER WEIGHT)
17300 Valve Assy, Intake Air Control
