Toyota Corolla FX

1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

22 part groups · 2 illustrations

Illustrations

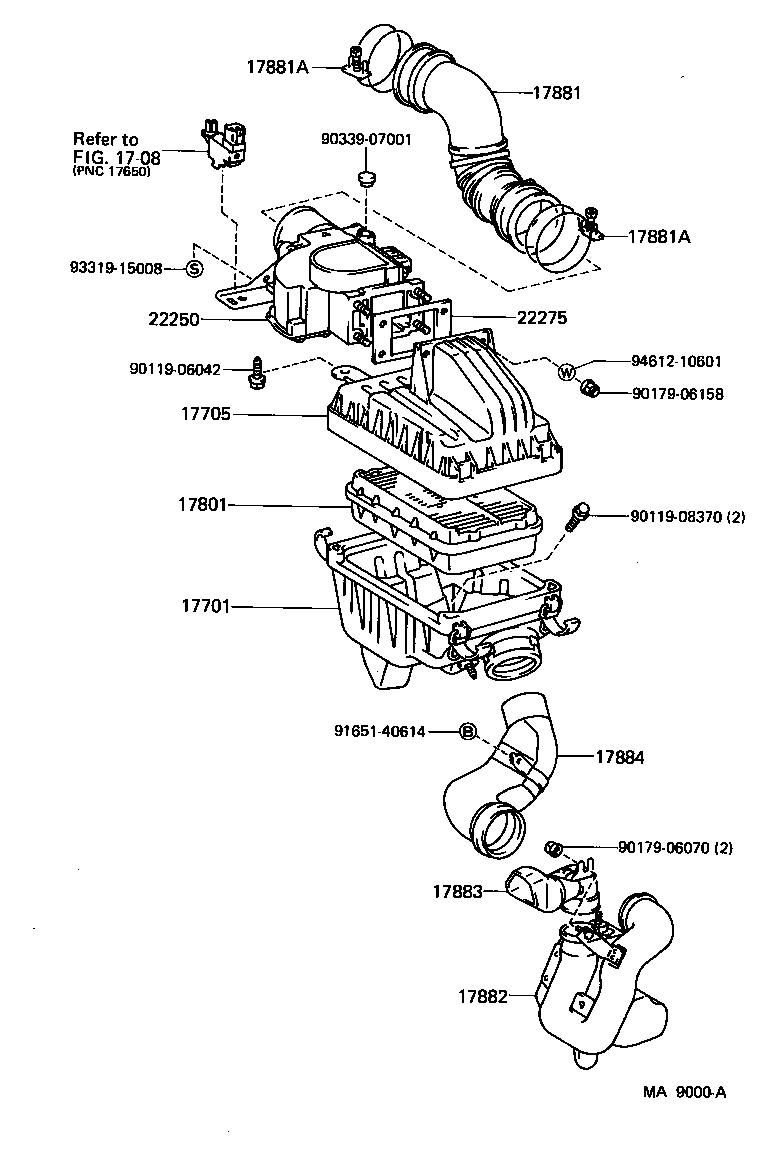

Figure MA9462 MA9462 1987-02 → — Figure MA9000A MA9000A 1986-09 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17728 Valve, Thermostatic
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
25710D Valve Assy, Air Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
