Toyota Corolla FX
1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States
Discontinued model
Data version 1988-08

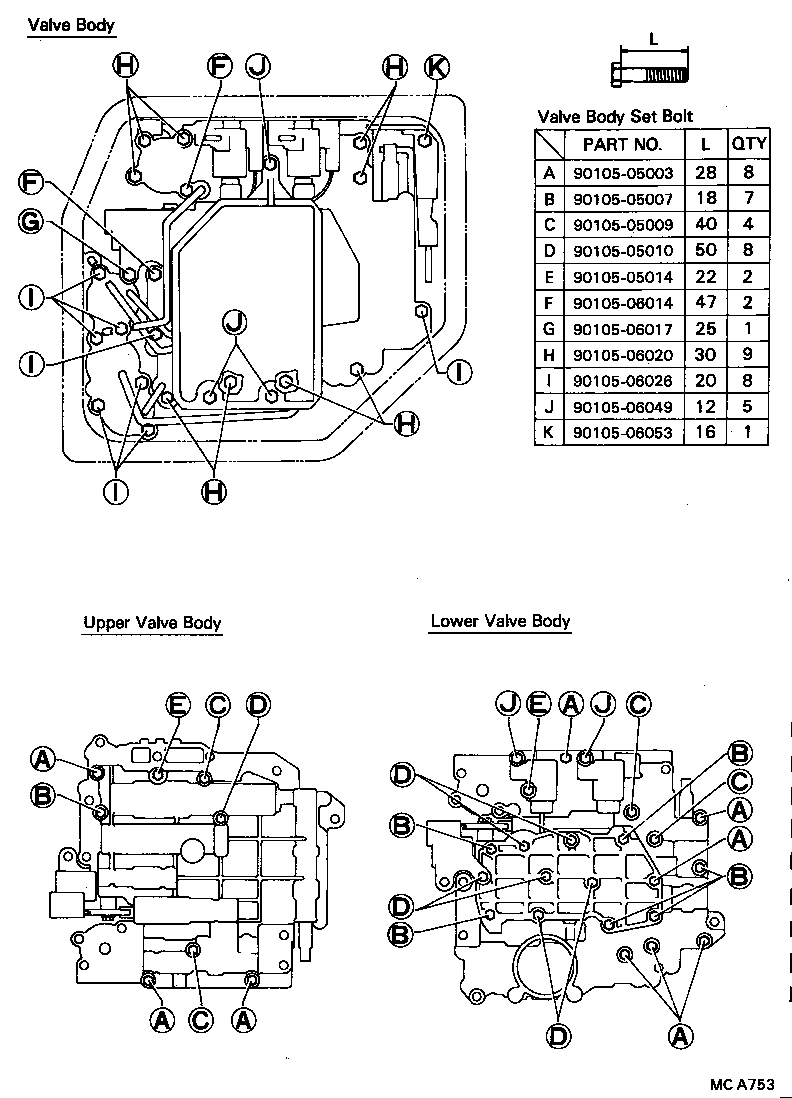

Valve Body & Oil Strainer (ATM)
94 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 35156A | Plate, Transmission Case, NO.2 |
| 35156B | Bolt(FOR TRANSMISSION CASE NO.2 PLATE) |
| 35156C | Screw(FOR TRANSMISSION CASE NO.2 PLATE) |
| 35158 | Gasket, Transmission Case, NO.2 Plate |

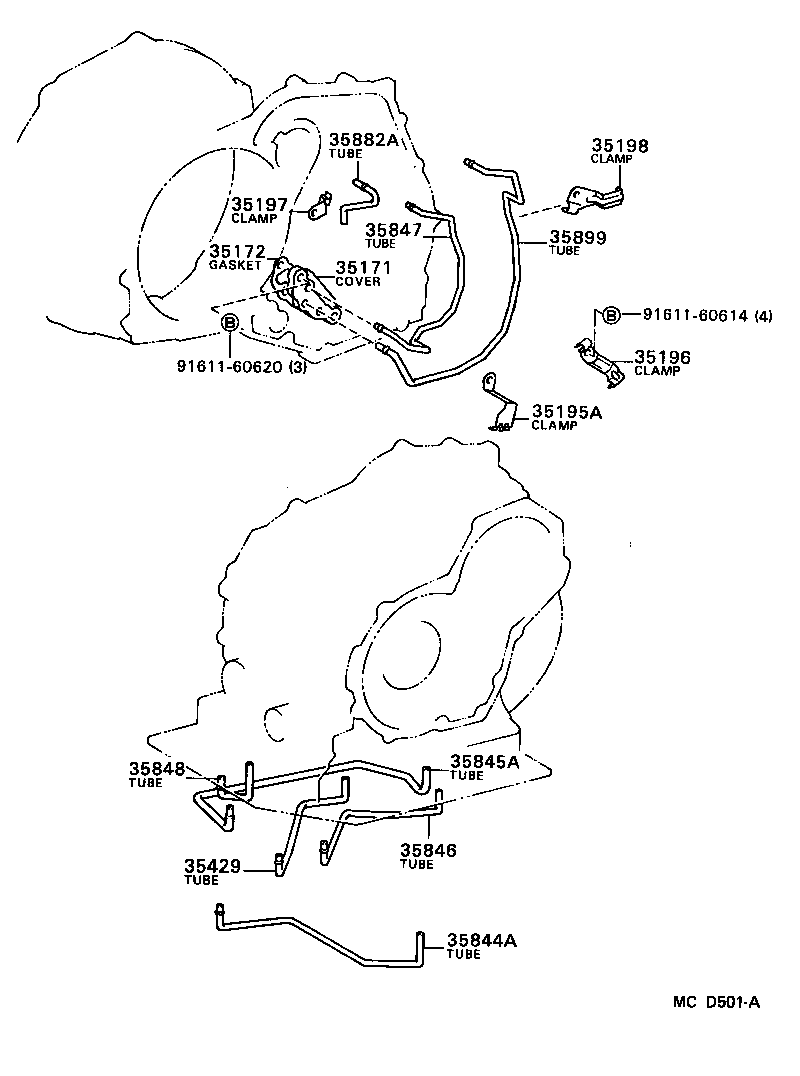

| 35171 | Cover, Transaxle Housing |
| 35172 | Gasket, Transaxle Housing Cover |
| 35195A | Clamp, Transaxle Apply Tube, NO.1 |
| 35196 | Clamp, Transaxle Apply Tube, NO.2 |
| 35197 | Clamp, Transaxle Apply Tube, NO.3 |
| 35198 | Clamp, Transaxle Apply Tube, NO.4 |
| 35211A | Pin, Straight (FOR LOCK UP SIGNAL VALVE) |
| 35211B | Spring, Compression (FOR LOCK UP SIGNAL VALVE) |
| 35211C | Key, Straight (FOR LOCK UP SIGNAL VALVE) |
| 35212B | Spring, Compression (FOR LOCK UP RELAY VALVE) |
| 35213B | Key, Straight (FOR LOCK UP CONTROL VALVE) |
| 35215 | Sleeve, Lock UP Relay Valve |
| 35215B | Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE) |
| 35216 | Stopper, Valve Sleeve |
| 35218A | Key, Straight (FOR LOCK UP RELAY VALVE PLUG) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339 | Gasket, Oil Strainer |
| 35410 | Body Assy, Transmission Valve |
| 35412A | Body, Manual Valve |
| 35415G | Key, Straight (FOR PRIMARY REGULATOR VALVE) |
| 35415H | Spring, Compression (FOR PRIMARY REGULATOR VALVE) |
| 35415J | Washer (FOR PRIMARY REGULATOR VALVE) |
| 35415P | Ring, E (FOR PRIMARY REGULATOR VALVE) |
| 35417B | Pin, Straight (FOR PRIMARY REGULATOR VALVE SLEEVE) |
| 35418A | Pin, Straight (FOR MANUAL VALVE) |
| 35419A | Spring, Compression (FOR CHECK VALVE) |

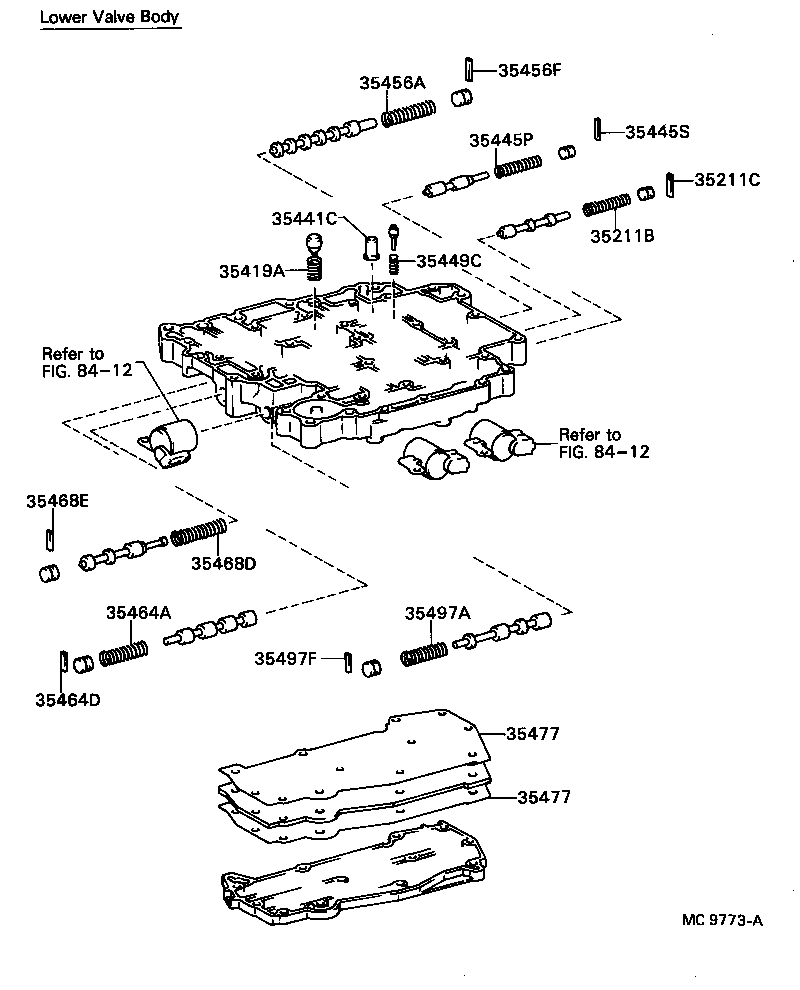

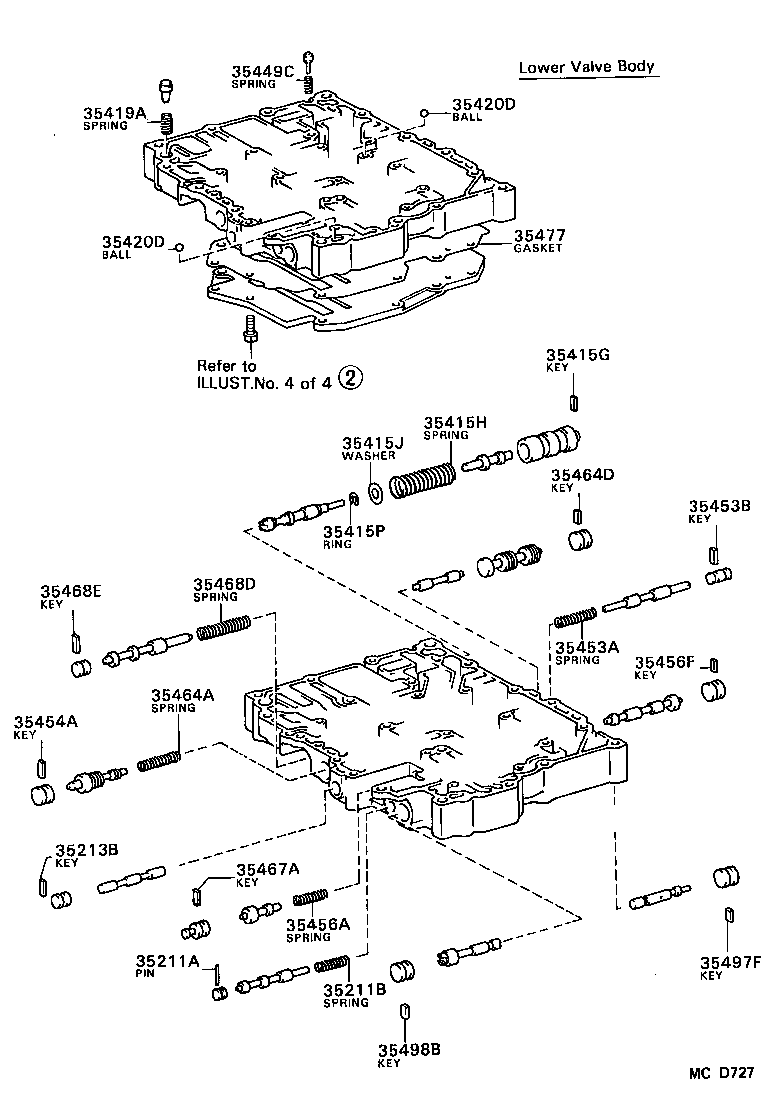

| 35420D | Ball (FOR LOWER VALVE BODY) |
| 35422F | Stopper, Valve Vibrating |
| 35423A | Spring, Compression (FOR B-2 ACCUMULATOR PISTON) |
| 35423B | Ring, O (FOR B-2 ACCUMULATOR PISTON) |
| 35424D | Spring, Compression (FOR C-1 ACCUMULATOR PISTON) |
| 35424E | Ring, O (FOR C-1 ACCUMULATOR PISTON) |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35426E | Spring, Compression (FOR C-3 ACCUMULATOR PISTON) |
| 35426F | Ring, O (FOR C-3 ACCUMULATOR PISTON) |
| 35427A | Spring, Compression (FOR B-4 ACCUMULATOR PISTON) |
| 35427B | Ring, O (FOR B-4 ACCUMULATOR PISTON) |
| 35429 | Tube, Line Pressure |

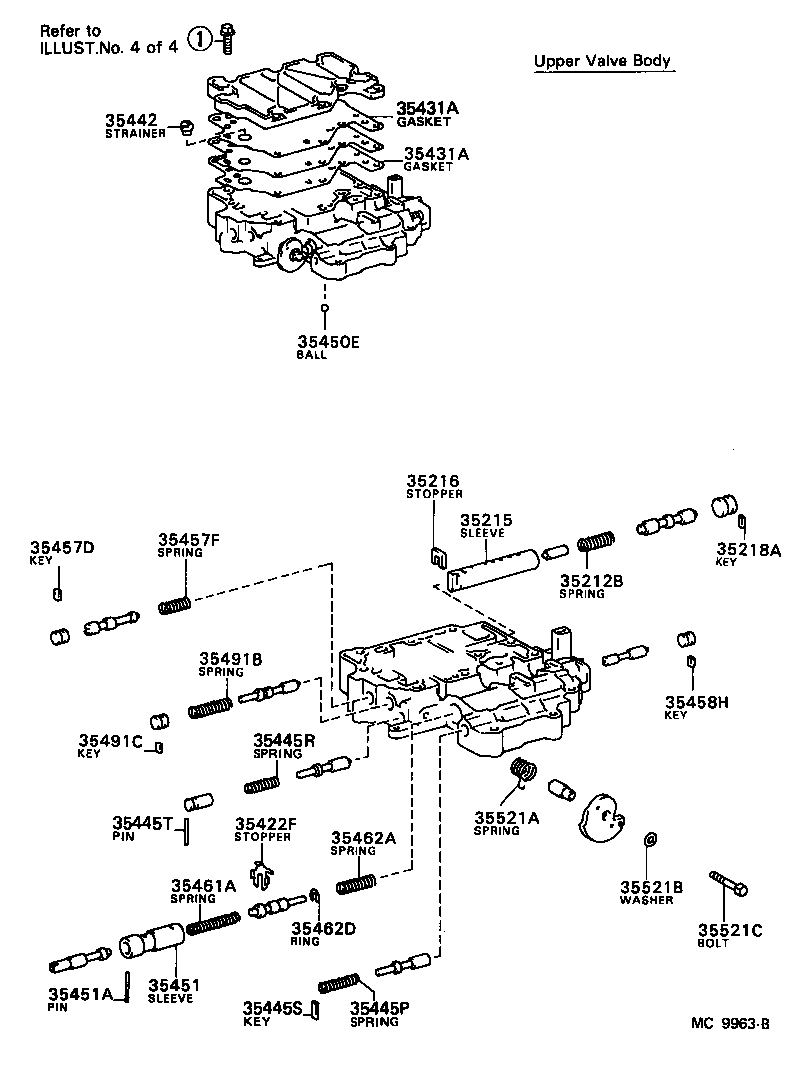

| 35431A | Gasket, Upper Valve Body Cover |
| 35432 | Plate, Valve Body, NO.1 |
| 35433 | Gasket, Valve Body, NO.1 |
| 35434 | Gasket, Valve Body, NO.2 |
| 35441C | Strainer, Solenoid Oil |
| 35442 | Strainer, Throttle Modulator Oil |
| 35445P | Spring, Compression (FOR 2ND COAST MODULATOR VALVE) |
| 35445R | Spring, Compression (FOR LOW COAST MODULATOR VALVE) |
| 35445S | Key, Straight (FOR 2ND COAST MODULATOR VALVE) |
| 35445T | Pin, Straight (FOR LOW COAST MODULATOR VALVE) |
| 35449C | Spring, Compression (FOR VALVE PRESSURE RELIEF) |

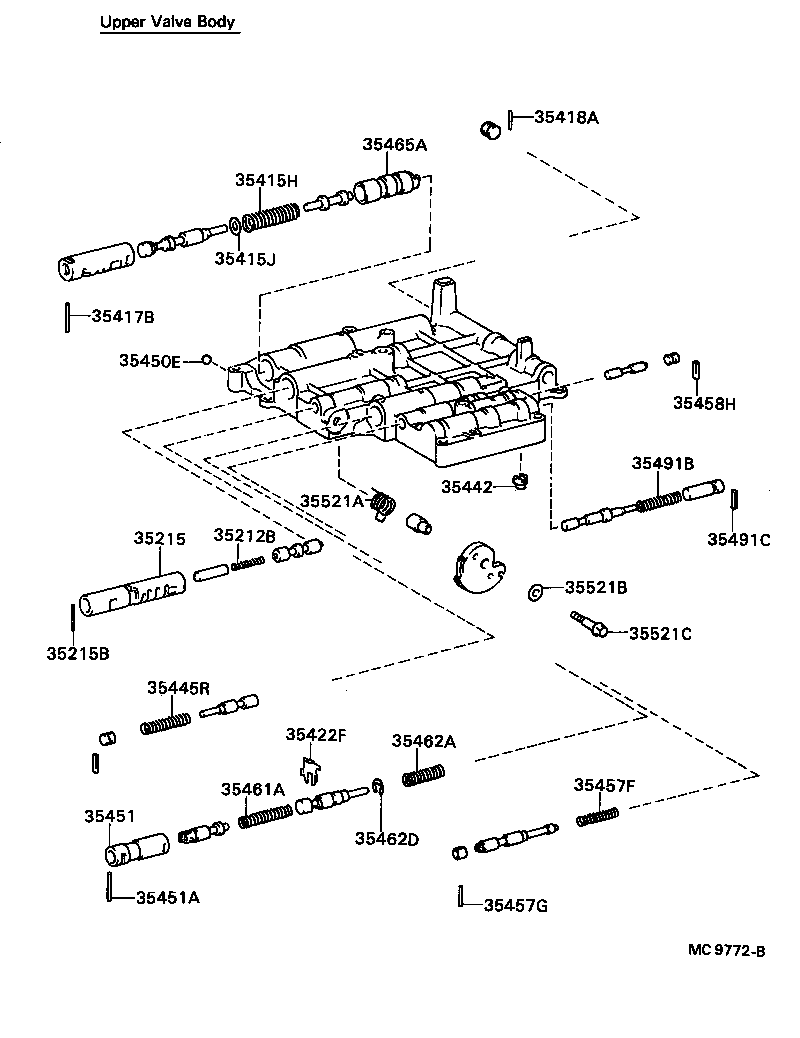

| 35450E | Ball (FOR UPPER VALVE BODY) |
| 35451 | Sleeve, Throttle Valve |
| 35451A | Pin, Straight (FOR THROTTLE VALVE SLEEVE) |
| 35453A | Spring, Compression (FOR DETENT REGULATOR VALVE) |
| 35453B | Key, Straight (FOR DETENT REGULATOR VALVE) |
| 35454A | Key, Straight (FOR LOW COAST SHIFT VALVE) |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35456F | Key, Straight (FOR 2-3 SHIFT VALVE) |
| 35457D | Key, Straight (FOR THROTTLE MODULATOR VALVE) |
| 35457F | Spring, Compression (FOR THROTTLE MODULATOR VALVE) |
| 35457G | Pin, Straight (FOR THROTTLE MODULATOR VALVE) |
| 35458H | Key, Straight (FOR CUT BACK VALVE) |
| 35461A | Spring, Compression (FOR DOWN SHIFT PLUG) |
| 35462A | Spring, Compression (FOR THROTTLE VALVE) |
| 35462D | Ring, E (FOR THROTTLE VALVE) |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35464D | Key, Straight (FOR 1-2 SHIFT VALVE) |
| 35465A | Sleeve, Primary Regulator Valve Plunger |
| 35467A | Key, Straight (FOR INTERMEDIATE SHIFT VALVE) |
| 35468D | Spring, Compression (FOR SECONDARY REGULATOR VALVE) |
| 35468E | Key, Straight (FOR SECONDARY REGULATOR VALVE) |
| 35477 | Gasket, Valve Body Cover |
| 35478 | Gasket, Accumulator Cover |
| 35491B | Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35491C | Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35497A | Spring, Compression (FOR 3-4 SHIFT VALVE) |
| 35497F | Key, Straight (FOR 3-4 SHIFT VALVE) |
| 35498B | Key, Straight (FOR 3-4 COAST SHIFT VALVE) |
| 35521A | Spring (FOR THROTTLE VALVE CAM RETURN) |
| 35521B | Washer (FOR THROTTLE VALVE CAM SET) |
| 35521C | Bolt (FOR THROTTLE VALVE CAM SET) |
| 35844A | Tube, Accumulator Back Pressure, NO.1 |
| 35845 | Tube, RR Clutch Accumulator |
| 35845A | Tube, Direct Clutch Accumulator |
| 35846 | Tube, Brake Accumulator |
| 35847 | Tube, Transmission Lube Apply |
| 35848 | Tube, Forward Clutch Accumulator |
| 35862 | Bracket, Accumulator Apply Tube |
| 35882A | Tube, Differential Gear Lube Apply |
| 35899 | Tube, Governor Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
