Toyota Corolla FX
1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States
Discontinued model
Data version 1988-08

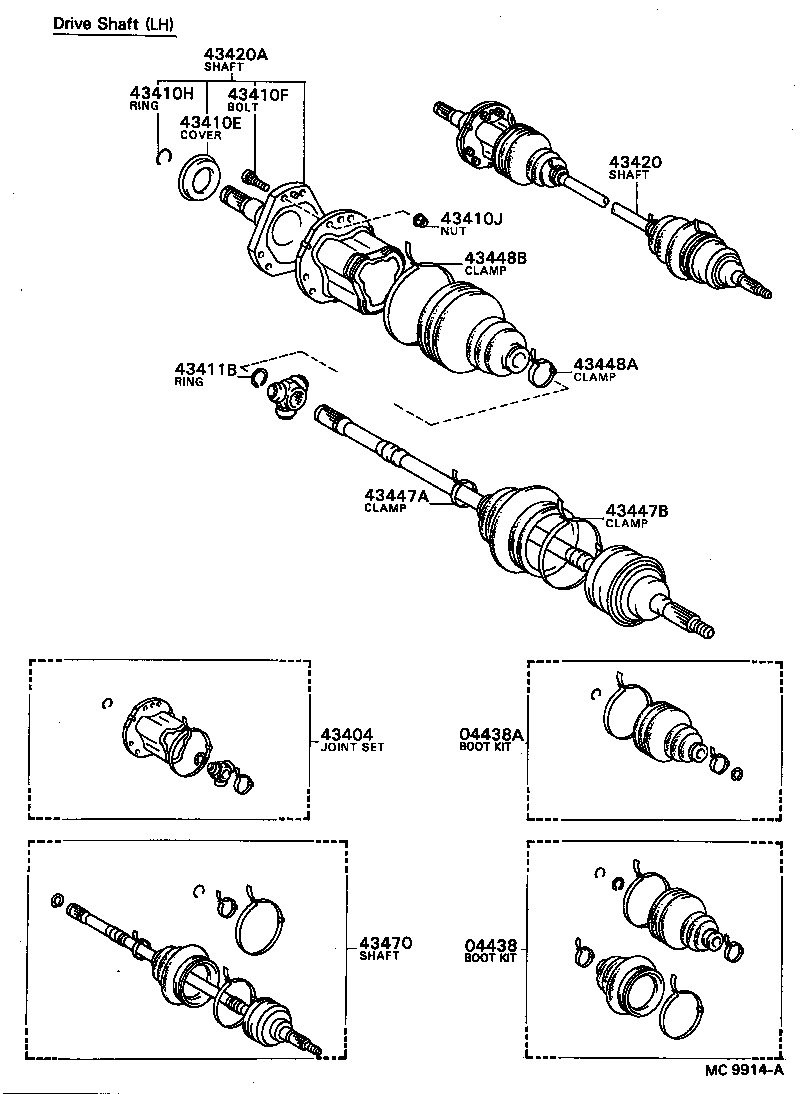

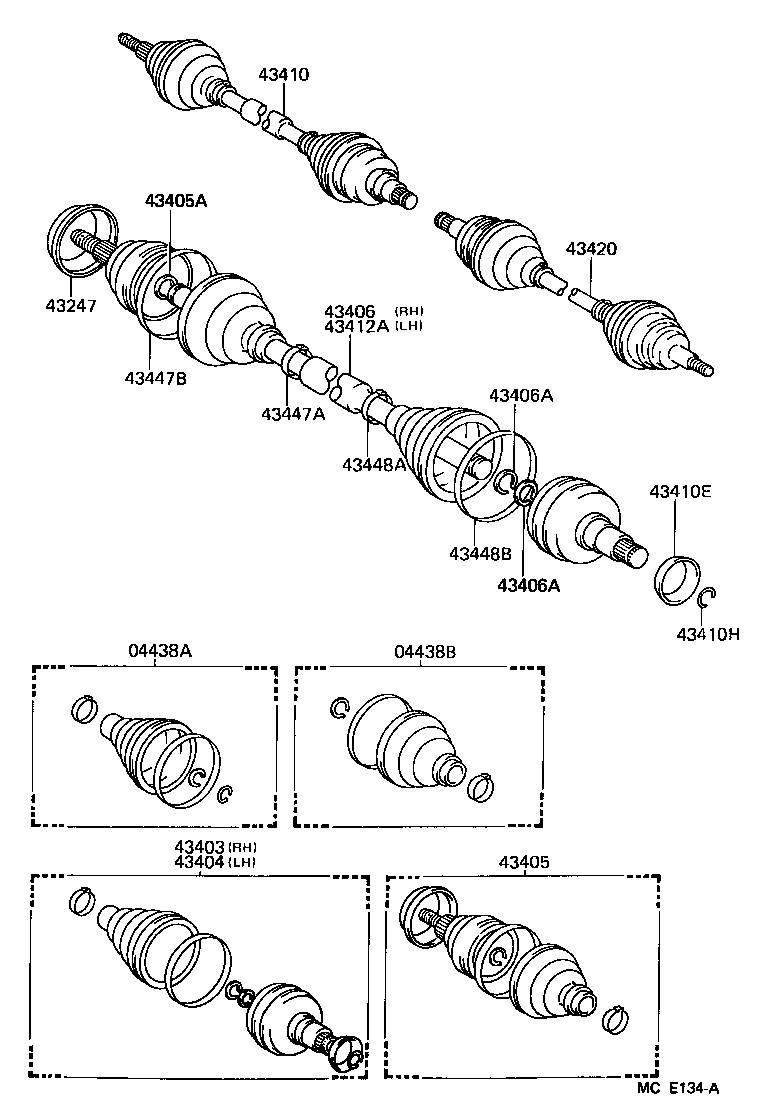

Front Drive Shaft
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04438 | Boot Kit, Front Drive Shaft |
| 04438A | Boot Kit, Front Drive Shaft Inboard Joint |
| 04438B | Boot Kit, Front Drive Shaft Outboard Joint |
| 43247 | Deflector, Front Wheel Bearing Dust, NO.2 |
| 43403 | Joint Set, Front Axle Inboard, RH |
| 43404 | Joint Set, Front Axle Inboard, LH |
| 43405 | Shaft Sub-assy, Front Axle Outer |
| 43405A | Ring, Shaft Snap (FOR FRONT AXLE OUTER SHAFT) |
| 43406 | Shaft Sub-assy, Front Axle Pipe |
| 43406A | Ring,Shaft Snap (FOR FRONT AXLE PIPE SHAFT) |
| 43410 | Shaft Assy, Front Drive, RH |
| 43410E | Cover, Dust (FOR FRONT DRIVE SHAFT) |
| 43410F | Bolt, Serration (FOR FRONT DRIVE SHAFT) |
| 43410H | Ring, Hole Snap (FOR FRONT DRIVE SHAFT) |
| 43410J | Nut (FOR FRONT DRIVE SHAFT) |
| 43410P | Shaft Sub-assy, Front Drive, RH |
| 43411B | Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER) |
| 43412A | Shaft, Front Axle, LH |
| 43420 | Shaft Assy, Front Drive, LH |
| 43420A | Shaft Assy, Front Drive, LH |
| 43447A | Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) |
| 43447B | Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) |
| 43448A | Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) |
| 43448B | Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) |
| 43460 | Shaft Assy, Front Drive Outboard Joint, RH |
| 43470 | Shaft Assy, Front Drive Outboard Joint, LH |
| 43474 | Damper, Drive Shaft |
| 43474A | Clamp (FOR DRIVE SHAFT DAMPER SETTING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
