Toyota Corolla FX

1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

28 part groups · 2 illustrations

Illustrations

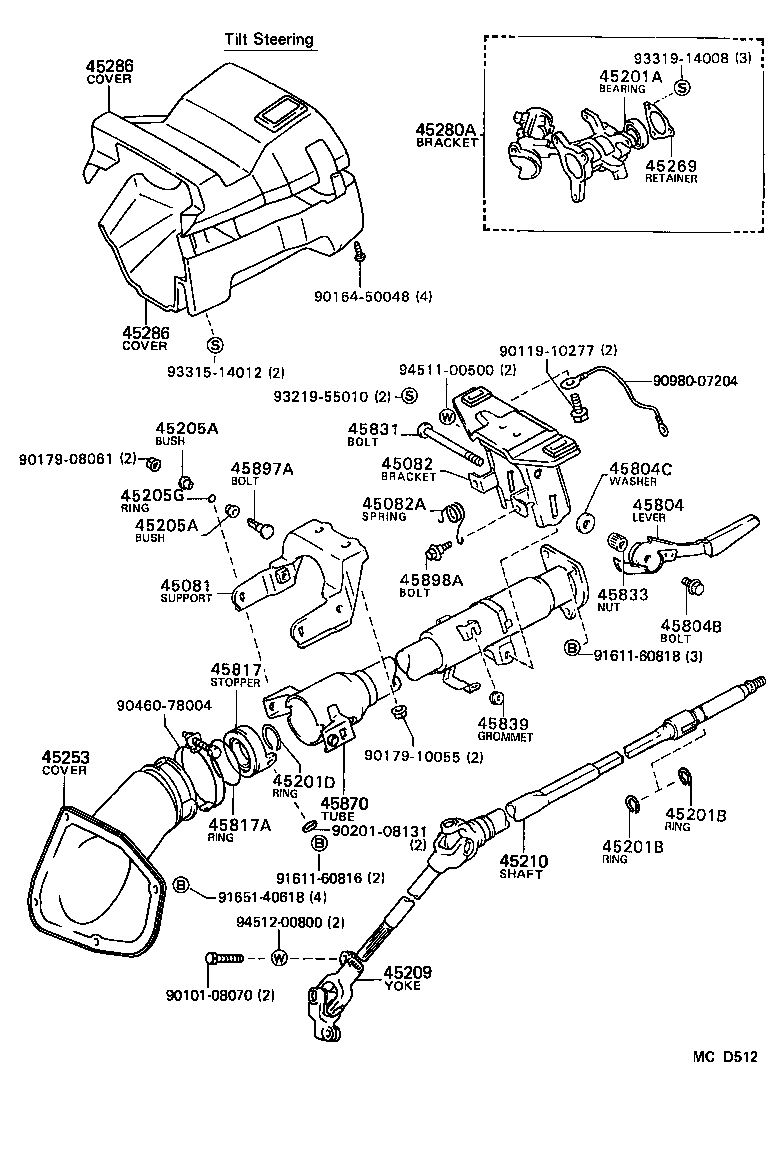

Figure MCD511 MCD511 1986-09 → — Figure MCD512 MCD512 1986-09 → —

Part groups

PNCDescription
45081 Support Sub-assy, Tilt Steering
45082 Bracket Sub-assy, Break Away W/Capsule
45082A Spring, Torsion(FOR TILT STEERING RETURN)
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45205A Bush(FOR STEERING COLUMN TUBE)
45205G Ring, O(FOR STEERING COLUMN TUBE)
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45253 Cover, Steering Column Hole
45269 Retainer, Main Shaft Bearing
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45804 Lever Sub-assy, Steering Tilt
45804B Bolt(FOR STEERING TILT LEVER)
45804C Washer, Plate(FOR STEERING TILT LEVER)
45817 Stopper, Steering Shaft Thrust
45817A Ring, O(FOR STEERING SHAFT THRUST STOPPER)
45831 Bolt, Tilt Lever Lock, NO.1
45833 Nut, Tilt Steering Adjusting, NO.1
45839 Grommet, Return Spring
45870 Tube Assy, Steering Column
45874C Protector, Steering Column, NO.1
45874D Cushion(FOR STEERING COLUMN PROTECTOR)
45881A Protector, Steering Column, NO.2
45897A Bolt, Tilt Steering Pawl Set
45898A Bolt, Return Spring Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
