Toyota Corolla FX
1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States
Discontinued model
Data version 1988-08
Front Steering Gear & Link

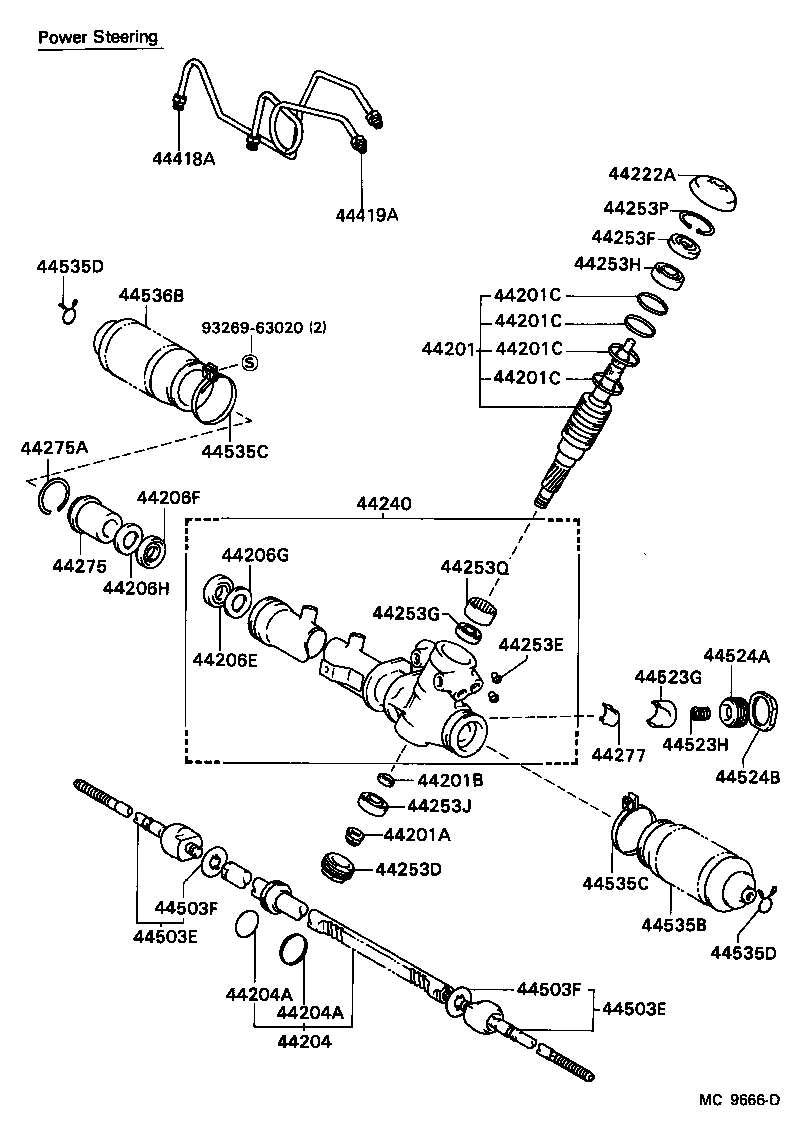

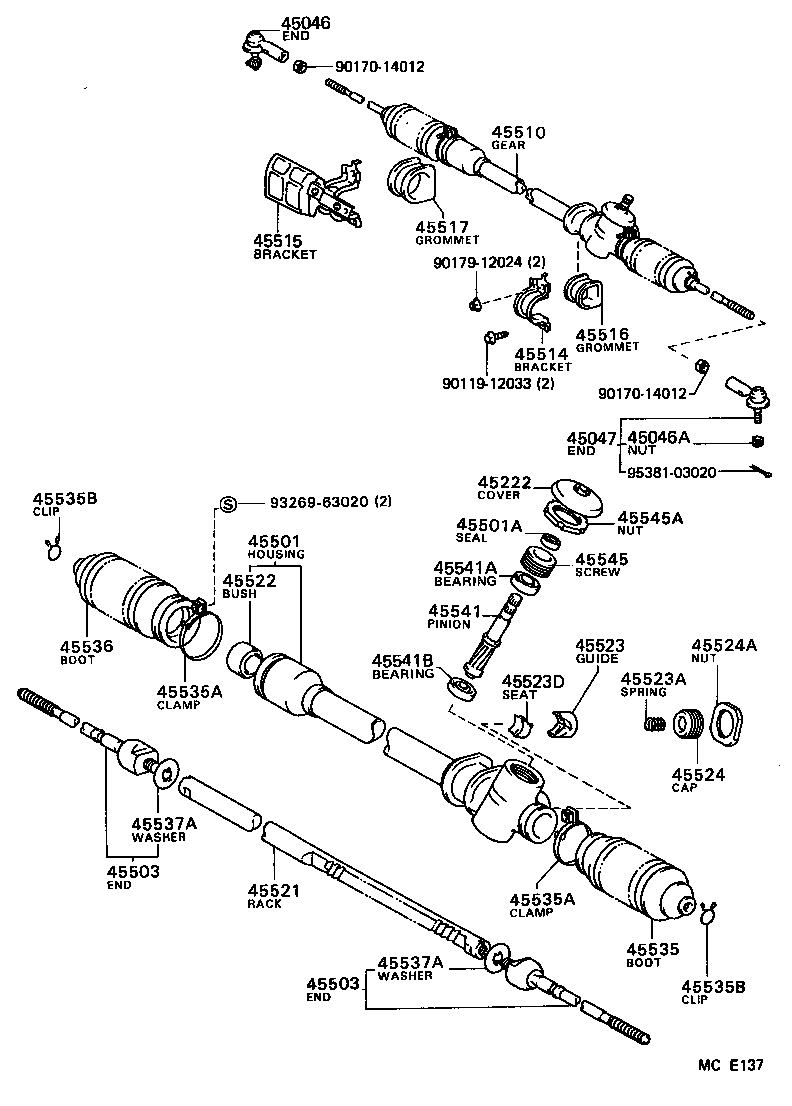

67 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04445 | Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 44201 | Valve Sub-assy, Power Steering Control |
| 44201A | Nut, Lock(FOR POWER STEERING CONTROL VALVE) |
| 44201B | Spacer(FOR POWER STEERING CONTROL VALVE) |
| 44201C | Ring(FOR POWER STEERING CONTROL VALVE) |
| 44204 | Rack Sub-assy, Power Steering |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44206E | Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE) |
| 44206F | Seal, Oil, NO.2(FOR POWER STEERING CYLINDER TUBE) |
| 44206G | Spacer, NO.1(FOR POWER STEERING CYLINDER TUBE) |
| 44206H | Spacer, NO.2(FOR POWER STEERING CYLINDER TUBE) |
| 44222A | Cover, Dust(FOR POWER STEERING GEAR) |
| 44240 | Housing Assy, Power Steering Rack |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44253D | Cap, Power Steering Rack Housing |
| 44253E | Seat, Union(FOR POWER STEERING RACK HOUSING) |
| 44253F | Seal, Oil, NO.1(FOR POWER STEERING RACK HOUSING) |
| 44253G | Seal, Oil, NO.2(FOR POWER STEERING RACK HOUSING) |
| 44253H | Bearing, NO.1(FOR POWER STEERING RACK HOUSING) |
| 44253J | Bearing, NO.2(FOR POWER STEERING RACK HOUSING) |
| 44253P | Ring, Hole Snap(FOR POWER STEERING RACK HOUSING) |
| 44253Q | Bush(FOR POWER STEERING RACK HOUSING) |
| 44275 | Stopper, Cylinder End |
| 44275A | Ring, Hole Snap(FOR CYLINDER END STOPPER) |
| 44277 | Seat, Rack Guide |
| 44418A | Tube, Steering Right Turn Pressure |
| 44419A | Tube, Steering Left Turn Pressure |
| 44503E | End Sub-assy, Steering Rack(FOR POWER STEERING) |
| 44503F | Washer, Claw(FOR POWER STEERING RACK END) |
| 44523G | Guide, Rack(FOR POWER STEERING) |
| 44523H | Spring(FOR POWER STEERING RACK GUIDE) |
| 44524A | Cap, Rack Guide Spring(FOR POWER STEERING) |
| 44524B | Nut(FOR POWER STEERING RACK GUIDE CAP) |
| 44535B | Boot, Steering Rack NO.1(FOR POWER STEERING) |
| 44535C | Clamp(FOR POWER STEERING RACK BOOT) |
| 44535D | Clip(FOR POWER STEERING RACK BOOT) |
| 44536B | Boot, Steering Rack NO.2(FOR POWER STEERING) |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45222 | Cover, Steering Gear Dust |
| 45501 | Housing Sub-assy, Steering Rack |
| 45501A | Seal, Type T Oil(FOR STEERING RACK HOUSING) |
| 45503 | End Sub-assy, Steering Rack |
| 45510 | Gear Assy, Steering |
| 45514 | Bracket, Steering Rack Housing, NO.1 |
| 45515 | Bracket, Steering Rack Housing, NO.2 |
| 45516 | Grommet, Steering Rack Housing, NO.1 |
| 45517 | Grommet, Steering Rack Housing, NO.2 |
| 45521 | Rack, Steering |
| 45522 | Bush, Steering Rack |
| 45523 | Guide, Rack(FOR STEERING GEAR) |
| 45523A | Spring(FOR STEERING GEAR RACK GUIDE) |
| 45523D | Seat, Rack Guide |
| 45524 | Cap, Steering Rack Guide Spring |
| 45524A | Nut(FOR STEERING RACK GUIDE SPRING CAP) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535A | Clamp(FOR STEERING RACK BOOT) |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45537A | Washer, Claw(FOR STEERING RACK END LOCK) |
| 45541 | Pinion, Steering |
| 45541A | Bearing, Radial Ball(FOR STEERING PINION UPPER) |
| 45541B | Bearing, Radial Ball(FOR STEERING PINION LOWER) |
| 45545 | Screw, Pinion Bearing Adjusting |
| 45545A | Nut(FOR PINION BEARING ADJUSTING SCREW) |
