Toyota Corolla FX

1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States

Discontinued model Data version 1988-08

Side Moulding

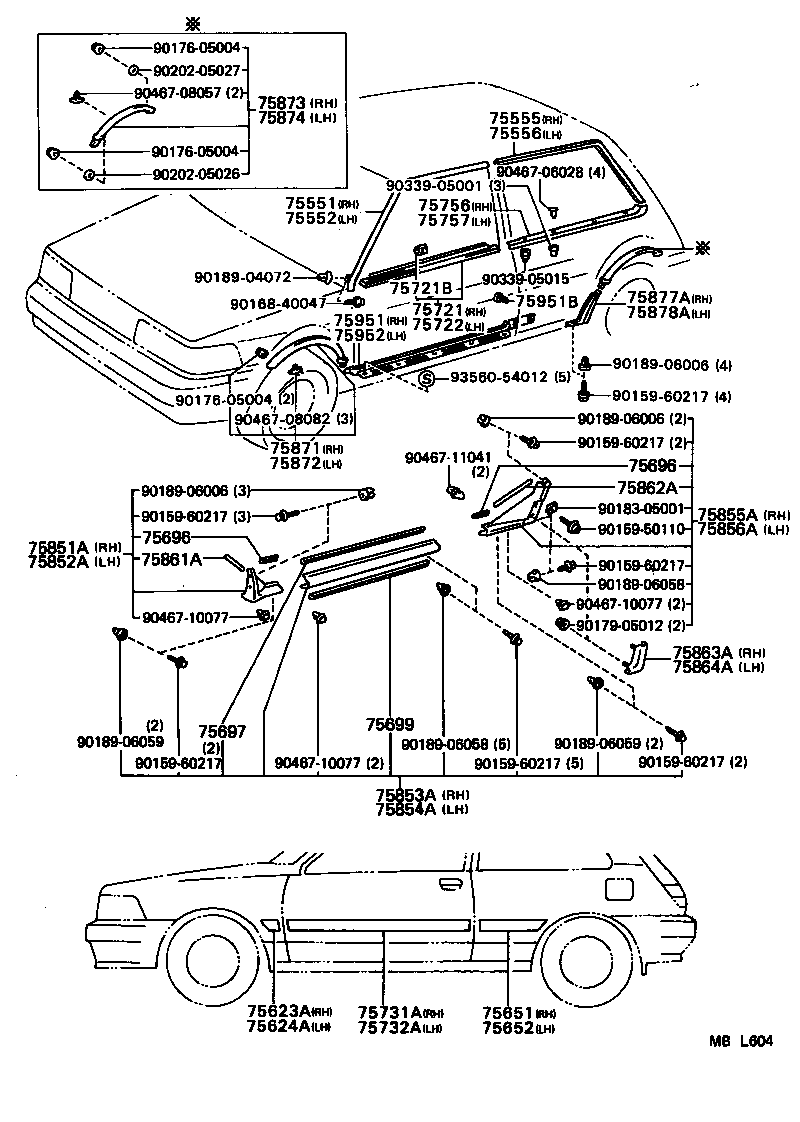

37 part groups · 2 illustrations

PNC	Description
75551	Moulding, Roof Drip Side Finish, RH
75552	Moulding, Roof Drip Side Finish, LH
75555	Moulding, Roof Drip Side Finish, Rear RH
75556	Moulding, Roof Drip Side Finish, Rear LH
75623A	Moulding, Front Fender, Outside Rear RH
75624A	Moulding, Front Fender, Outside Rear LH
75651	Moulding, Quarter, Outside RH
75652	Moulding, Quarter, Outside LH
75696	Pad, Body Outside Moulding, NO.1
75697	Pad, Body Outside Moulding, NO.2
75699	Pad, Body Outside Moulding, NO.4
75721	Moulding, Front Door Belt, RH
75721B	Clip(FOR FRONT DOOR BELT MOULDING SET)
75722	Moulding, Front Door Belt, LH
75731A	Moulding, Front Door, Outside RH
75732A	Moulding, Front Door, Outside LH
75756	Moulding, Quarter Belt, RH
75757	Moulding, Quarter Belt, LH
75851A	Moulding, Rocker Panel, Front RH
75852A	Moulding, Rocker Panel, Front LH
75853A	Moulding, Rocker Panel, Center RH
75854A	Moulding, Rocker Panel, Center LH
75855A	Moulding, Rocker Panel, Rear RH
75856A	Moulding, Rocker Panel, Rear LH
75861A	Protector, Rocker Panel Moulding, NO.1
75862A	Protector, Rocker Panel Moulding, NO.2
75863A	Cover, Rocker Panel Moulding End, Rear RH
75864A	Cover, Rocker Panel Moulding End, Rear LH
75871	Moulding, Front Fender Wheel Opening, RH
75872	Moulding, Front Fender Wheel Opening, LH
75873	Moulding, Quarter Panel Wheel Opening, RH
75874	Moulding, Quarter Panel Wheel Opening, LH
75877A	Cover, Quarter Opening End, RH
75878A	Cover, Quarter Opening End, LH
75951	Plate, Front Door Scuff, Outside RH
75951B	Clip (FOR DOOR SCUFF PLATE)
75952	Plate, Front Door Scuff, Outside LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
