Toyota Corolla FX

1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States

Discontinued model Data version 1988-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 4 illustrations

Illustrations

Figure MEH539A

MEH539A 1986-09 → —

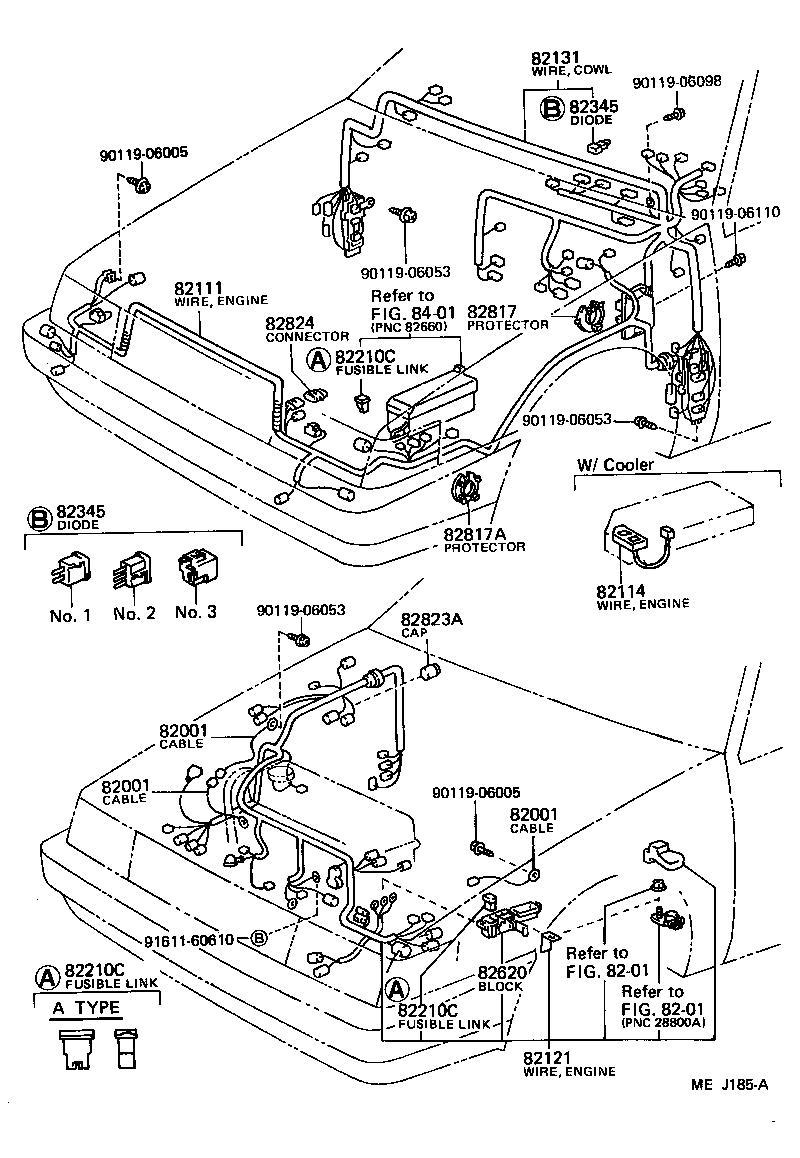

Figure MEJ185A

MEJ185A 1987-02 → —

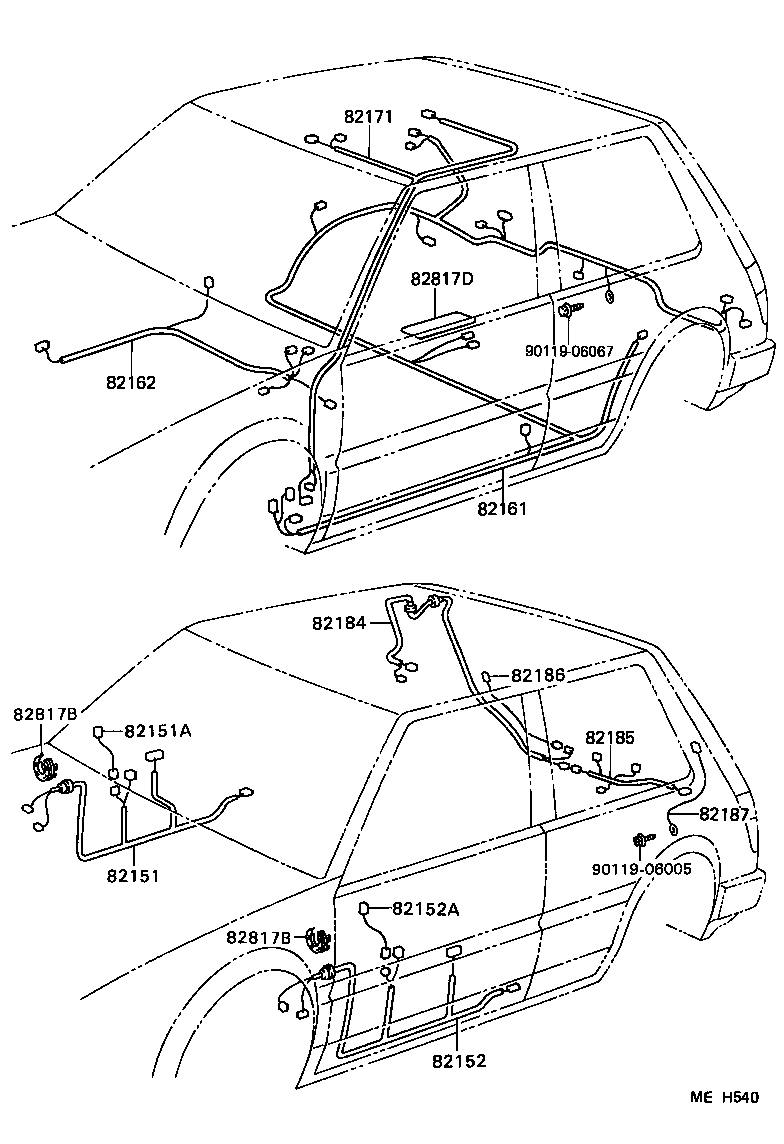

Figure MEH540

MEH540 1986-09 → —

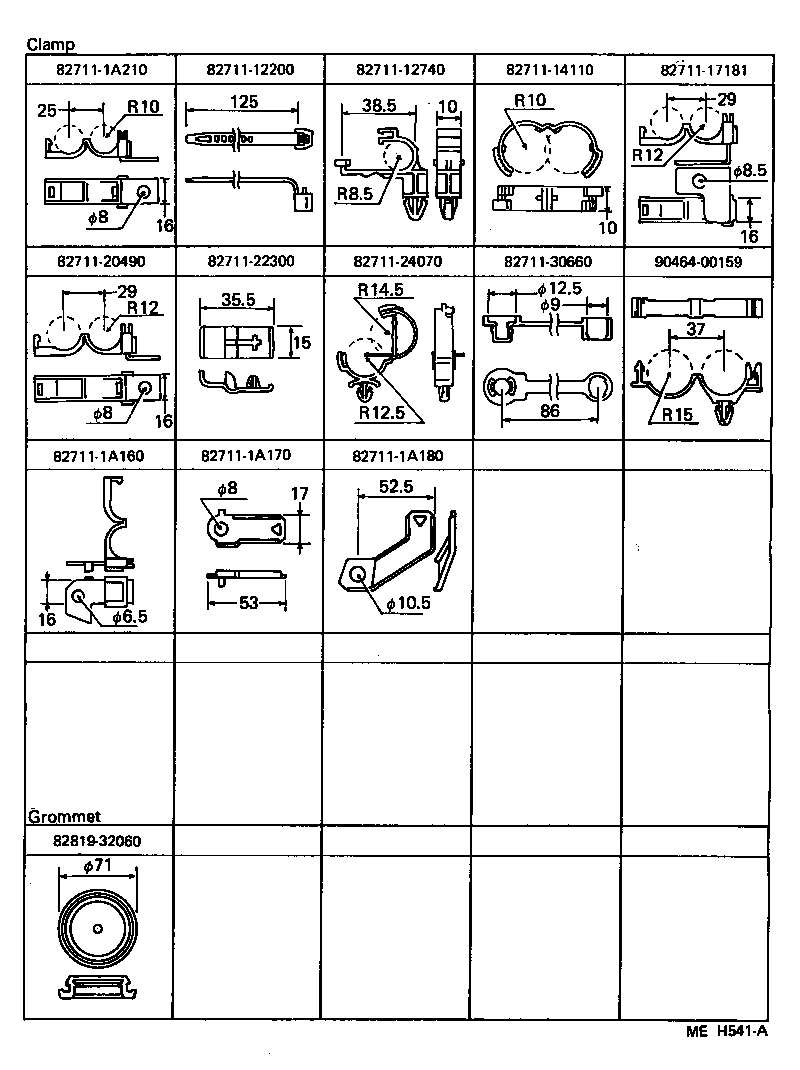

Figure MEH541A

MEH541A 1986-09 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82114	Wire, Engine Room, NO.4
82121	Wire, Engine
82122	Wire, Engine, NO.2
82131	Wire, Cowl
82151	Wire, Front Door, RH
82151A	Wire, Front Door, NO.2, RH
82152	Wire, Front Door, LH
82152A	Wire, Front Door, NO.2, LH
82161	Wire, Floor
82162	Wire, Floor, NO.2
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82187	Wire, Rear Window, NO.2
82210C	Fusible Link
82345	Diode
82620	Block Assy, Fusible Link
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82817D	Protector, Wiring Harness, NO.5
82823	Cap, Terminal, NO.1
82823A	Cap, Terminal, NO.2
82824	Connector, Wiring Harness

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
