Toyota Corolla FX

1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

18 part groups · 3 illustrations

Illustrations

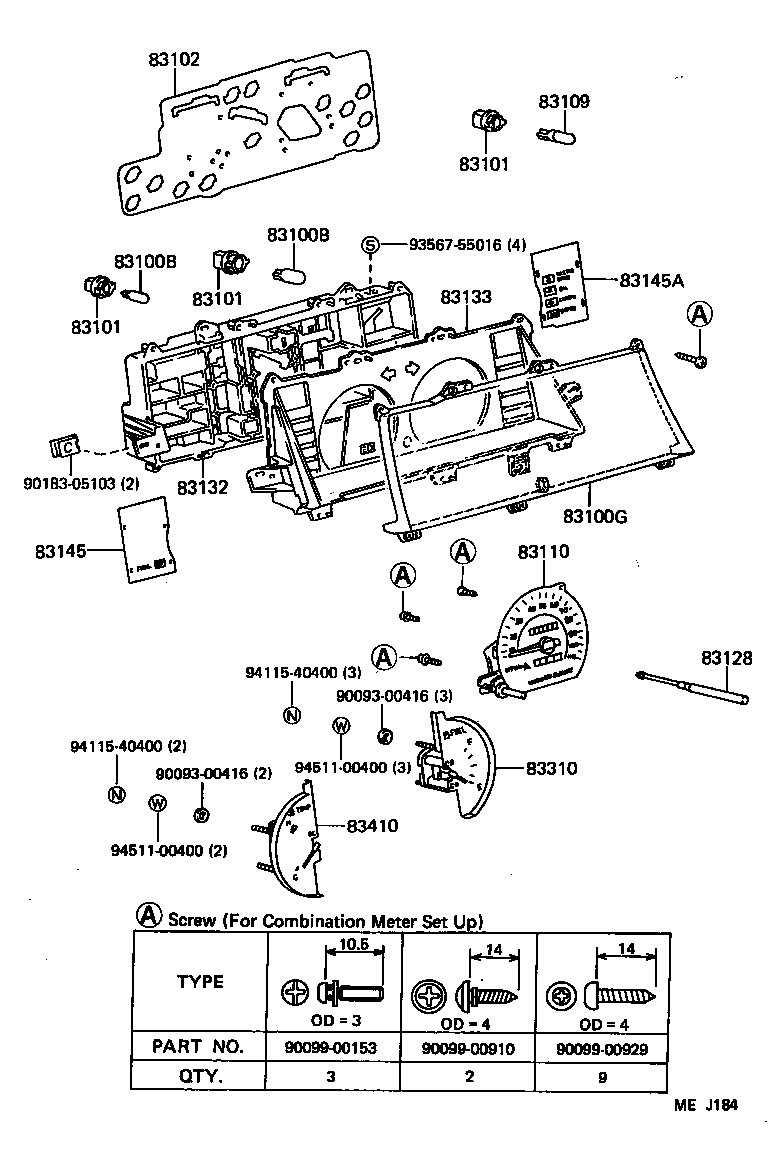

Figure MEH542 MEH542 1986-09 → — Figure MEJ184 MEJ184 1987-02 → — Figure MEH543B MEH543B 1986-09 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83128 Knob, Trip Counter
83129 Wire, Meter
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
