Toyota Corolla FX
1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States
Discontinued model
Data version 1988-08
Switch & Relay & Computer

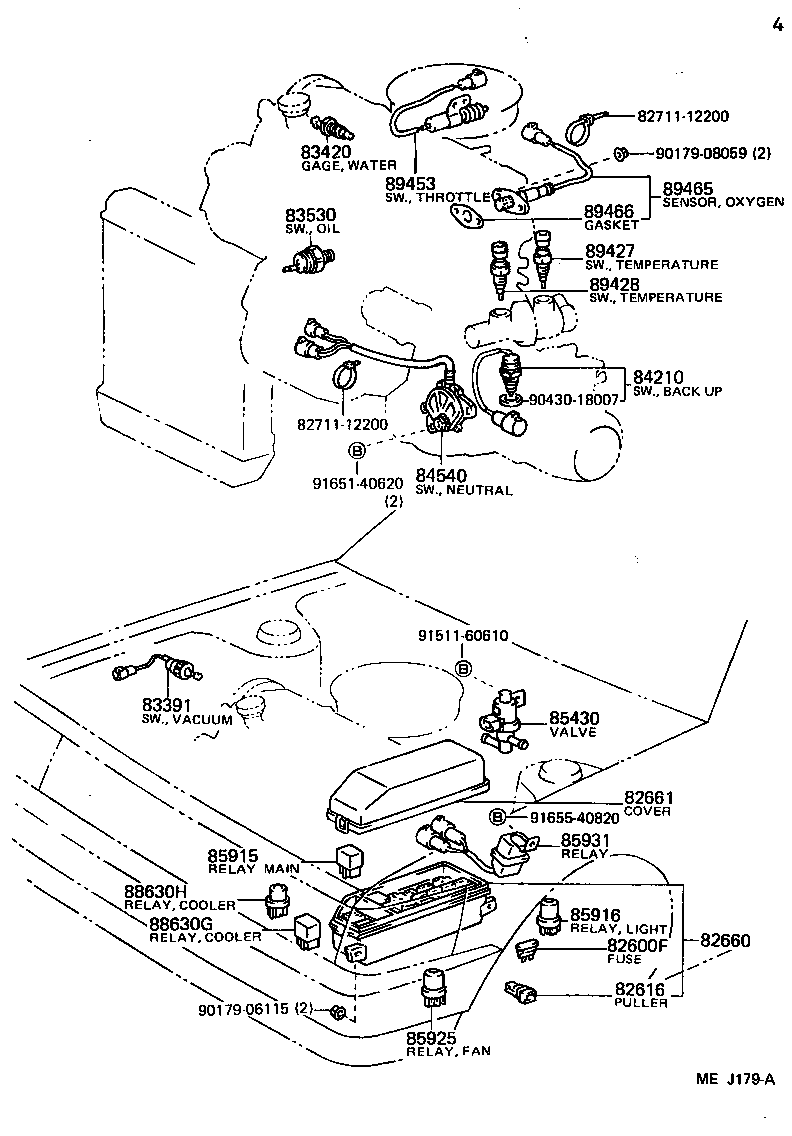

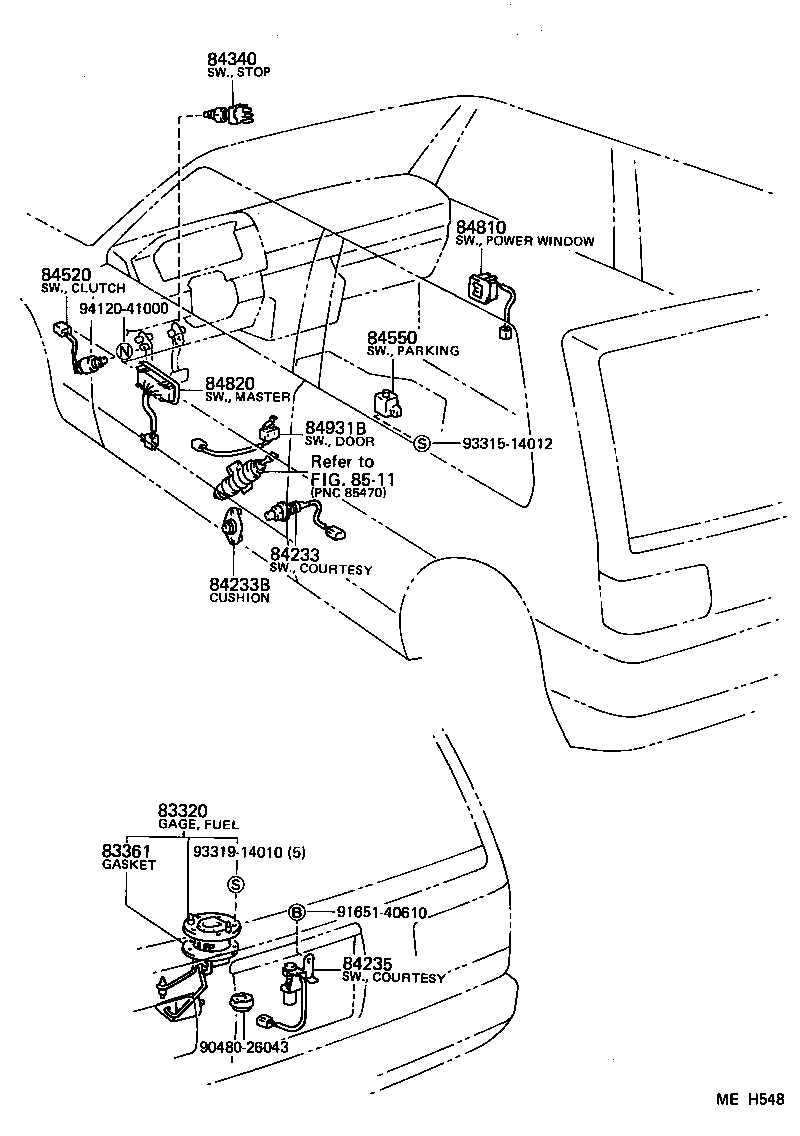

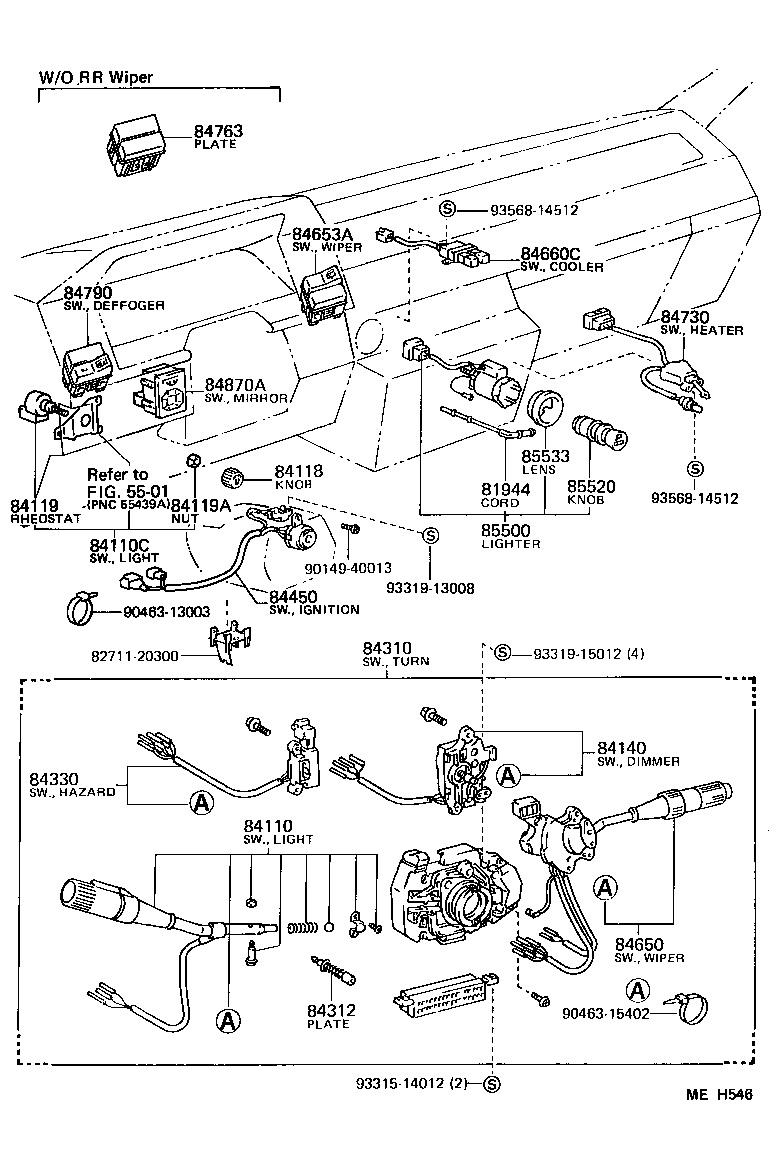

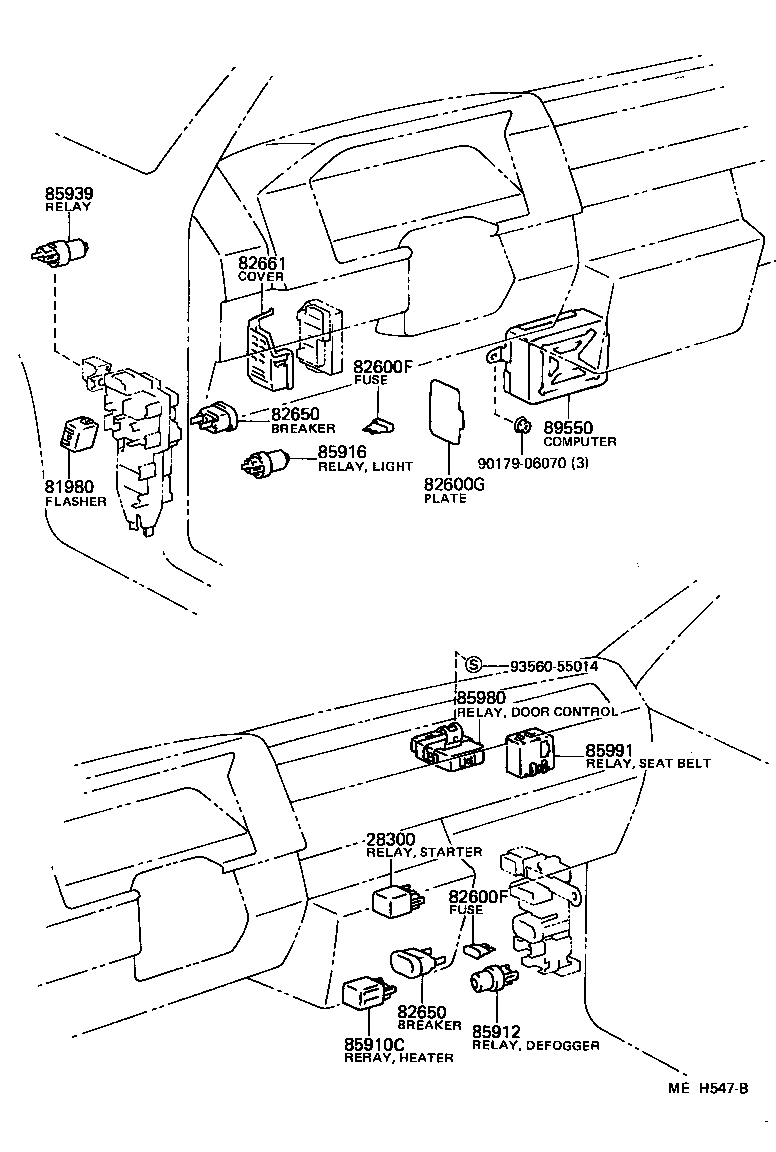

65 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 81944 | Cord, Optical Fiber |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82616 | Puller, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82660 | Block Assy, Relay, Engine Room |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83391 | Switch, Vacuum |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84110C | Switch Assy, Light Control, NO.2 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84233B | Cushion, Courtesy Switch (FOR FRONT DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84660C | Switch, Cooler |
| 84730 | Switch Assy, Heater Blower |
| 84763 | Plate, Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84931B | Switch, Door Control |
| 85430 | Valve, Outer Vent Control |
| 85500 | Lighter Assy, Cigarette |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85925 | Relay, Radiator Fan |
| 85931 | Relay, Emission Control |
| 85939 | Relay, Power Window |
| 85980 | Relay Assy, Door Control |
| 85991 | Relay, Seat Belt Warning |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89453 | Switch, Throttle Position (FOR T.C.S.) |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89550 | Computer Assy, Emission Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
