Toyota Corolla FX
1986-09 → 1988-08 · chassis AE82 · catalogue 181410 · United States
Discontinued model
Data version 1988-08

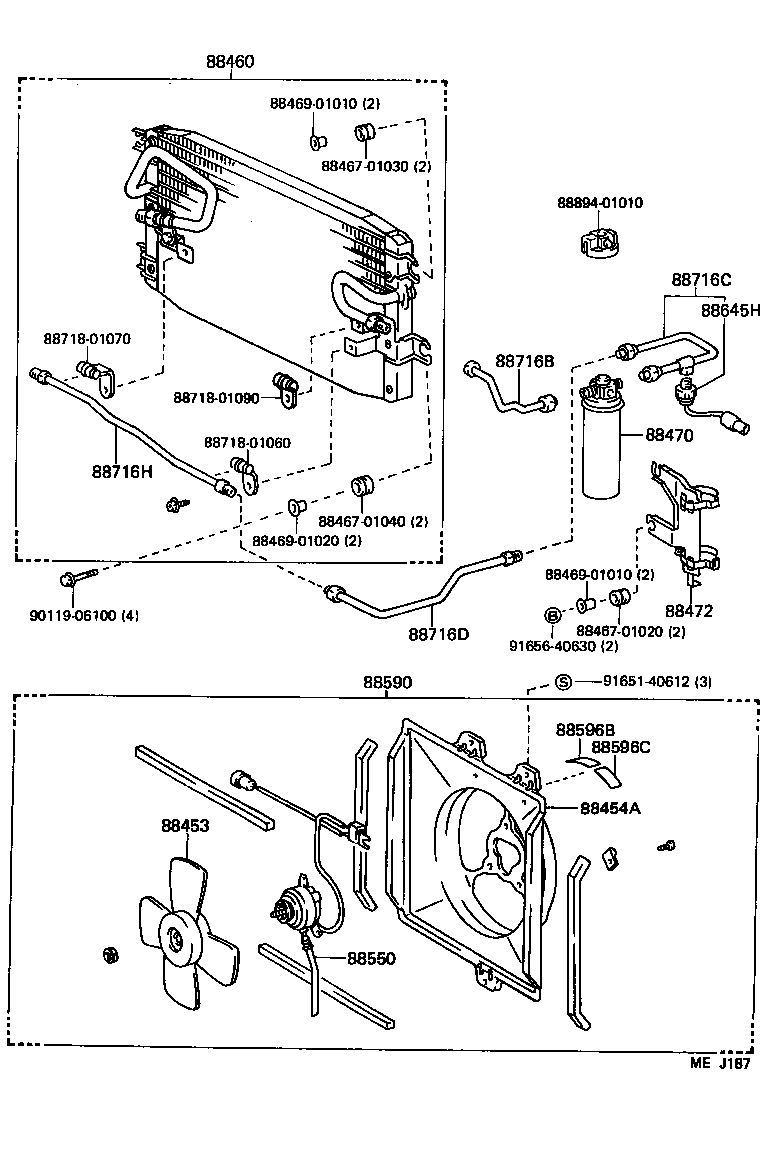

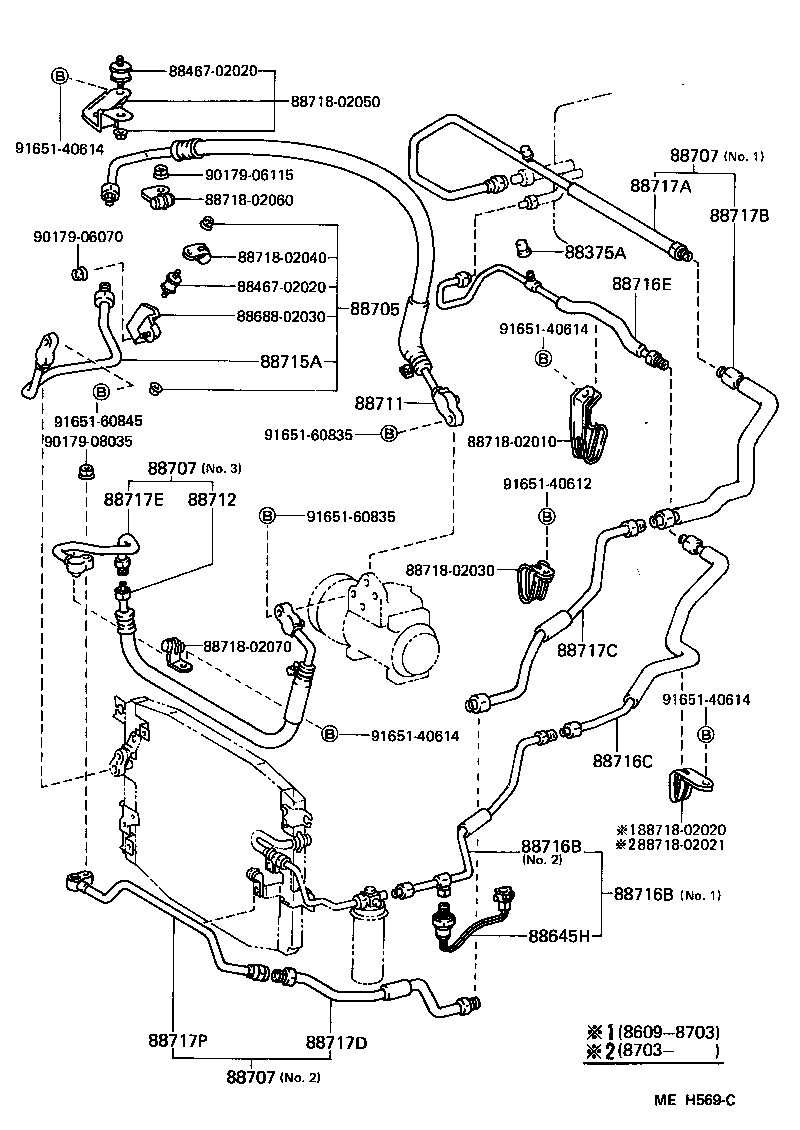

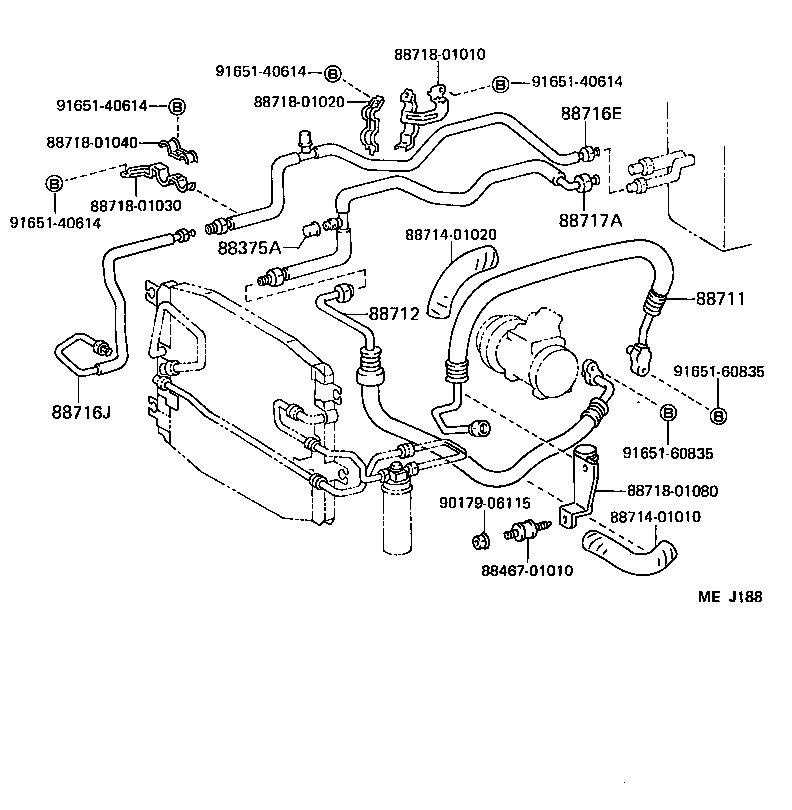

Heating & Air Conditioning - Cooler Piping
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |
| 88460 | Condenser Assy, Cooler |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88596B | Plate, Caution, NO.1 |
| 88596C | Plate, Caution, NO.2 |
| 88645H | Switch, Pressure NO.1 |
| 88705 | Pipe Sub-assy, Discharge |
| 88707 | Pipe Sub-assy, Suction |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88716H | Pipe, Cooler Refrigerant Liquid, H |
| 88716J | Pipe, Cooler Refrigerant Liquid, J |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88717C | Pipe, Cooler Refrigerant Suction, C |
| 88717D | Pipe, Cooler Refrigerant Suction, D |
| 88717E | Pipe, Cooler Refrigerant Suction, E |
| 88717P | Pipe, Cooler Refrigerant Suction, P |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
