Toyota Corolla
1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States
Discontinued model
Data version 1984-01

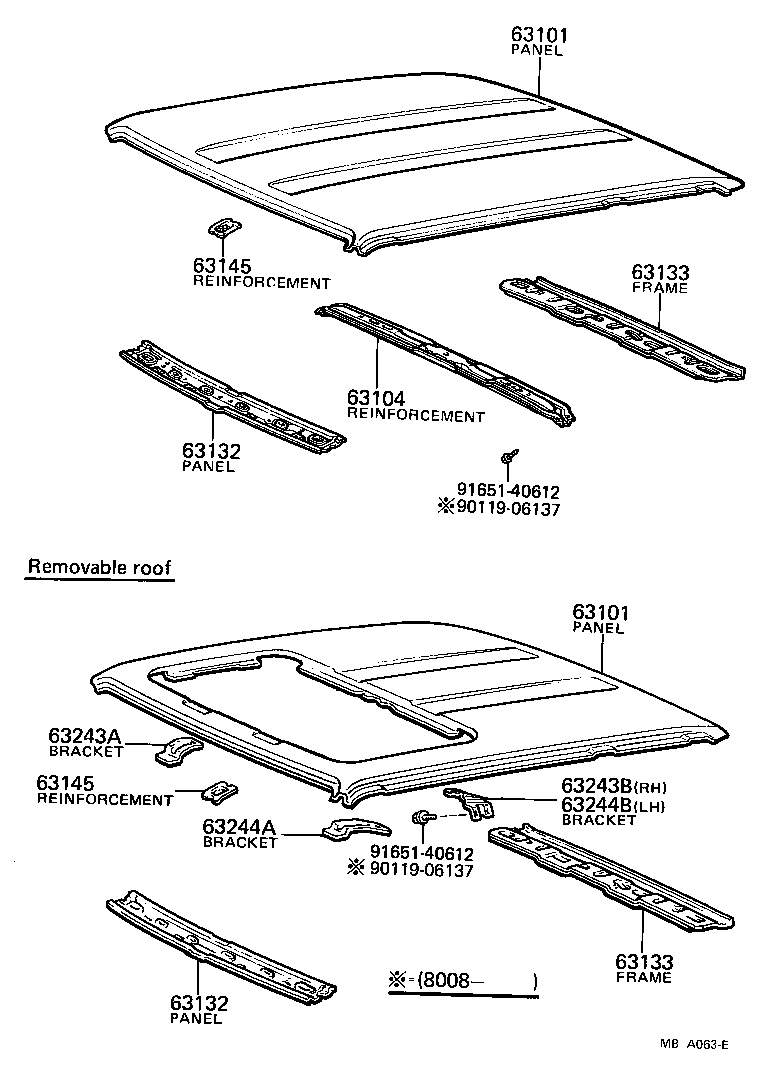

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63101 — Panel Sub-assy, Roof | ||||
| 63111-12120 |
Panel Sub-assy, Roof
1979-08 → 1983-07
ended
|
AE71,TE72 SED | — | |
| 63111-12130 |
Panel Sub-assy, Roof
1981-01 → 1983-07
ended
|
AE71,TE72 HT | — | |
| 63111-12150 |
Panel Sub-assy, Roof
1979-08 → 1983-07
ended
|
AE71,TE72 CP | — | |
| 63111-12160 |
Panel Sub-assy, Roof
1979-08 → 1983-07
ended
|
AE71,TE72 LB | — | |
| 63111-12170 note |
Panel Sub-assy, Roof
1979-08 → 1983-07
ended
|
AE71,TE72 LB | — | |
| 63111-12180 note |
Panel Sub-assy, Roof
1980-08 → 1983-07
ended
|
AE71,TE72 CP | — | |
| 63111-13050 |
Panel Sub-assy, Roof
1979-08 → 1983-07
ended
|
AE71,TE72 WG | — | |
| 63104 — Reinforcement Sub-assy, Roof Panel, Center | ||||
| 63141-12060 |
Reinforcement Sub-assy, Roof Panel, Center
1979-08 → 1983-07
ended
|
AE71,TE72 SED | — | |
| 63141-12070 |
Reinforcement Sub-assy, Roof Panel, Center
1979-08 → 1983-07
ended
|
AE71,TE72 CP,HT | — | |
| 63141-12080 |
Reinforcement Sub-assy, Roof Panel, Center
1979-08 → 1983-07
ended
|
AE71,TE72 LB | — | |
| 63141-13030 |
Reinforcement Sub-assy, Roof Panel, Center
1979-08 → 1983-07
ended
|
AE71,TE72 WG | — | |
| 63132 — Panel, Windshield Header, Inner | ||||
| 63132-12080 |
Panel, Windshield Header, Inner
1979-08 → 1983-07
ended
|
AE71,TE72 SED,WG | — | |
| 63132-12090 |
Panel, Windshield Header, Inner
1979-08 → 1983-07
ended
|
AE71,TE72 CP,HT,LB | — | |
| 63133 — Frame, Back Window Opening, Upper | ||||
| 63105-12010 note |
Frame, Back Window Opening, Upper
1979-08 → 1983-07
ended
|
AE71,TE72 CP USA | — | |
| 63105-12020 note |
Frame, Back Window Opening, Upper
1979-08 → 1983-07
ended
|
AE71,TE72 CP | — | |
| 63105-12030 note |
Frame, Back Window Opening, Upper
1979-08 → 1983-07
ended
|
AE71,TE72 CP | — | |
| 63105-12050 note |
Frame, Back Window Opening, Upper
1979-08 → 1983-07
ended
|
AE71,TE72 LB USA | — | |
| 63105-12060 note |
Frame, Back Window Opening, Upper
1979-08 → 1983-07
ended
|
AE71,TE72 LB | — | |
| 63105-12070 note |
Frame, Back Window Opening, Upper
1979-08 → 1983-07
ended
|
AE71,TE72 LB | — | |
| 63105-13010 |
Frame, Back Window Opening, Upper
1979-08 → 1983-07
ended
|
AE71,TE72 WG | — | |
| 63133-12100 |
Frame, Back Window Opening, Upper
1979-08 → 1983-07
ended
|
AE71,TE72 SED | — | |
| 63133-12110 |
Frame, Back Window Opening, Upper
1981-01 → 1983-07
ended
|
AE71,TE72 HT | — | |
| 63145 — Reinforcement, Windshield Header Inner Panel | ||||
| 63145-12020 |
Reinforcement, Windshield Header Inner Panel
1979-08 → 1983-07
ended
|
AE71,TE72 SED,WG | — | |
| 63145-12030 |
Reinforcement, Windshield Header Inner Panel
1979-08 → 1983-07
ended
|
AE71,TE72 CP,HT,LB | — | |
| 63243A — Bracket, Removable Roof Housing Front Mounting, RH | ||||
| 63241-12010 |
Bracket, Removable Roof Housing Front Mounting, RH
1979-08 → 1983-07
ended
|
AE71,TE72 CP,LB | — | |
| 63243B — Bracket, Removable Roof Housing Side Mounting, RH | ||||
| 63243-12010 |
Bracket, Removable Roof Housing Side Mounting, RH
1979-08 → 1983-07
ended
|
AE71,TE72 LB | — | |
| 63243-12020 |
Bracket, Removable Roof Housing Side Mounting, RH
1980-08 → 1983-07
ended
|
AE71,TE72 CP | — | |
| 63244A — Bracket, Removable Roof Housing Front Mounting, LH | ||||
| 63242-12010 |
Bracket, Removable Roof Housing Front Mounting, LH
1979-08 → 1983-07
ended
|
AE71,TE72 CP,LB | — | |
| 63244B — Bracket, Removable Roof Housing Side Mounting, LH | ||||
| 63244-12010 |
Bracket, Removable Roof Housing Side Mounting, LH
1979-08 → 1983-07
ended
|
AE71,TE72 LB | — | |
| 63244-12020 |
Bracket, Removable Roof Housing Side Mounting, LH
1980-08 → 1983-07
ended
|
AE71,TE72 CP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
