Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

22 part groups · 2 illustrations

Illustrations

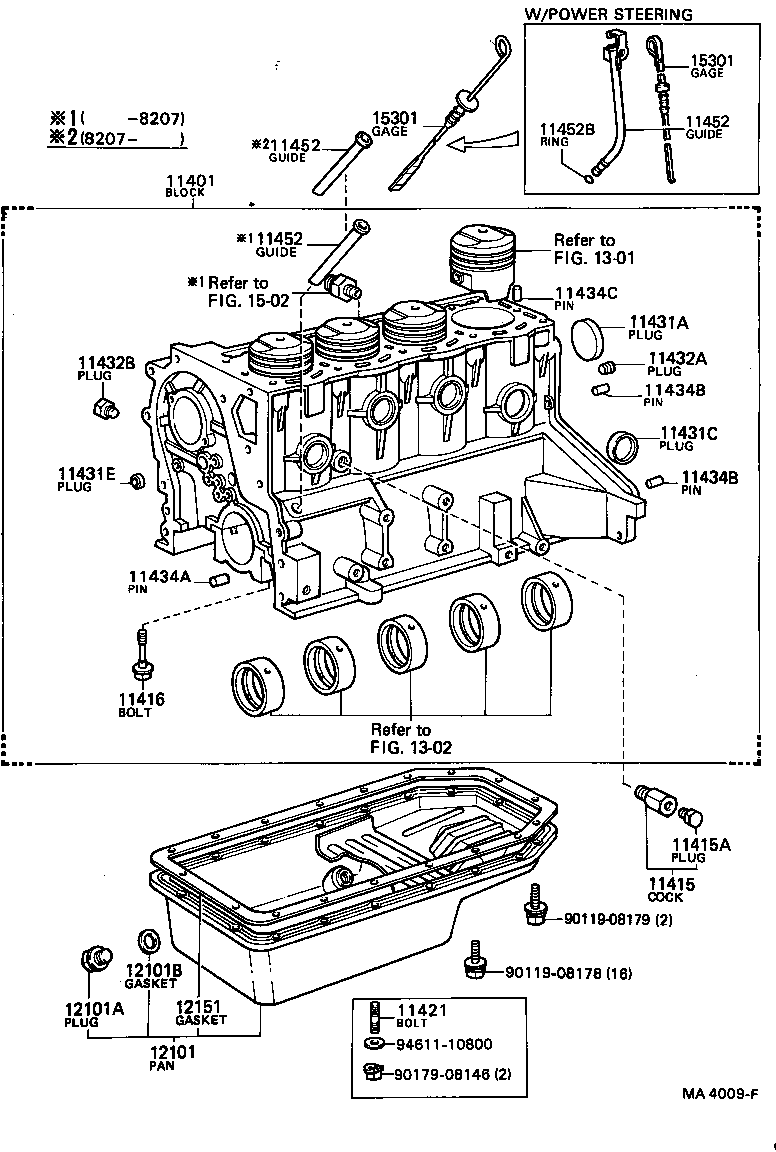

Figure MA6708 MA6708 1982-08 → — Figure MA4009F MA4009F 1979-08 → 1982-08

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12151 Gasket, Oil Pan
15301 Gage Sub-assy, Oil Level
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
