Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

12 part groups · 2 illustrations

Illustrations

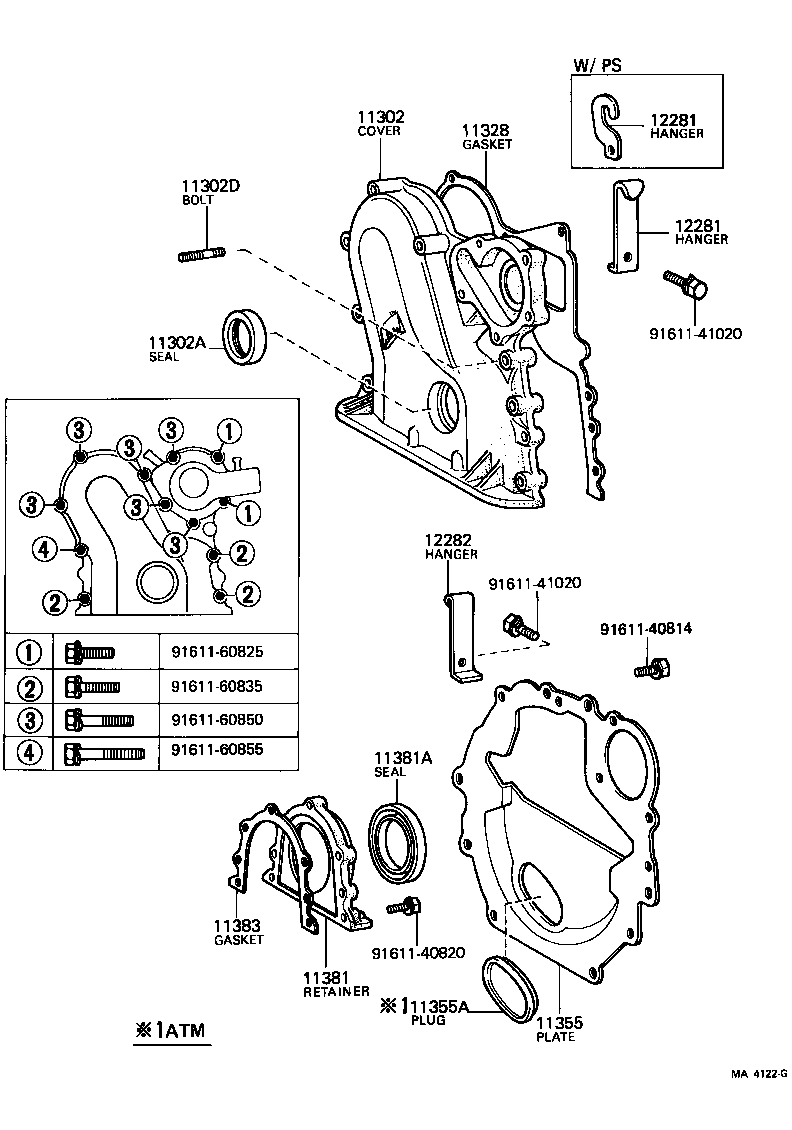

Figure MA6009A MA6009A 1982-08 → — Figure MA4122G MA4122G 1979-08 → 1982-08

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302D Bolt, Stud(FOR TIMING GEAR COVER)
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
