Toyota Corolla
1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States
Discontinued model
Data version 1984-01

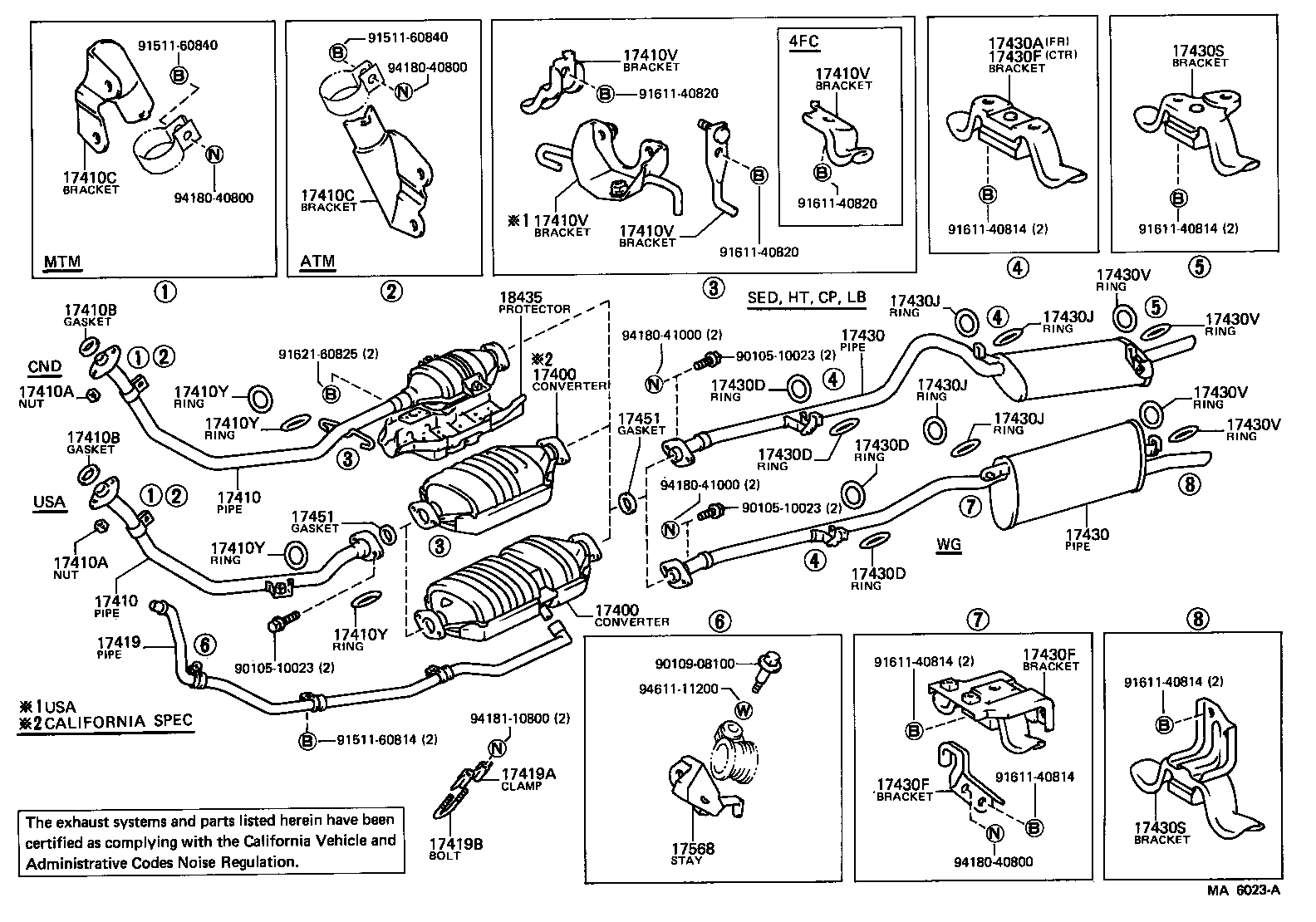

Exhaust Pipe
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400A | Flange, Thermosenser Inlet |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17410V | Bracket, Exhaust Pipe Front (FOR REAR) |
| 17410Y | Bolt OR Ring, Exhaust Pipe Front (FOR REAR) |
| 17419 | Pipe, Converter Air Inlet |
| 17419A | Clamp, NO.1(FOR CONVERTER AIR INLET PIPE) |
| 17419B | Bolt, U(FOR CONVERTER AIR INLET PIPE) |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430A | Bracket, Exhaust Tailpipe(FOR FRONT) |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17430F | Bracket, Exhaust Tailpipe(FOR CENTER) |
| 17430J | Bolt OR Ring, Exhaust Tailpipe(FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17451 | Gasket, Exhaust Pipe |
| 17568 | Stay, Exhaust Pipe Support |
| 18435 | Protector, Catalytic Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
