Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

66 part groups · 11 illustrations

Illustrations

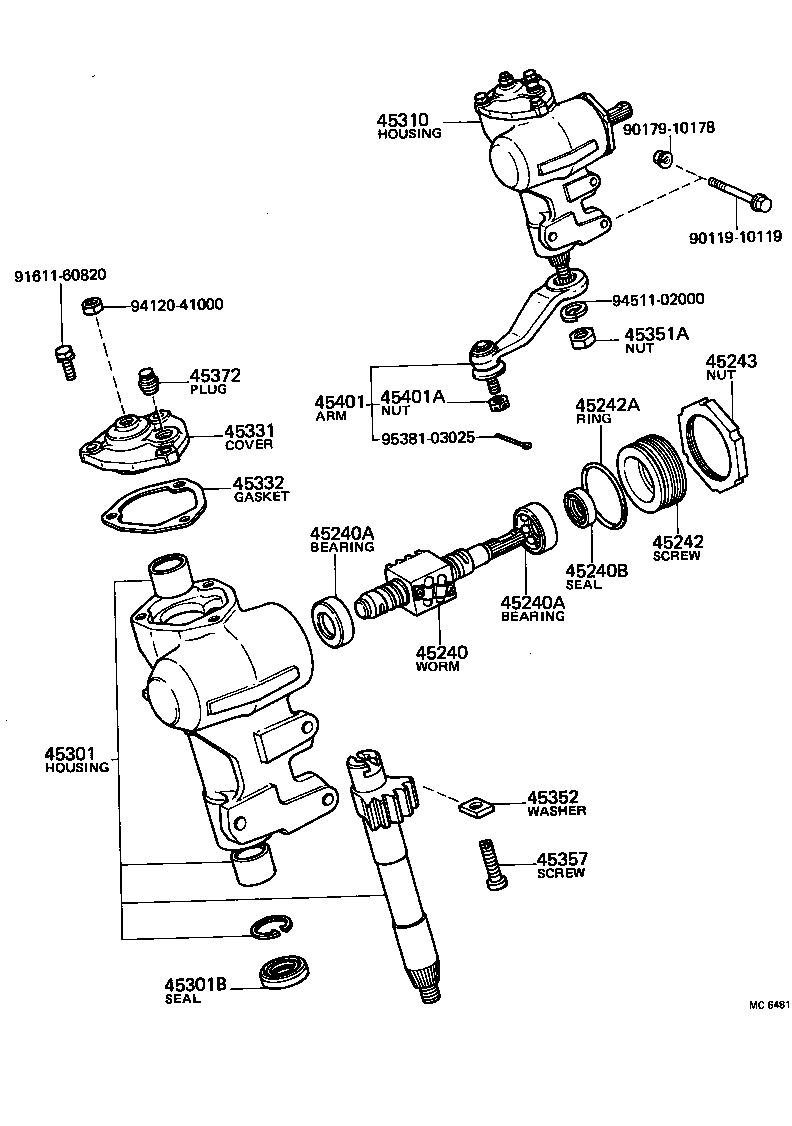

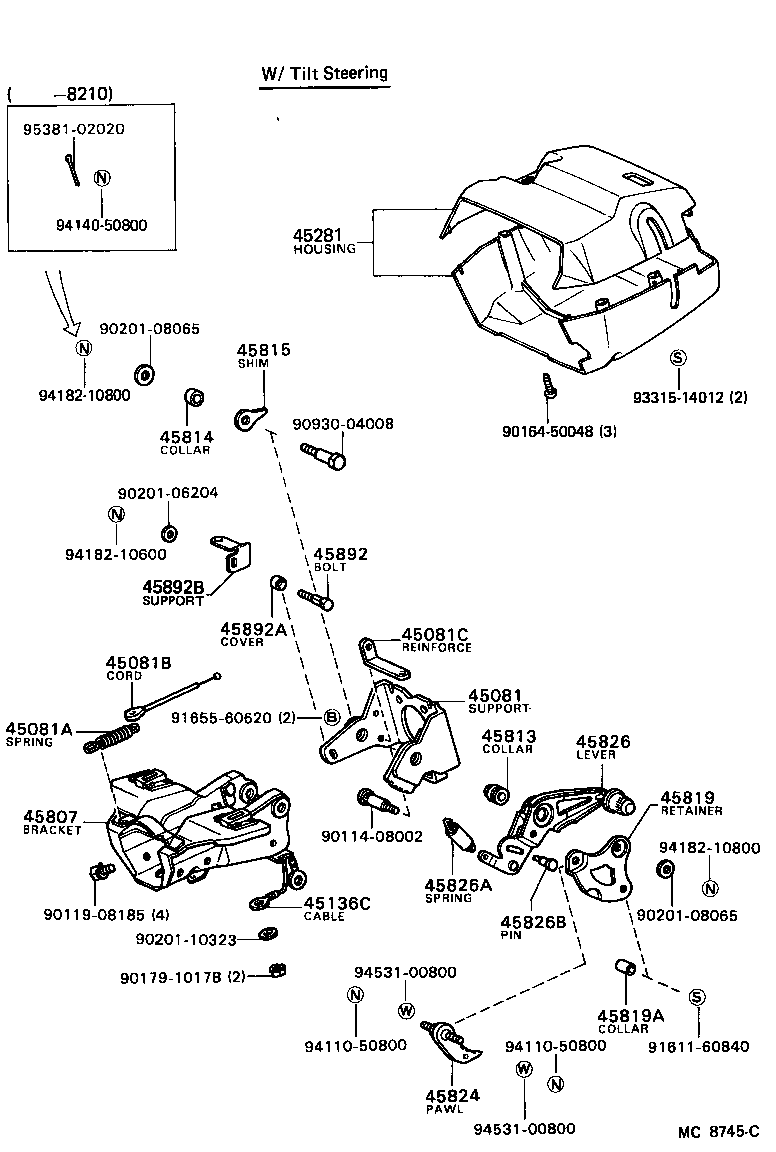

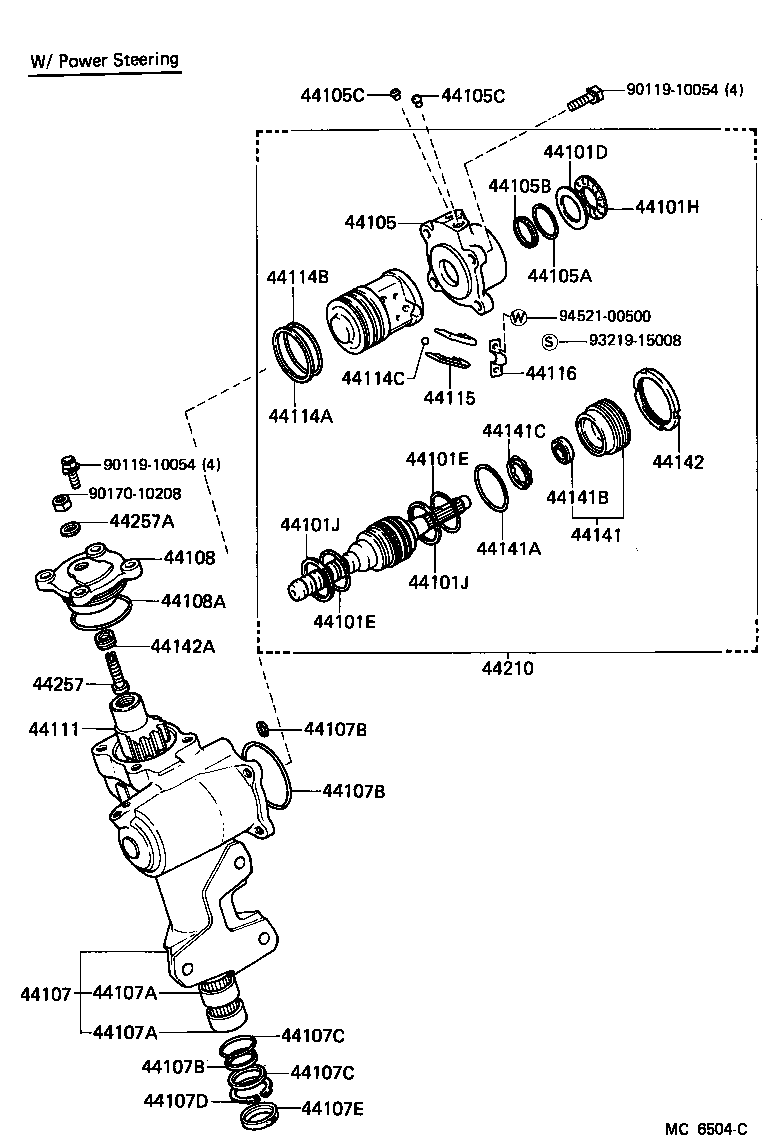

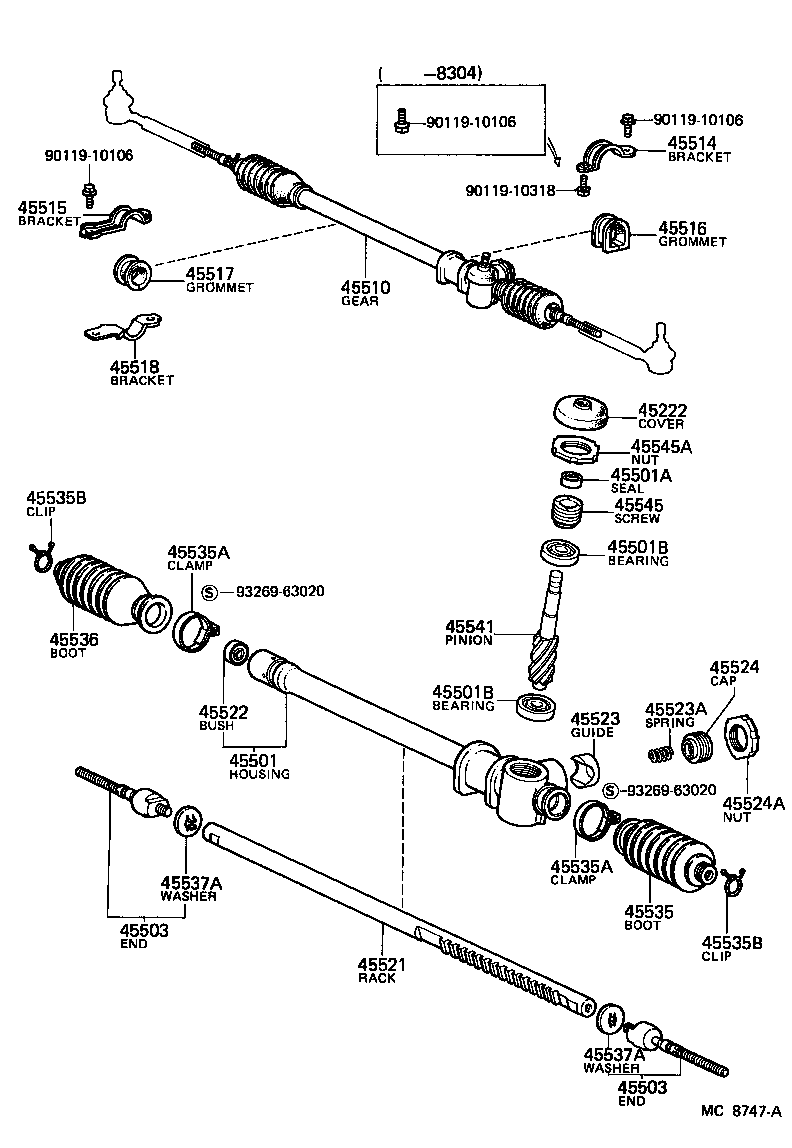

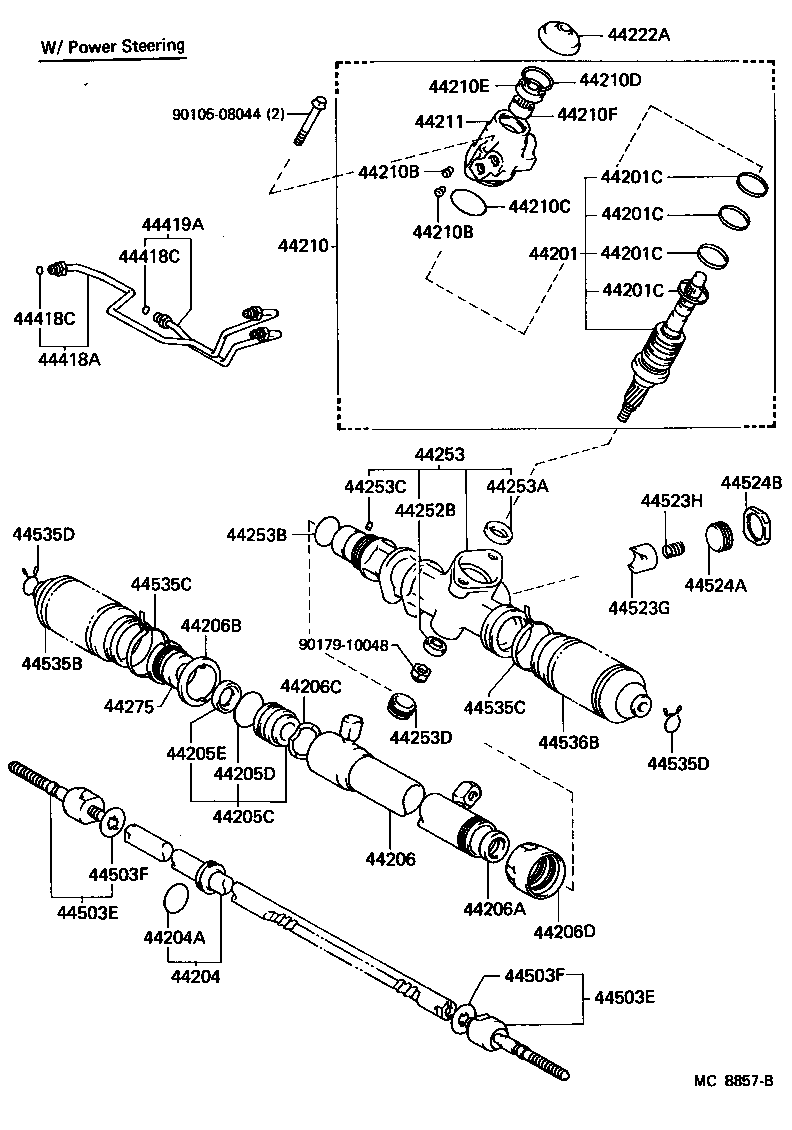

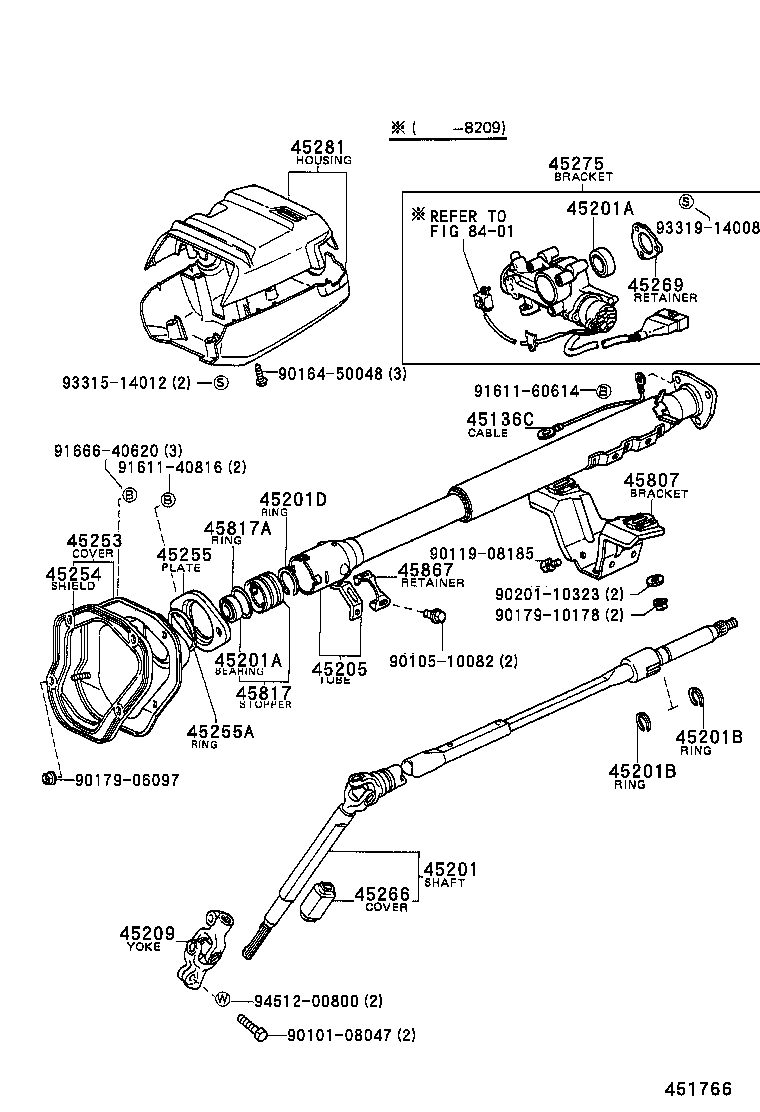

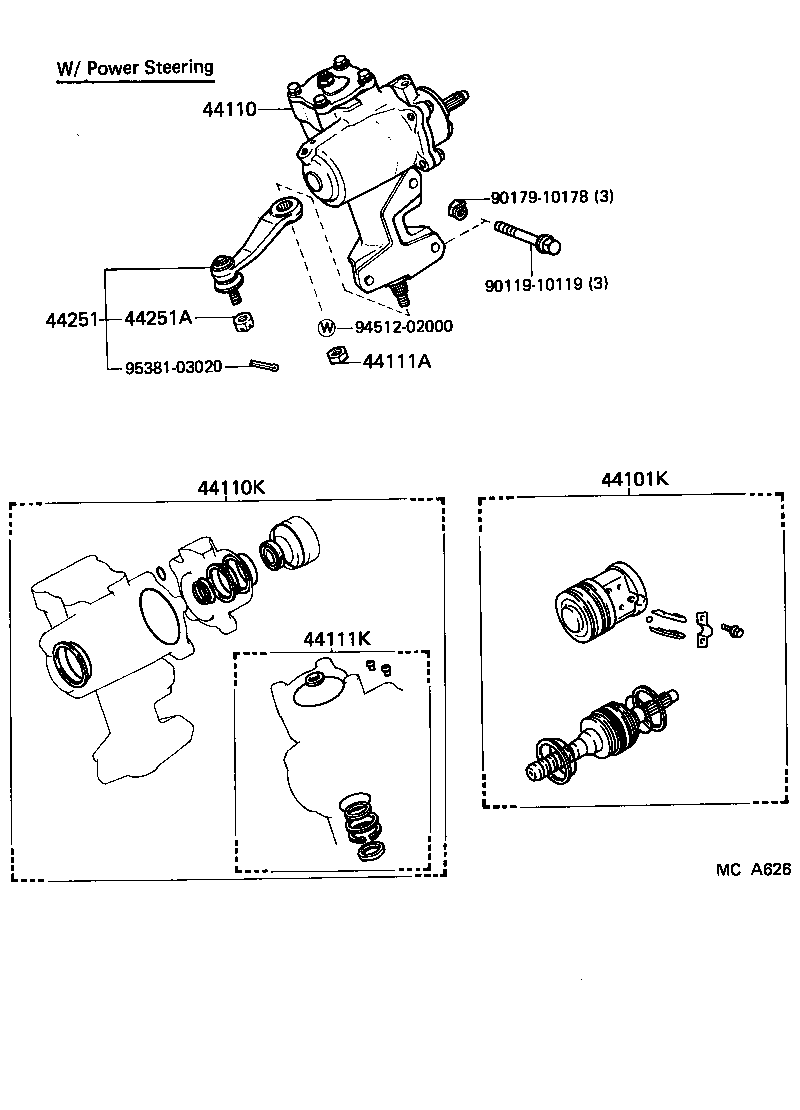

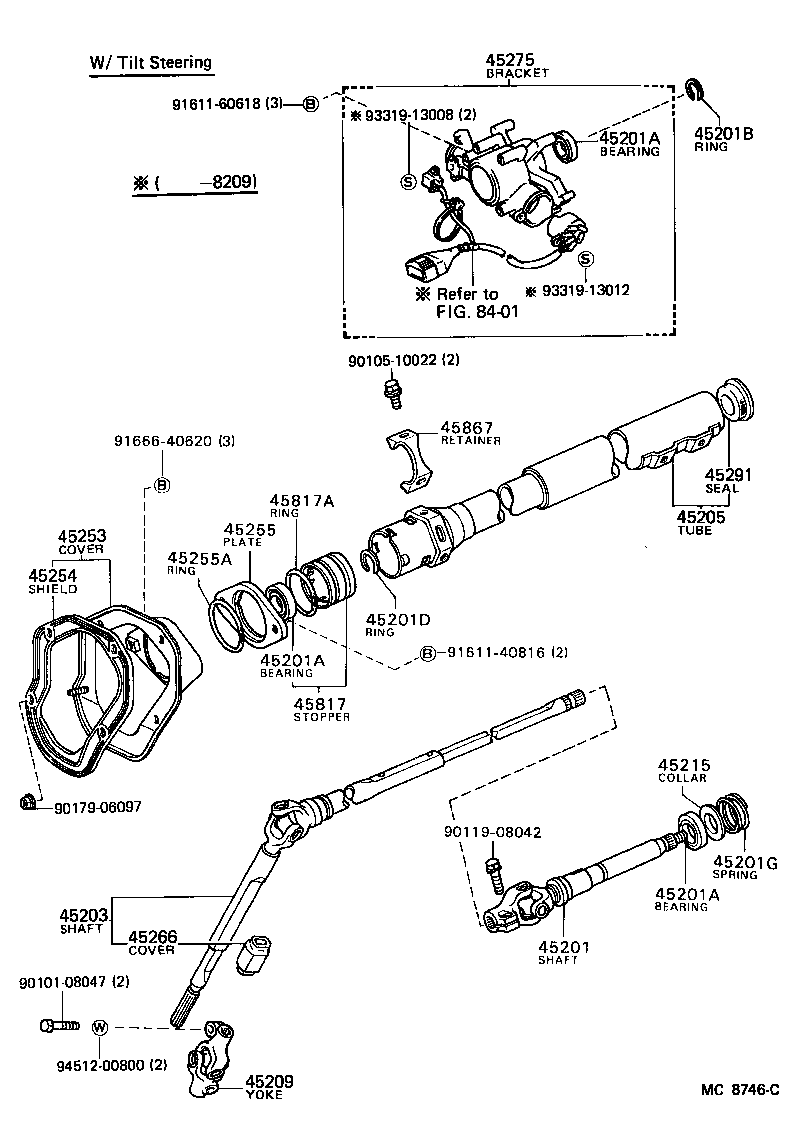

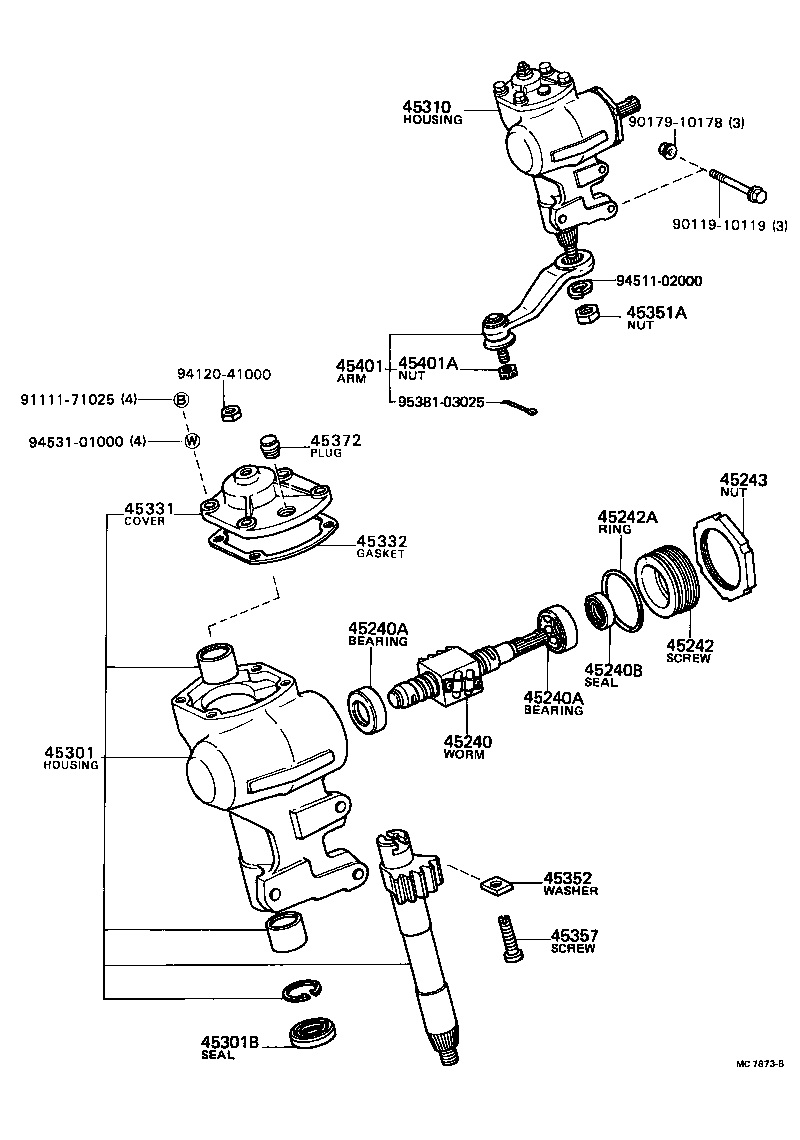

Figure MC6503A MC6503A 1979-08 → 1982-08 Figure 451766 451766 1982-08 → — Figure MC8745C MC8745C 1982-08 → — Figure MC8746C MC8746C 1982-08 → — Figure MC6481 MC6481 1979-08 → 1981-01 Figure MC7873B MC7873B 1981-01 → 1982-08 Figure MCA626 MCA626 1979-08 → 1982-08 Figure MC6504C MC6504C 1979-08 → 1982-08 Figure MC8747A MC8747A 1982-08 → — Figure MC8748A MC8748A 1982-08 → — Figure MC8857B MC8857B 1982-08 → —

Part groups

PNCDescription
44101K Worm Kit, Power Steering
44110K Gasket Kit, Power Steering Gear
44111K Gasket Kit, Power Steering Cross Shaft Overhaul
44205C Bush Sub-assy, Power Steering Rack
44205D Ring, O(FOR POWER STEERING RACK BUSH)
44205E Seal, Oil(FOR POWER STEERING RACK BUSH)
44206 Tube Sub-assy, Power Steering Cylinder
44206A Seal, Oil(FOR POWER STEERING CYLINDER)
44206B Washer, Claw(FOR POWER STEERING CYLINDER)
44206C Washer, Wave(FOR POWER STEERING CYLINDER)
44206D Nut(FOR POWER STEERING CYLINDER SET)
44210C Ring, O(FOR POWER STEERING CONTROL VALVE)
44210D Ring, Hole Snap(FOR POWER STEERING CONTROL VALVE)
44210E Seal, Oil(FOR POWER STEERING CONTROL VALVE)
44210F Bearing(FOR POWER STEERING CONTROL VALVE)
44210K Gasket Kit, Power Steering Control Valve Overhaul
44211 Housing, Control Valve
44250K Gasket Kit, Power Steering Gear(FOR RACK & PINION)
44252B Bearing(FOR POWER STEERING PINION)
44253B Ring, O(FOR POWER STEERING RACK HOUSING)
44253D Cap, Power Steering Rack Housing
44275 Stopper, Cylinder End
45081 Support Sub-assy, Tilt Steering
45081A Spring, Tension(FOR TILT STEERING)
45081B Cord(FOR TILT STEERING)
45081C Reinforce, Tilt Steering Support
45136C Cable, Bond(FOR HORN EARTH)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45201E Plug, Plate(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45215 Collar, Main Shaft Bearing Thrust
45230 Coupling Assy, Flexible
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45266 Cover, Steering Intermediate Shaft Dust
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45291 Seal, Main Shaft Upper Dust
45292 Seal, Main Shaft Lower Dust
45501B Bearing, Radial Ball(FOR STEERING RACK HOUSING)
45518 Bracket, Steering Rack Housing, NO.3
45807 Bracket Sub-assy, Steering Column Upper Support
45813 Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45815 Shim, Tilt Steering Support
45817 Stopper, Steering Shaft Thrust
45817A Ring, O(FOR STEERING SHAFT THRUST STOPPER)
45819 Retainer, Tilt Lever
45819A Collar(FOR TILT LEVER RETAINER)
45824 Pawl, Tilt Steering
45826 Lever, Steering Tilt
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826B Pin(FOR STEERING TILT LEVER)
45867 Retainer, Steering Main Shaft Stopper
45892 Bolt, Tilt Steering Support Stopper
45892A Cover, Tilt Steering Support Stopper
45892B Support, Tilt Steering Column Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
