Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 3 illustrations

Illustrations

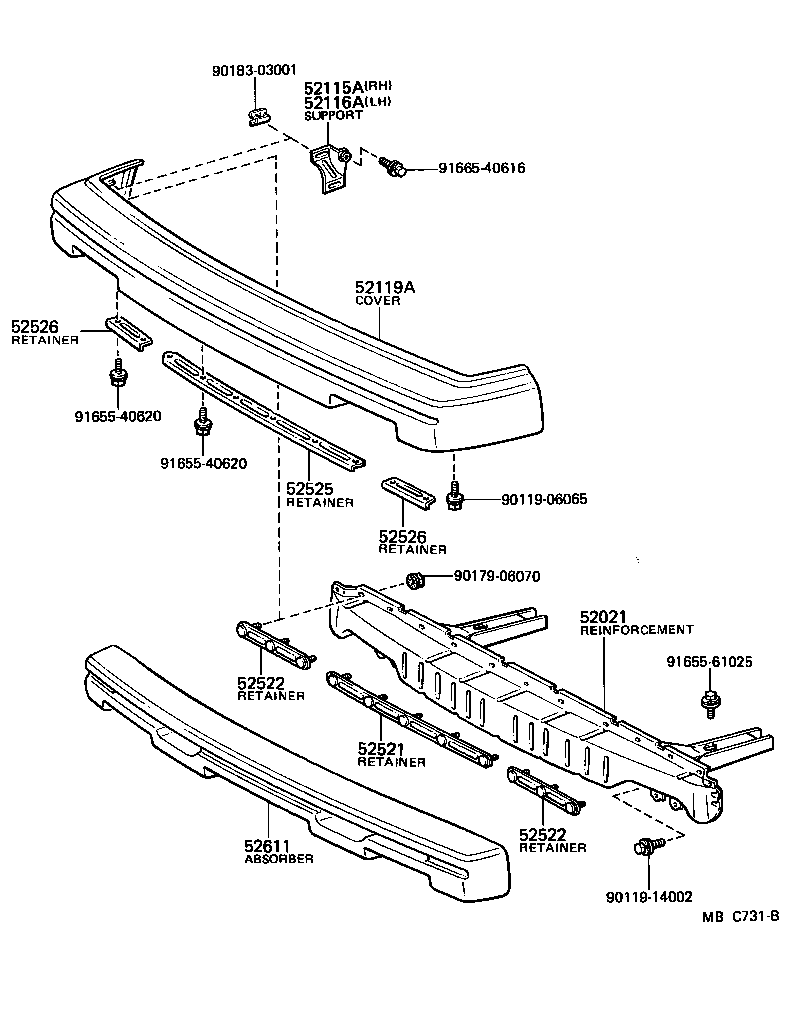

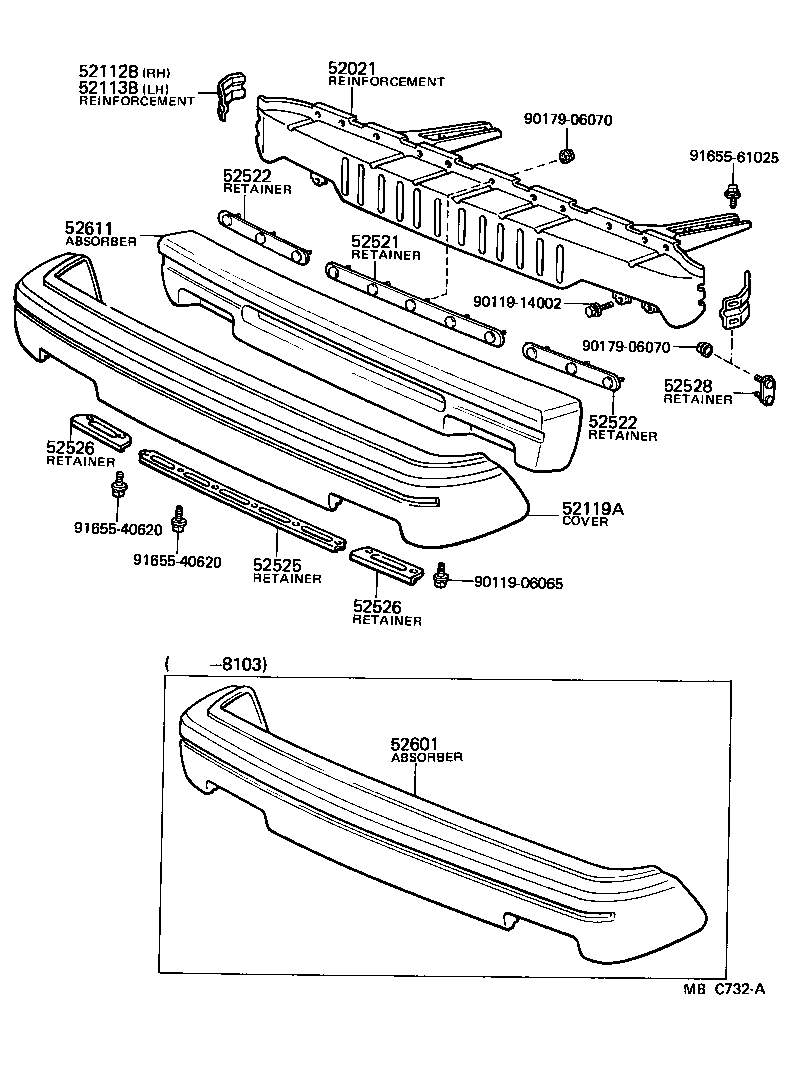

Figure MBA330E MBA330E 1979-08 → 1981-08 Figure MBC731B MBC731B 1981-08 → — Figure MBC732A MBC732A 1979-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52112B Reinforcement, Front Bumper Side Bar, RH
52113B Reinforcement, Front Bumper Side Bar, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52192 Plate, Bumper Moulding Mounting, Front
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52528 Retainer, Front Bumper, Lower Corner
52601 Absorber Sub-assy, Front Bumper Energy
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
