Toyota Corolla
1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States
Discontinued model
Data version 1984-01

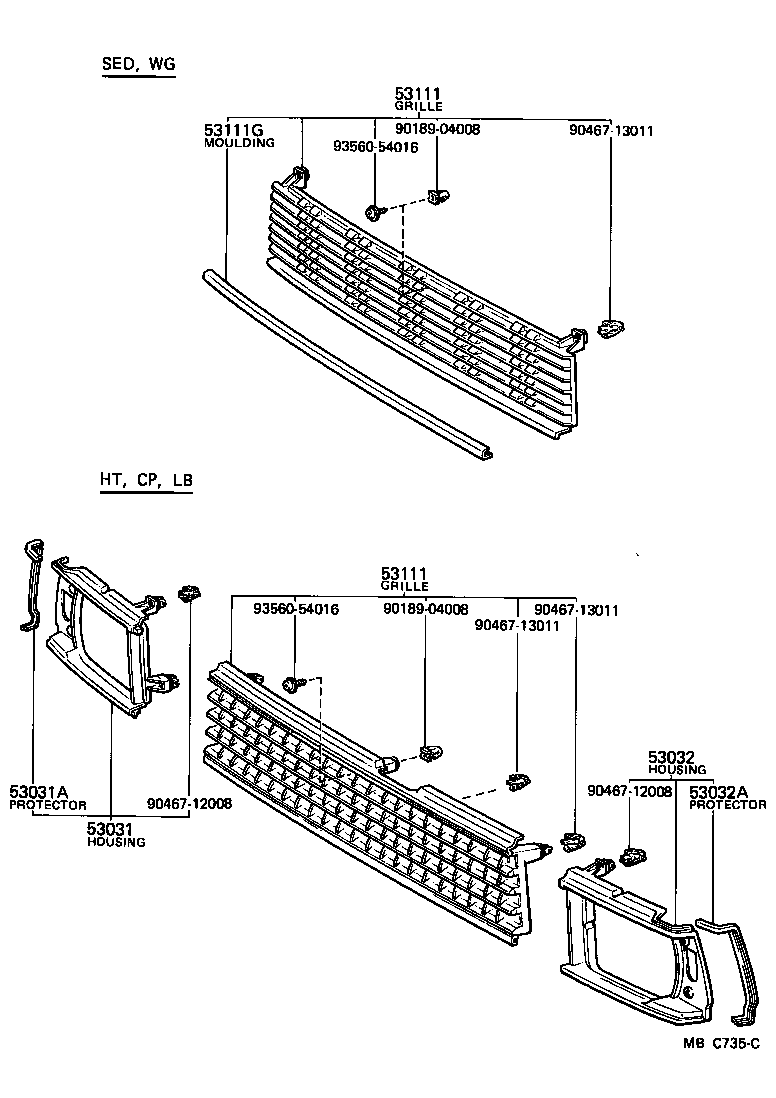

Radiator Grille
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53031 | Housing, Headlamp, RH |
| 53031A | Protector, Headlamp Door, RH |
| 53032 | Housing, Headlamp, LH |
| 53032A | Protector, Headlamp Door, LH |
| 53111 | Grille, Radiator |
| 53111C | Moulding, Radiator Grille, Upper |
| 53111G | Moulding, Radiator Grille, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
