Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

19 part groups · 3 illustrations

Illustrations

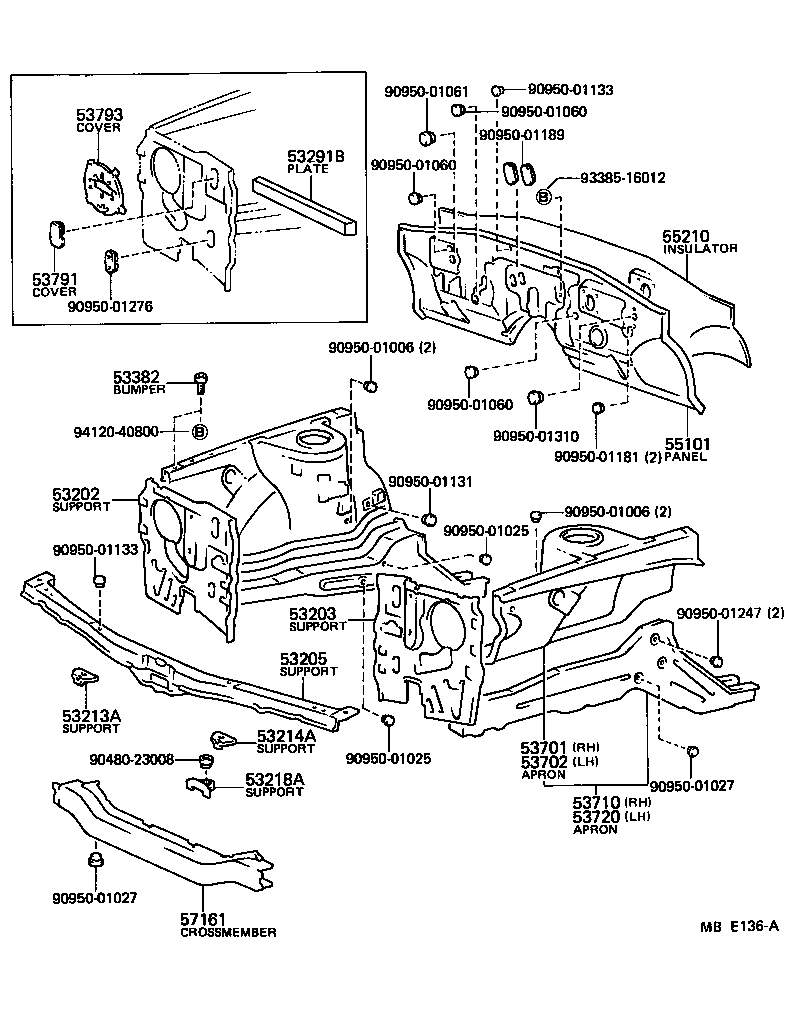

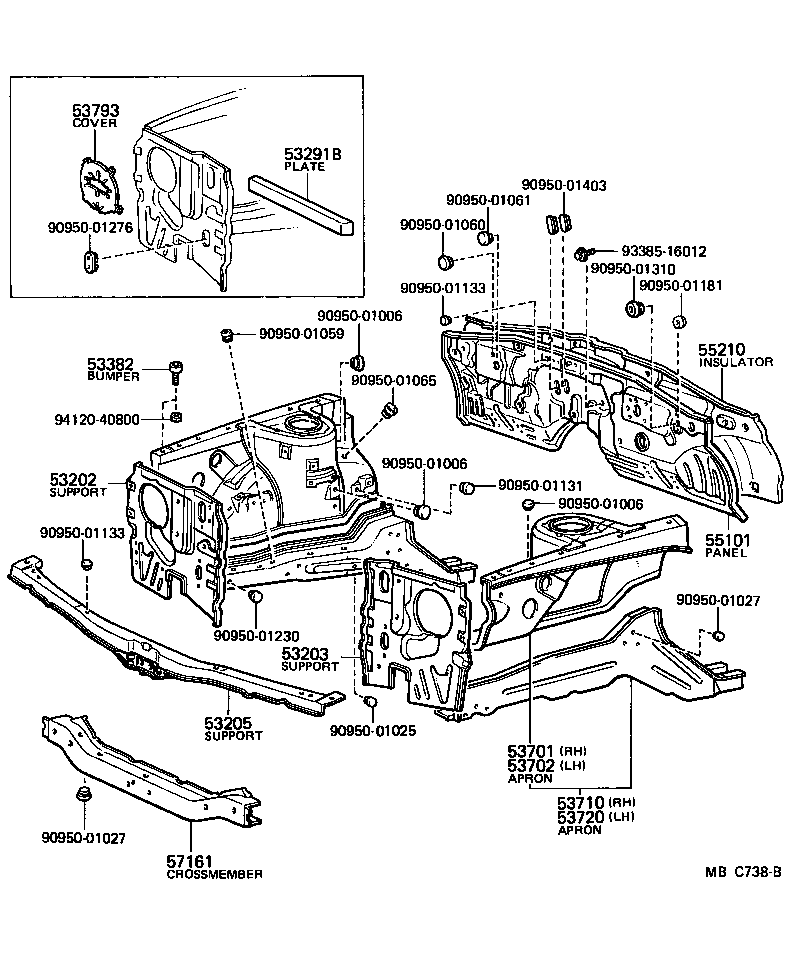

Figure MBA698F MBA698F 1979-08 → 1981-08 Figure MBC738B MBC738B 1981-08 → 1982-08 Figure MBE136A MBE136A 1982-08 → —

Part groups

PNCDescription
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53213A Support, Radiator, Upper RH
53214A Support, Radiator, Upper LH
53218A Support, Radiator, Lower
53291B Plate, Radiator Cover
53382 Bumper, Hood, Front
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53710 Apron Assy, W/Front Side Member, RH
53720 Apron Assy, W/Front Side Member, LH
53791 Cover, Cool Air Intake Hole
53793 Cover, Headlamp Wire Harness Hole, NO.1
53795 Cover, Headlamp Wire Harness Hole, RH
53796 Cover, Headlamp Wire Harness Hole, LH
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
