Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

19 part groups · 2 illustrations

Illustrations

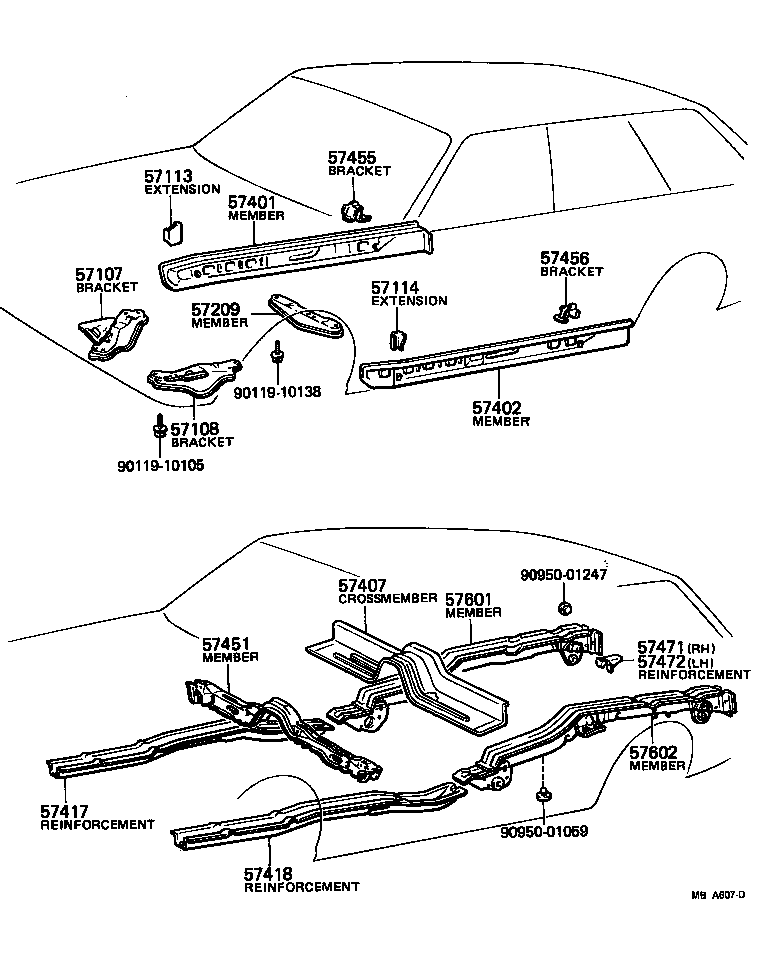

Figure MAA538G MAA538G 1979-08 → — Figure MBA607D MBA607D 1979-08 → —

Part groups

PNCDescription
57107 Bracket Sub-assy, Strut Bar, RH
57108 Bracket Sub-assy, Strut Bar, LH
57113 Extension, Front Side Member, RH
57114 Extension, Front Side Member, LH
57209 Member Sub-assy, Engine Rear Support
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57403A Member Sub-assy, Center Floor Cross, NO.3
57405A Member Sub-assy, Center Floor Cross, NO.2
57407 Crossmember Sub-assy, Center Floor, NO.1
57417 Reinforcement, Front Floor Under, RH
57418 Reinforcement, Front Floor Under, LH
57451 Member, Front Floor Cross
57455 Bracket, Front Seat Mounting, Outside RH
57456 Bracket, Front Seat Mounting, Outside LH
57471 Reinforcement, Seat Belt Anchor TO Floor Member, RH
57472 Reinforcement, Seat Belt Anchor TO Floor Member, LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
