Toyota Corolla
1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States
Discontinued model
Data version 1984-01

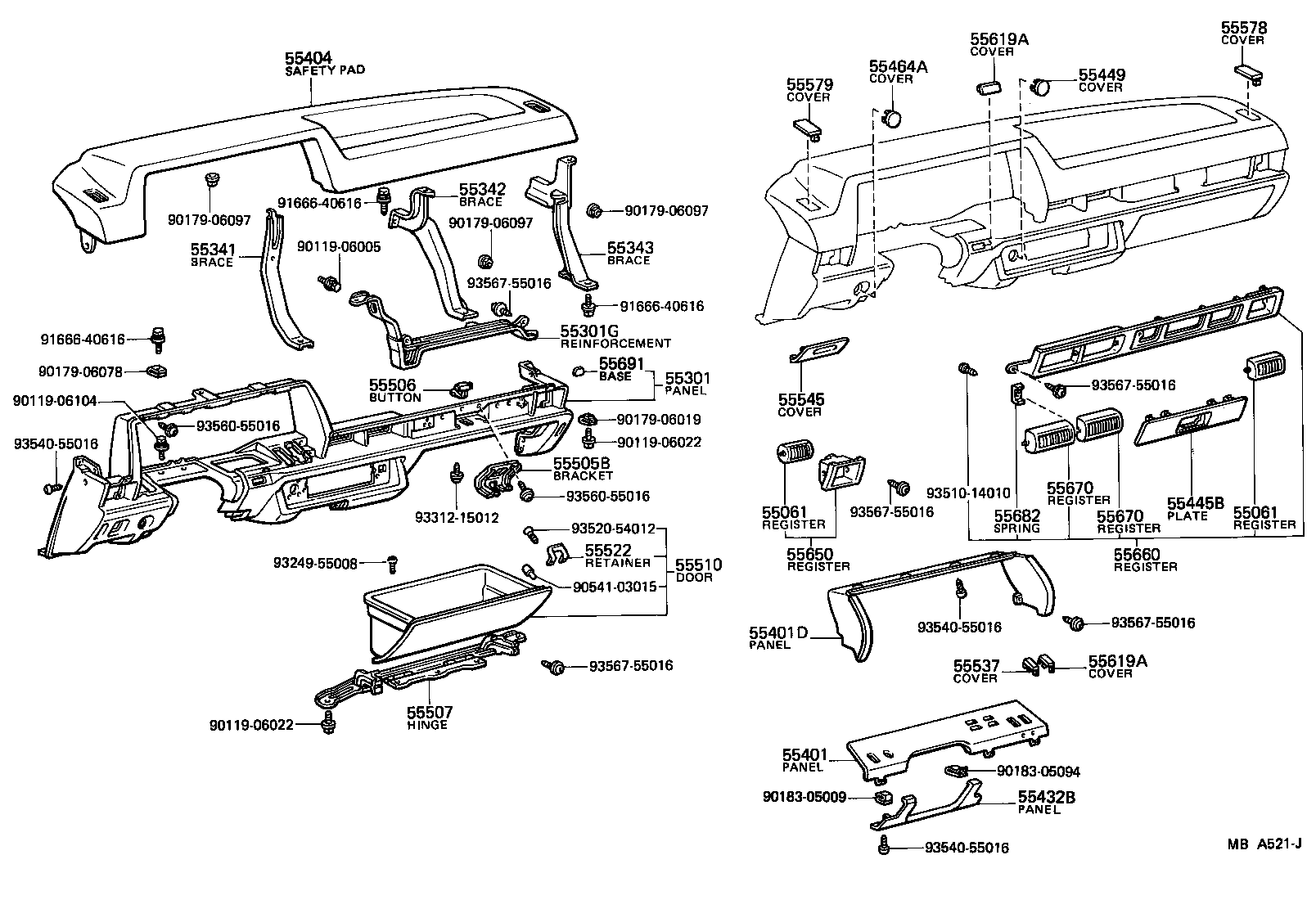

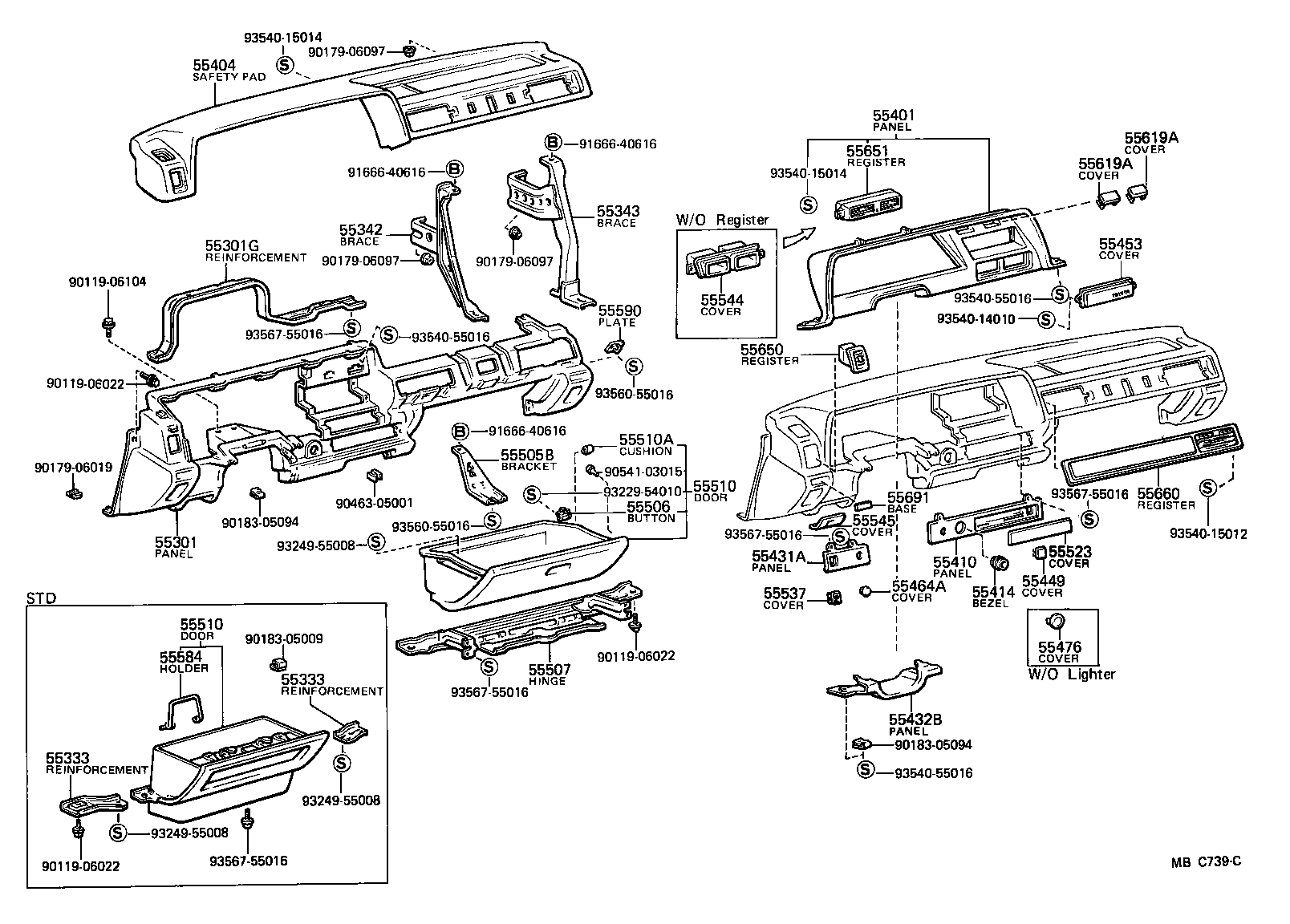

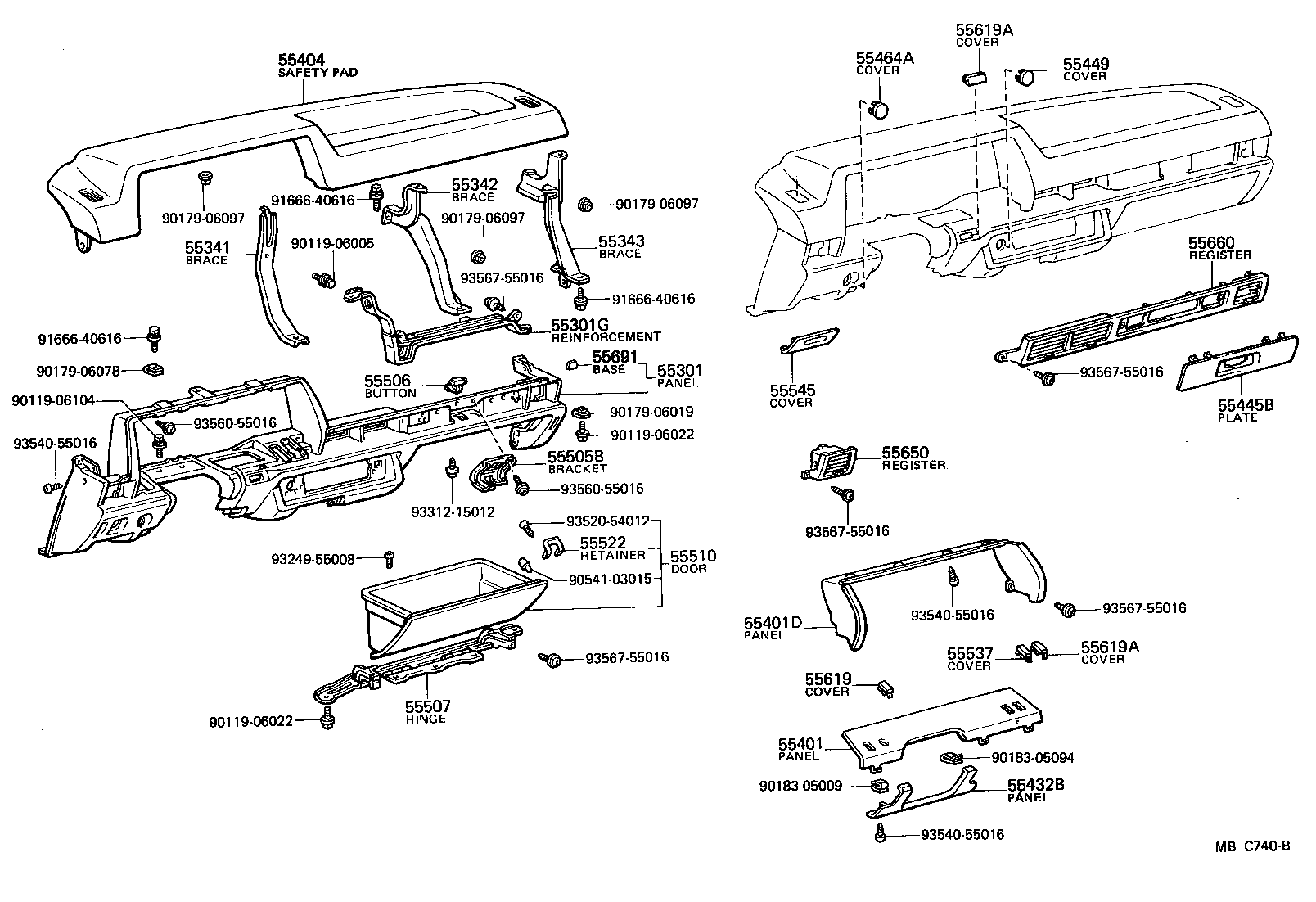

Instrument Panel & Glove Compartment
41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55301 | Panel Sub-assy, Instrument |
| 55301G | Reinforcement Sub-assy, Instrument Panel |
| 55333 | Reinforcement, Instrument Panel, NO.3 |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342 | Brace, Instrument Panel, NO.2 |
| 55343 | Brace, Instrument Panel, NO.3 |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55401D | Panel, Instrument Cluster Finish, Upper |
| 55404 | Safety Pad Sub-assy, Instrument Panel, Upper |
| 55410 | Panel Assy, Instrument Cluster Finish, NO.2 |
| 55414 | Bezel, Cigar Lighter Hole |
| 55431A | Panel, Instrument Panel Finish |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55445B | Plate, Instrument Panel Finish |
| 55449 | Cover, Cooler Switch Hole |
| 55453 | Cover, Radio Tuner Opening |
| 55464A | Cover, Choke Knob Hole |
| 55476 | Cover, Cigarette Lighter Hole |
| 55505B | Bracket, Glove Compartment Door Lock Mounting |
| 55506 | Button Sub-assy, Glove Compartment Door Lock |
| 55507 | Hinge Sub-assy, Glove Compartment Door |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55522 | Retainer, Glove Compartment Male |
| 55523 | Cover, Heater Control Opening |
| 55537 | Cover, Rear Window Defogger Switch Hole |
| 55544 | Cover, Instrument Panel Register Hole |
| 55545 | Cover, Fuse Box Opening |
| 55578 | Cover, Side Defroster Opening, RH |
| 55579 | Cover, Side Defroster Opening, LH |
| 55584 | Holder, Map |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55619 | Cover, Switch Hole |
| 55619A | Cover, Switch Hole, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55651 | Register, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55682 | Spring, Instrument Panel Register Support |
| 55691 | Base, Instrument Panel Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
