Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Ventilator

7 part groups · 2 illustrations

Illustrations

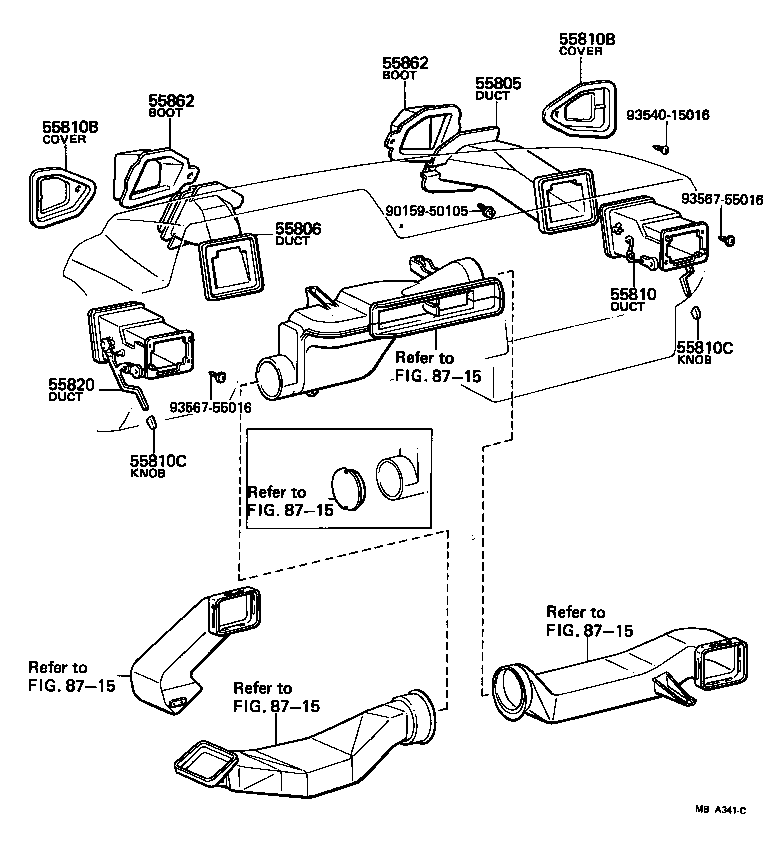

Figure MBA340D MBA340D 1979-08 → — Figure MBA341C MBA341C 1979-08 → —

Part groups

PNCDescription
55805 Duct Sub-assy, Side Ventilator, NO.2 RH
55806 Duct Sub-assy, Side Ventilator, NO.2 LH
55810 Duct Assy, Side Ventilator, RH
55810B Cover, Side Ventilator
55810C Knob Sub-assy, Control(FOR VENTILATOR DUCT)
55820 Duct Assy, Side Ventilator, LH
55862 Boot, Side Ventilator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
