Toyota Corolla
1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States
Discontinued model
Data version 1984-01

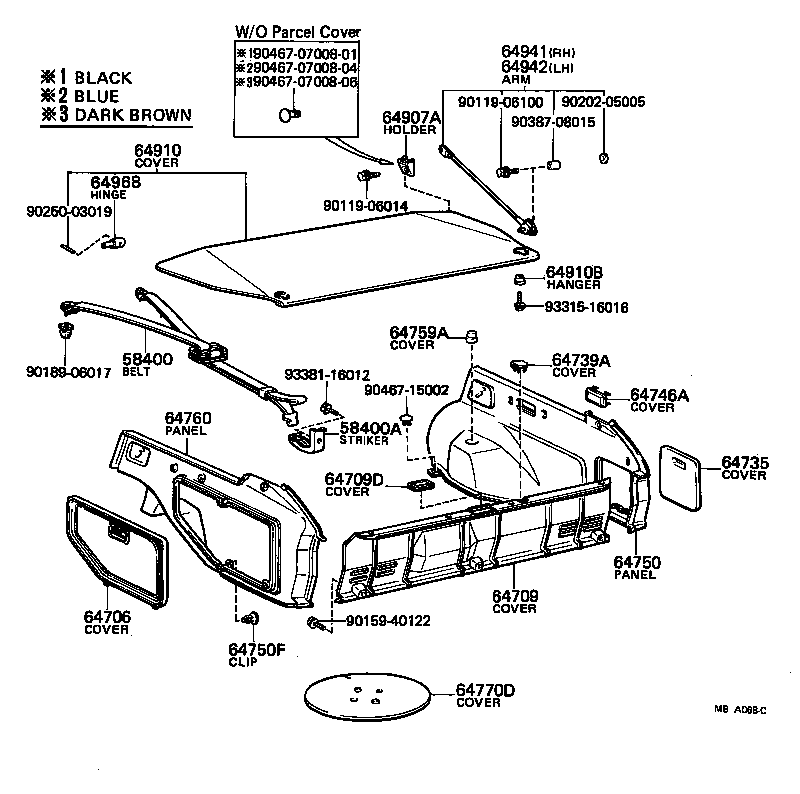

Deck Board & Deck Trim Cover
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58400 | Belt Assy, Luggage Hold, NO.1 |
| 58400A | Striker, Luggage Hold Belt |
| 64303 | Bracket Sub-assy, Package Tray, RH |
| 64304 | Bracket Sub-assy, Package Tray, LH |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64387 | Hanger, Package Tray Trim |
| 64706 | Cover Sub-assy, Quarter Trim, Jack |
| 64709 | Cover Sub-assy, Lower Back Panel |
| 64709D | Cover, Back Door Striker |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64739A | Cover, Deck Trim Rear Washer |
| 64746A | Cover, Deck Trim Side Lamp Hole |
| 64750 | Panel Assy, Deck Side Trim, RH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64759A | Cover, Shock Absorber Head |
| 64760 | Panel Assy, Deck Side Trim, LH |
| 64770D | Cover Assy, Spare Wheel |
| 64907A | Holder Sub-assy, Tonneau Cover |
| 64910 | Cover Assy, Parcel |
| 64910B | Hanger, Parcel Cover |
| 64941 | Arm Sub-assy, Tonneau Cover Lift, RH |
| 64942 | Arm Sub-assy, Tonneau Cover Lift, LH |
| 64968 | Hinge, Tonneau Cover, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
