Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

12 part groups · 3 illustrations

Illustrations

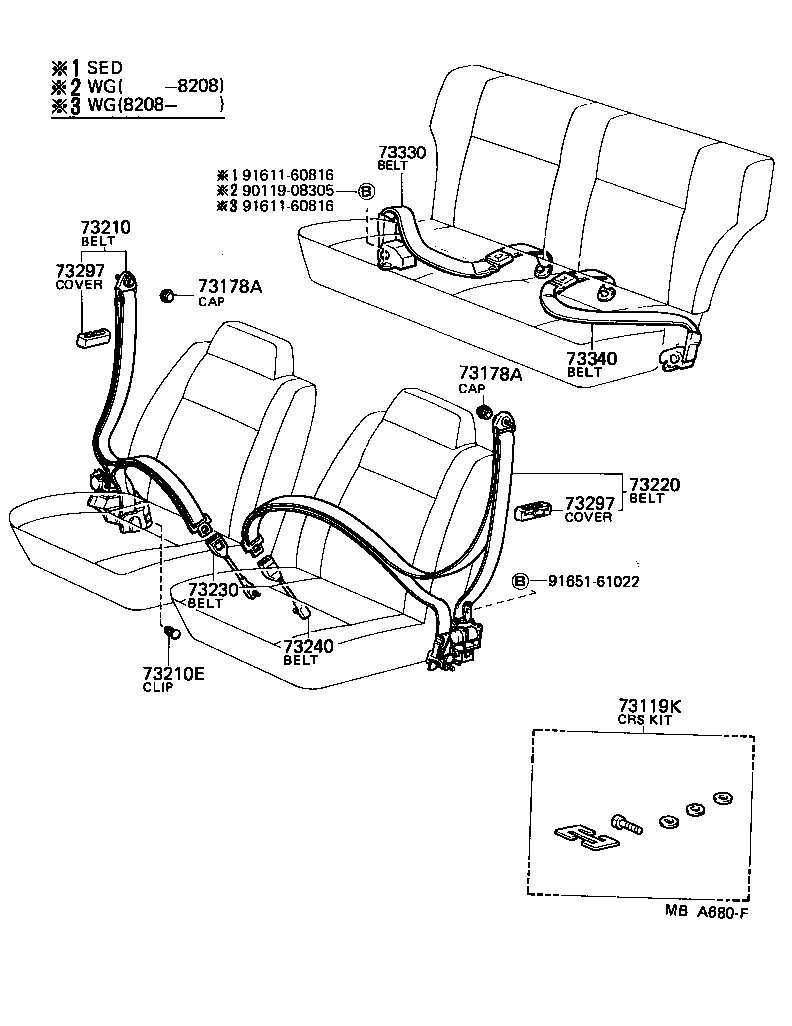

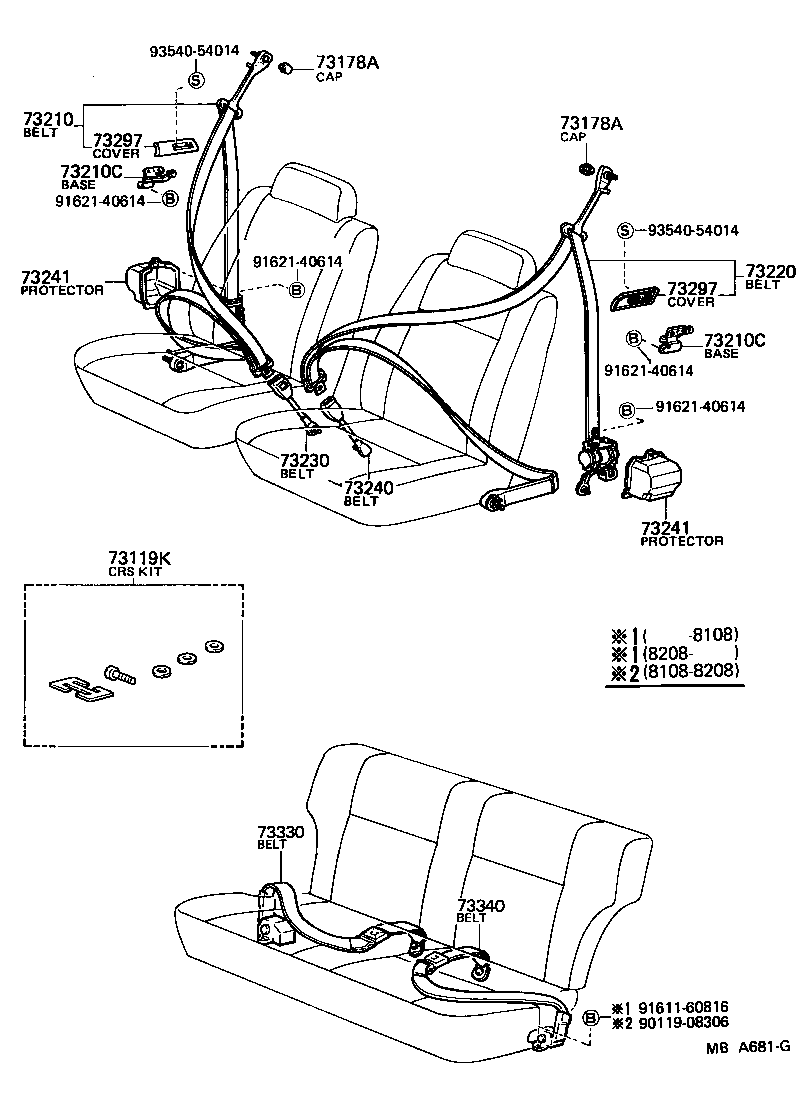

Figure MBA679F MBA679F 1979-08 → — Figure MBA680F MBA680F 1979-08 → — Figure MBA681G MBA681G 1979-08 → —

Part groups

PNCDescription
73119K Seat Kit, Child Restraint
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73210C Base, Quarter Trim Upper Belt Hole Cover
73210E Clip (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73241 Protector OR Case, Belt Retractor
73297 Cover, Quarter Trim OR Center Pillar Belt Hole
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
