Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

16 part groups · 4 illustrations

Illustrations

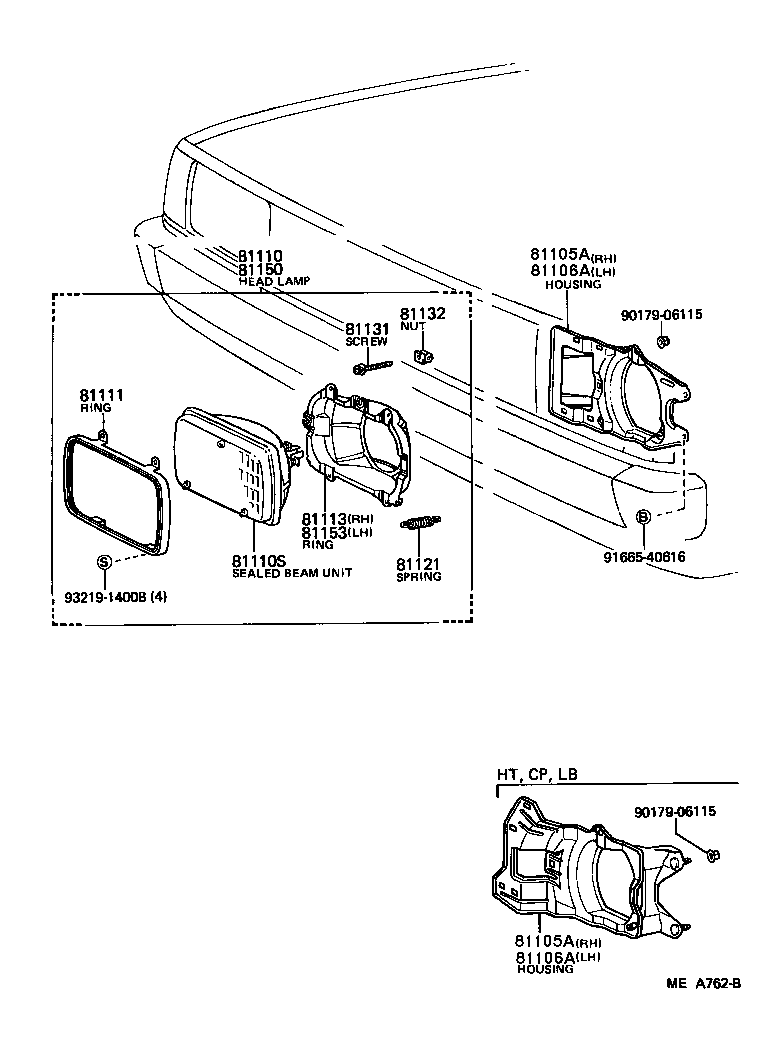

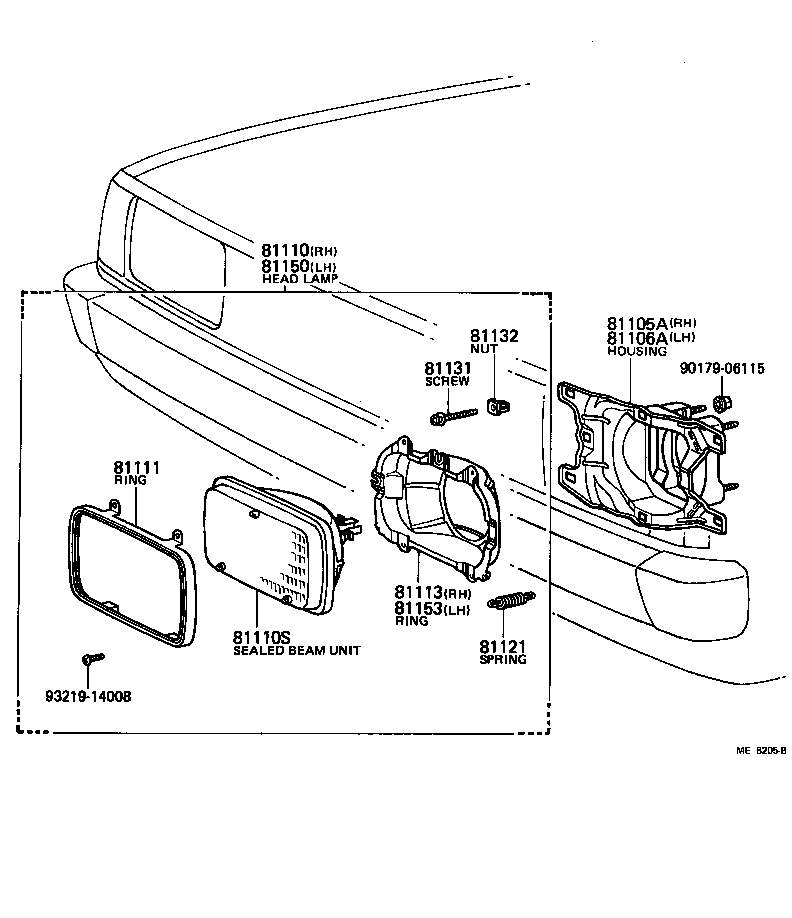

Figure ME8702A ME8702A 1979-08 → 1980-08 Figure ME8205B ME8205B 1979-08 → 1980-08 Figure ME8205B ME8205B 1980-08 → 1981-08 Figure MEA762B MEA762B 1981-08 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81105A Bracket Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81106A Bracket Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111 Ring, Sealed Beam Retaining
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81132 Nut, Headlamp Self Locking
81150 Headlamp Assy, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
