Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

12 part groups · 3 illustrations

Illustrations

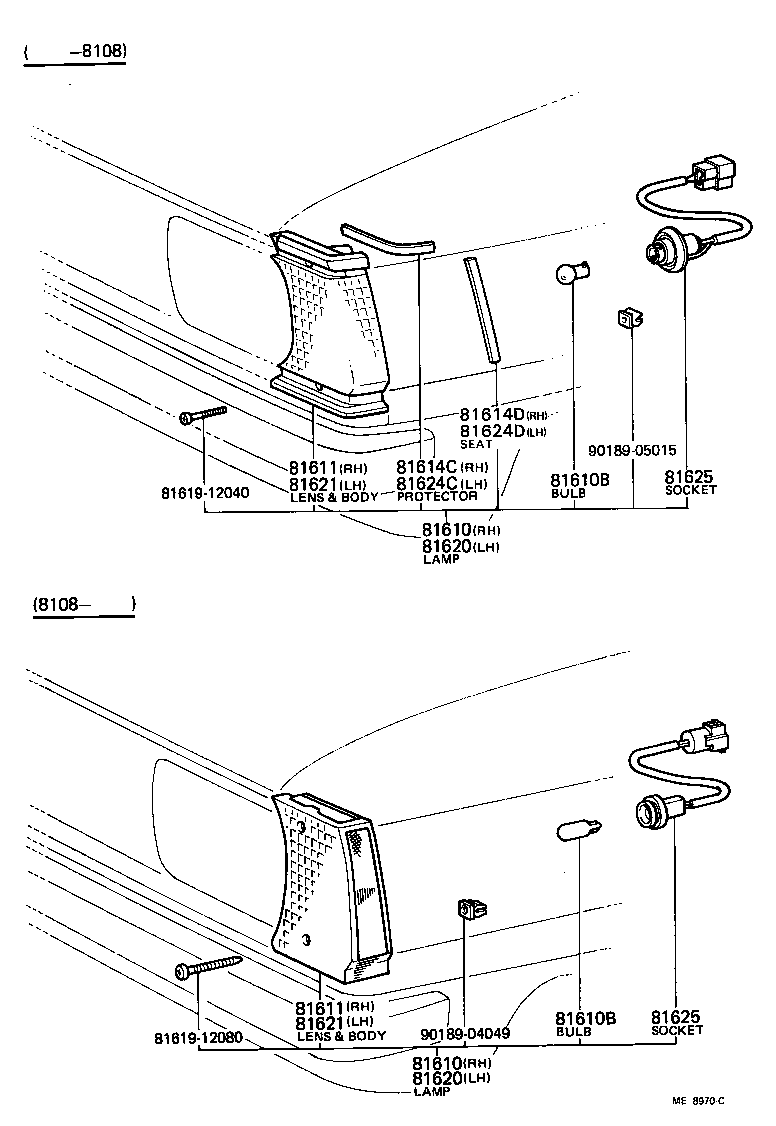

Figure ME8703A ME8703A 1979-08 → 1981-08 Figure MEA646C MEA646C 1981-08 → — Figure ME8970C ME8970C 1979-08 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81612 Gasket, Parking And Clearance Lamp Lens, RH
81614C Protector, Clearance Lamp, RH
81614D Seat, Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81622 Gasket, Parking And Clearance Lamp Lens, LH
81624C Protector, Clearance Lamp, LH
81624D Seat, Clearance Lamp, LH
81625 Socket And Wire, Parking And Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
