Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

11 part groups · 10 illustrations

Illustrations

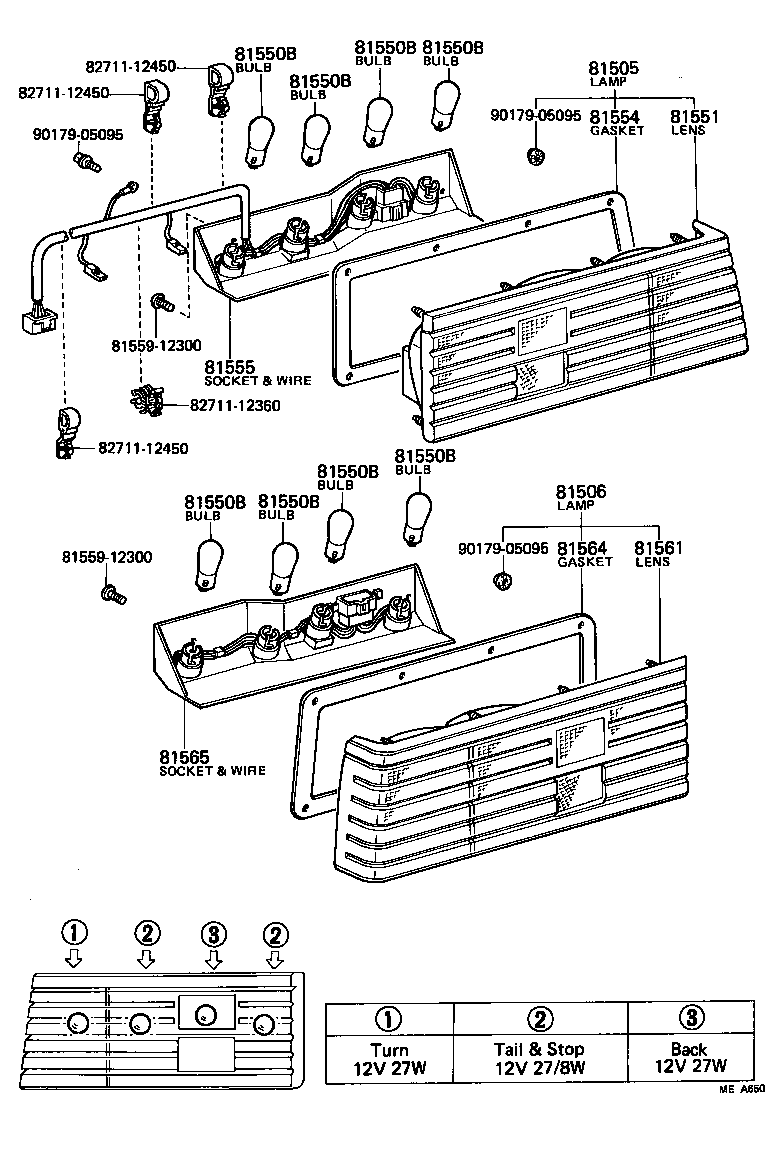

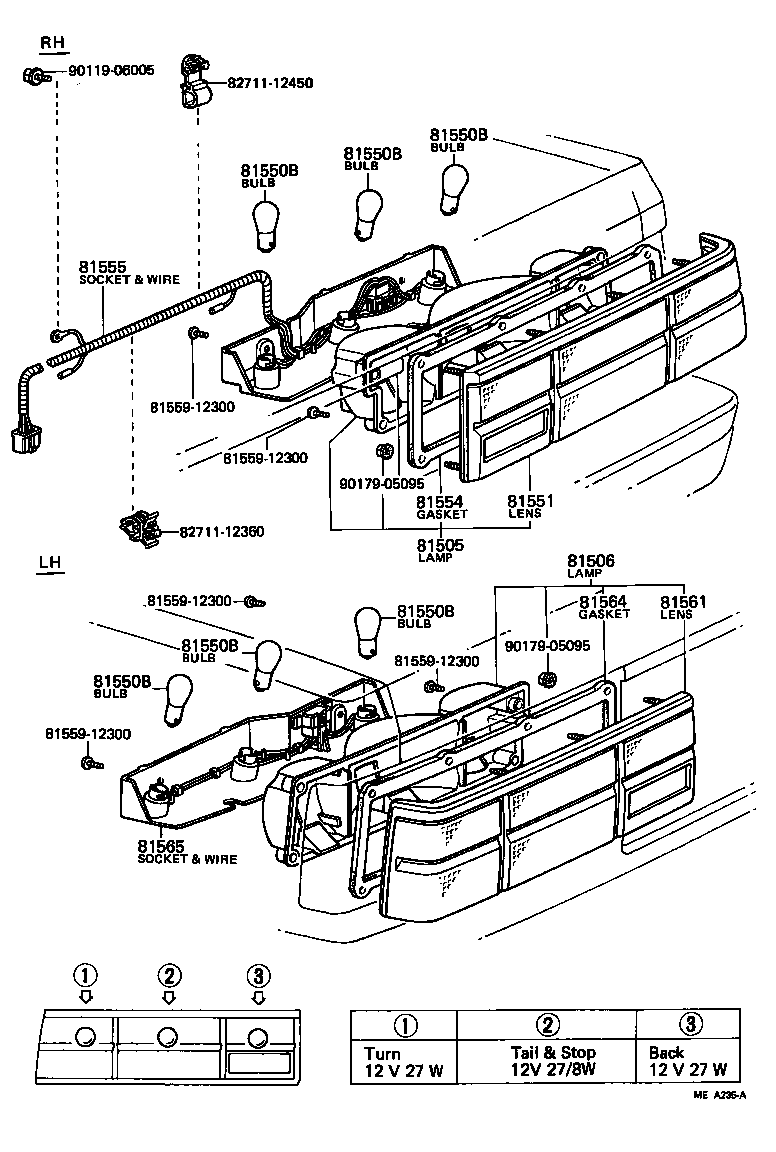

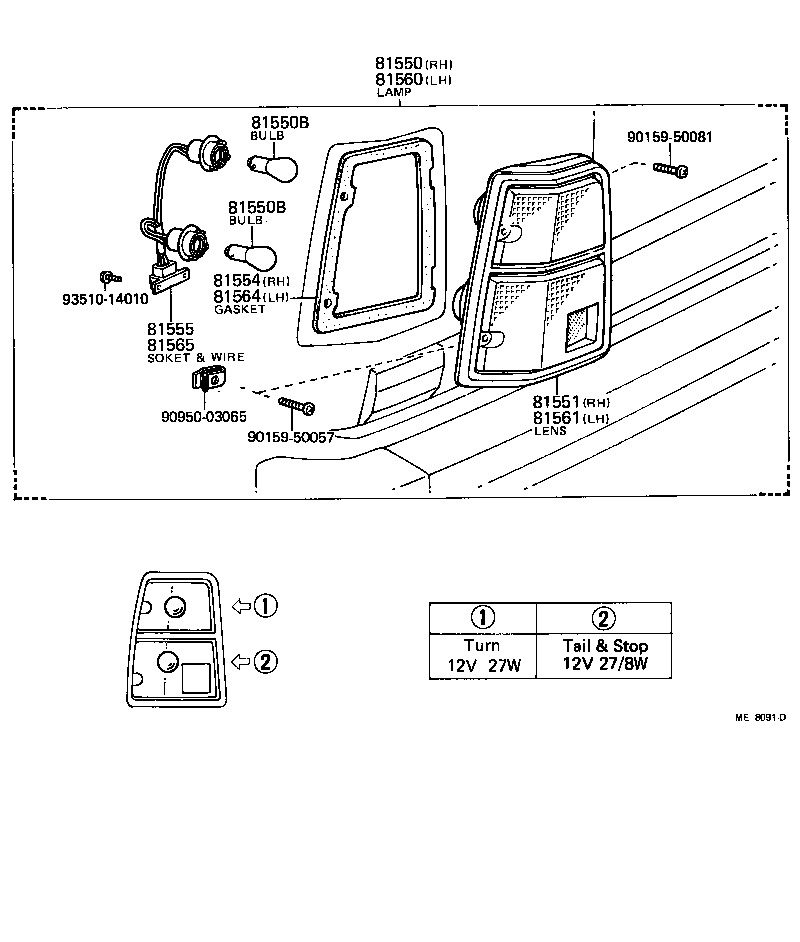

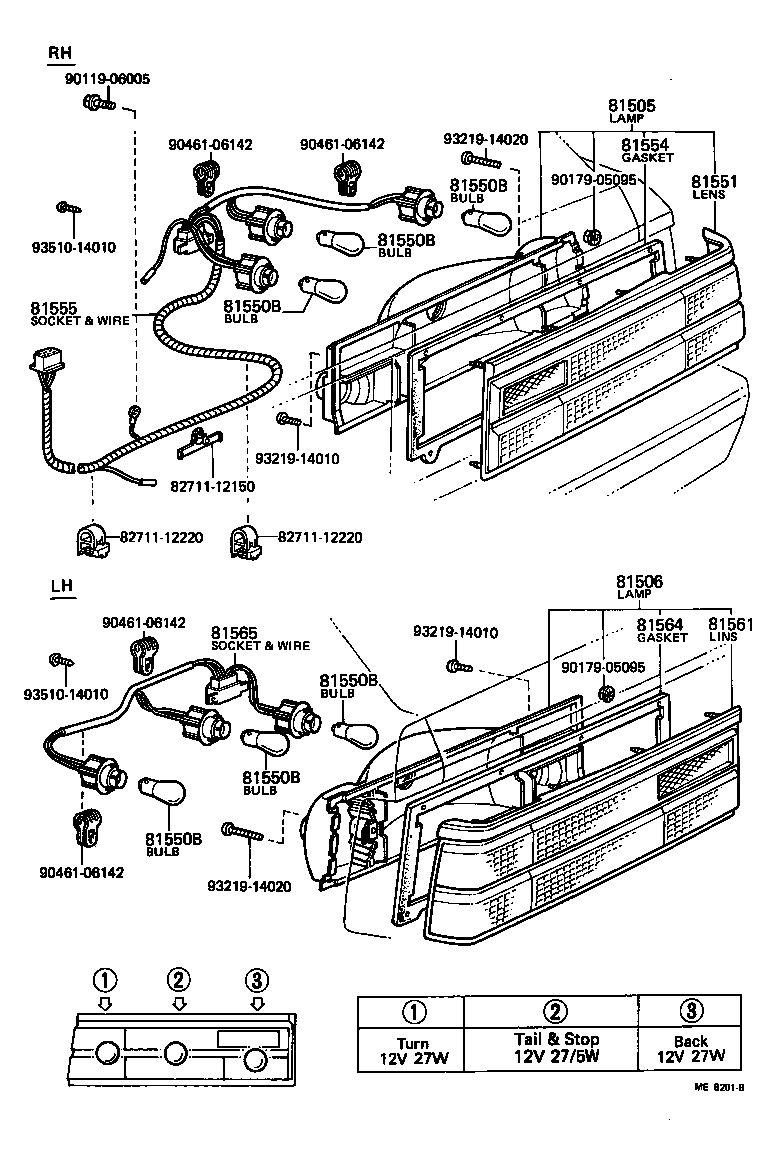

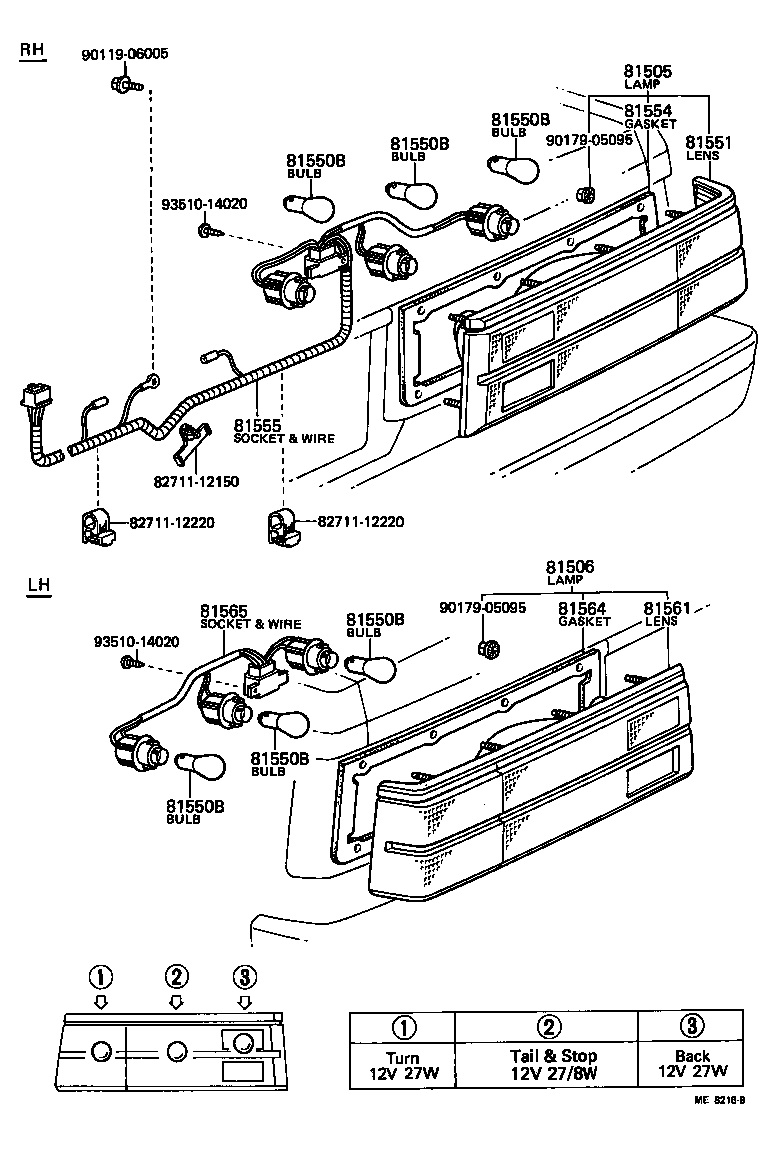

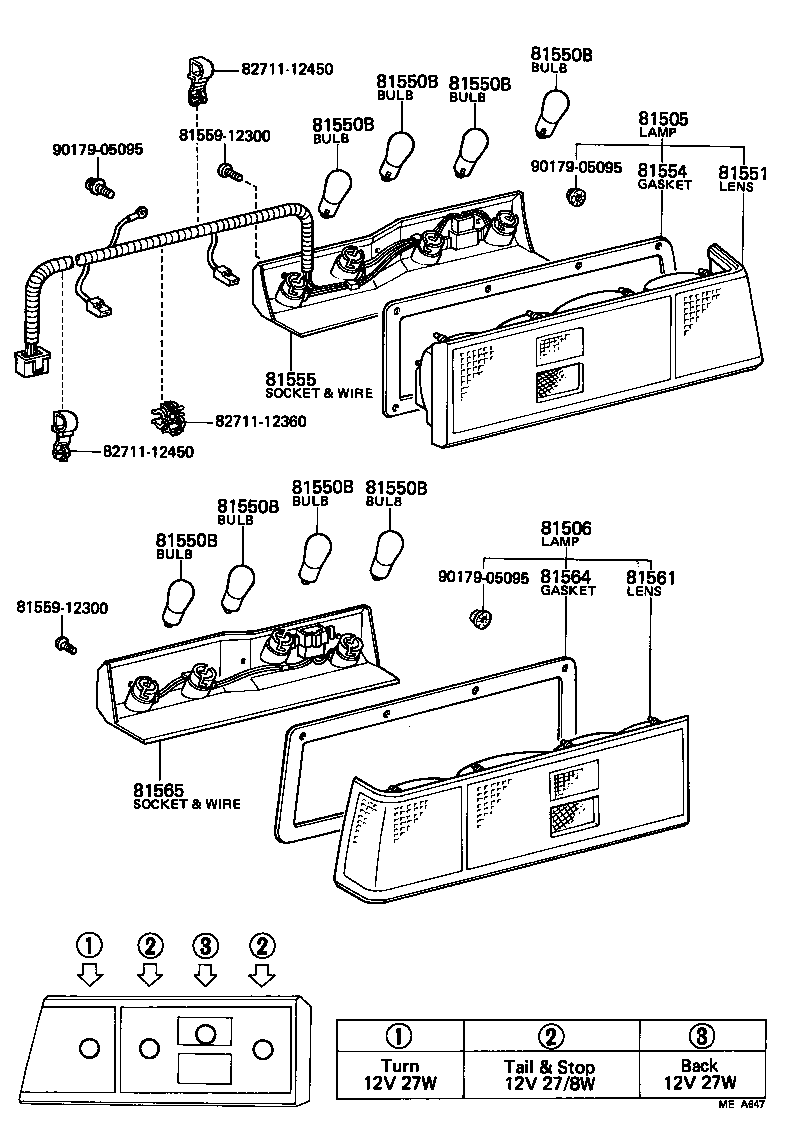

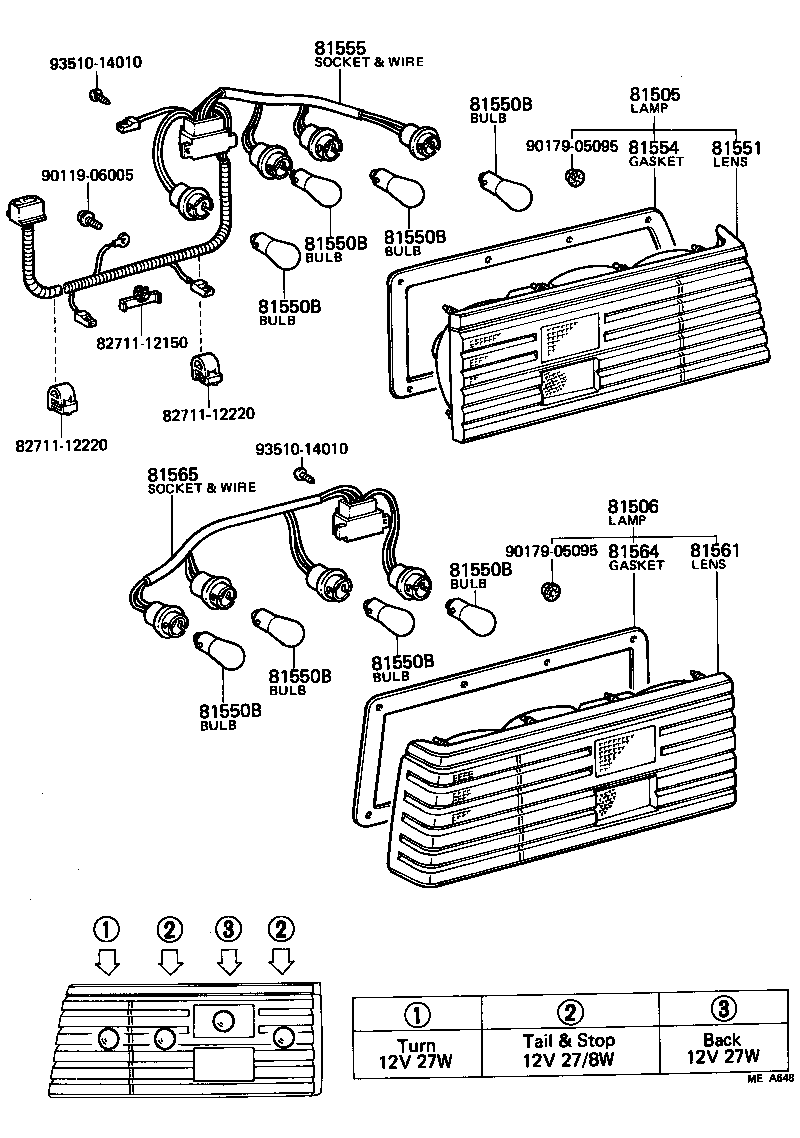

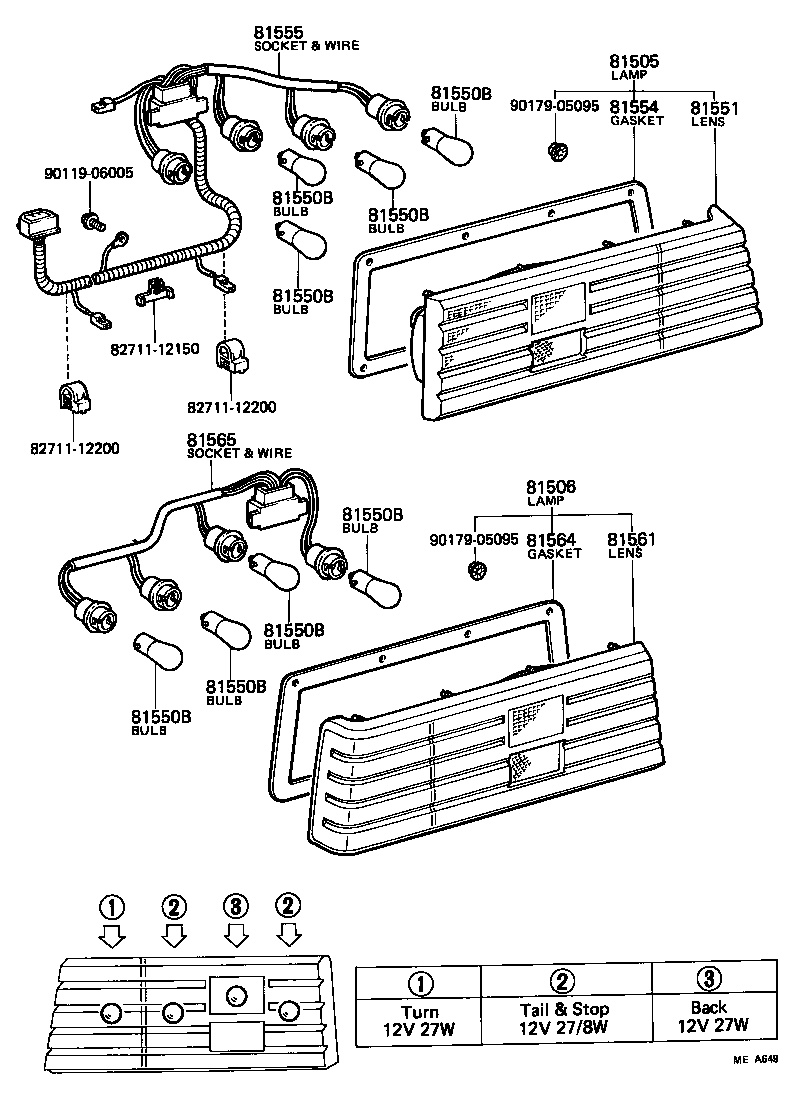

Figure ME8215B ME8215B 1979-08 → 1981-08 Figure MEA647 MEA647 1981-08 → — Figure ME8201B ME8201B 1979-08 → 1981-08 Figure MEA648 MEA648 1981-08 → — Figure ME8216B ME8216B 1979-08 → 1981-08 Figure MEA649 MEA649 1981-08 → — Figure MEA235A MEA235A 1981-01 → 1981-08 Figure MEA650 MEA650 1981-08 → — Figure ME8091D ME8091D 1979-08 → 1981-08 Figure MEA651B MEA651B 1981-08 → —

Part groups

PNCDescription
81505 Lamp Sub-assy, Rear Combination, RH
81506 Lamp Sub-assy, Rear Combination, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
