Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 10 illustrations

Illustrations

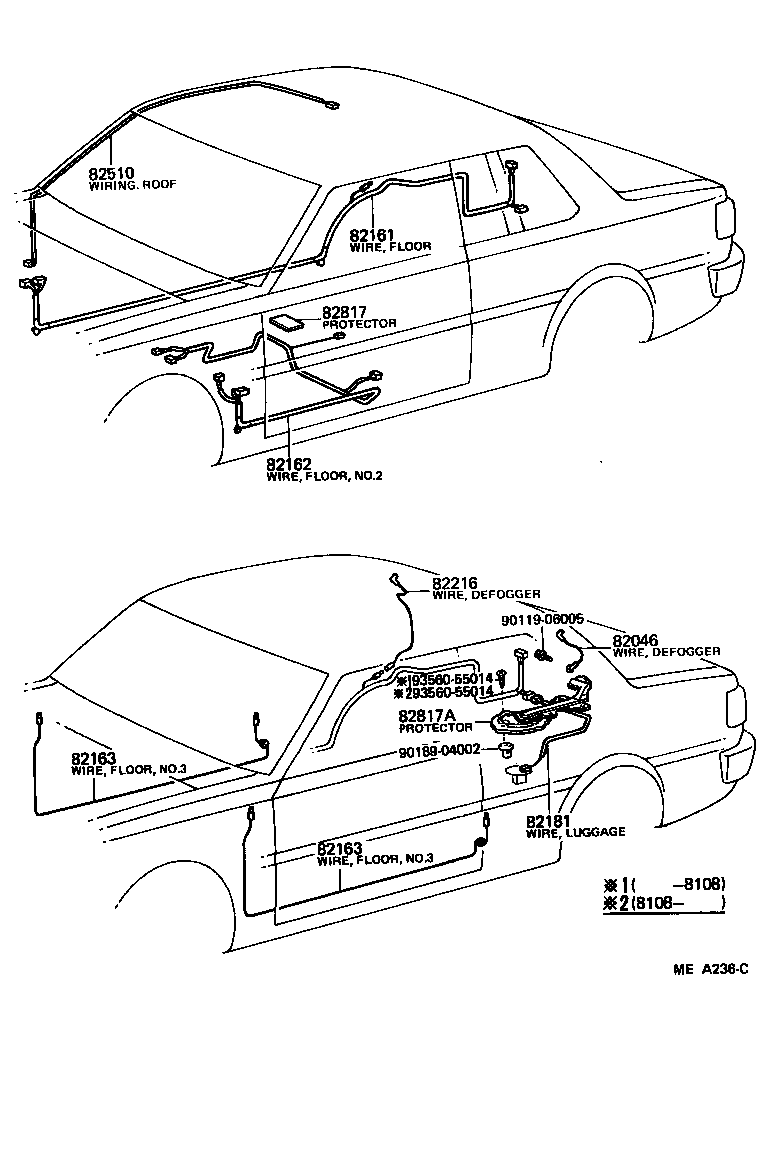

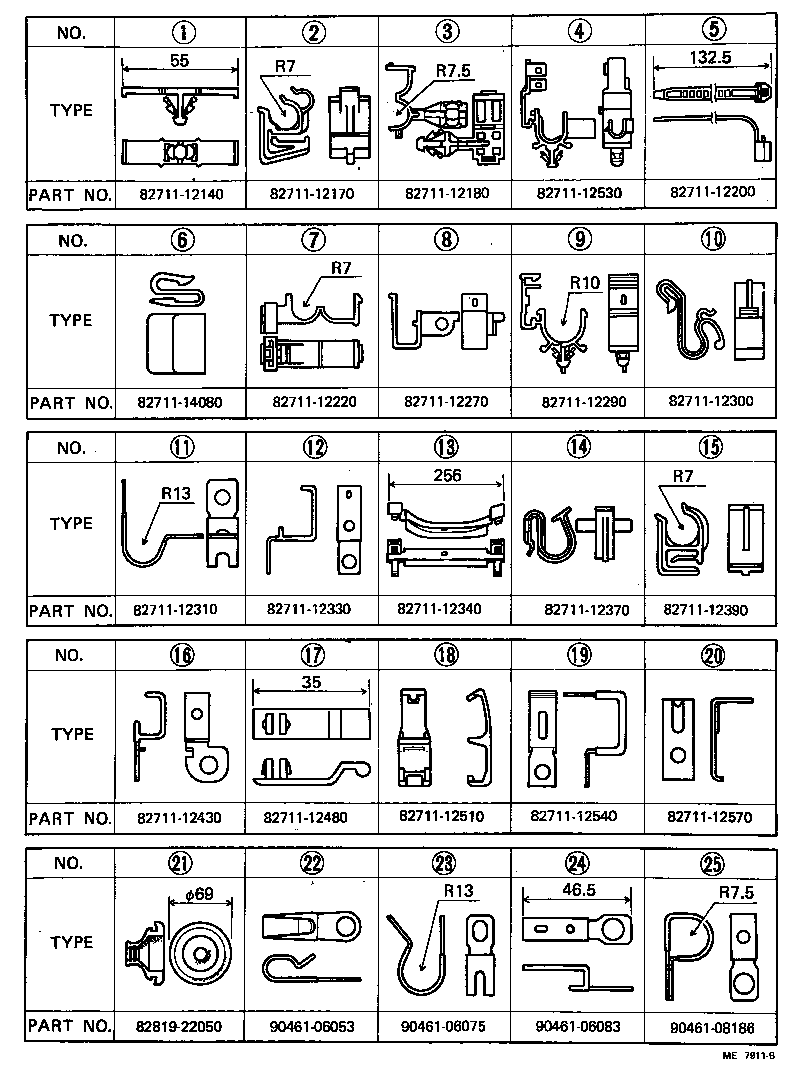

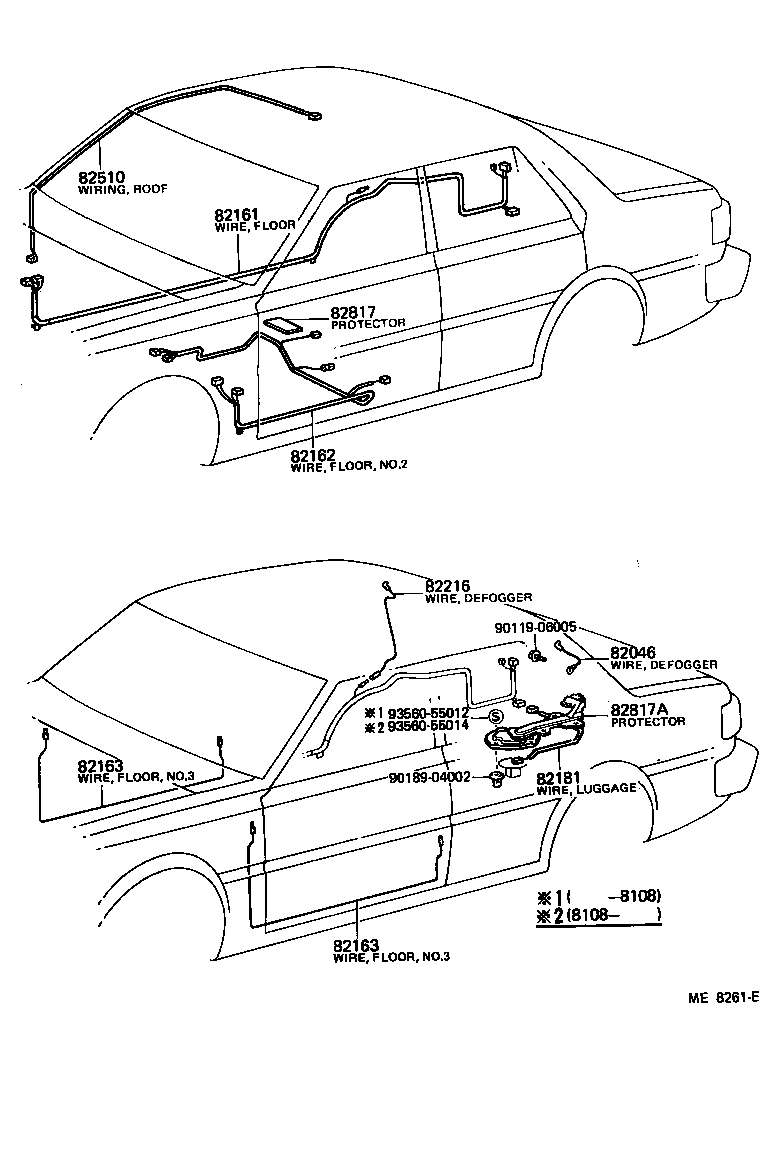

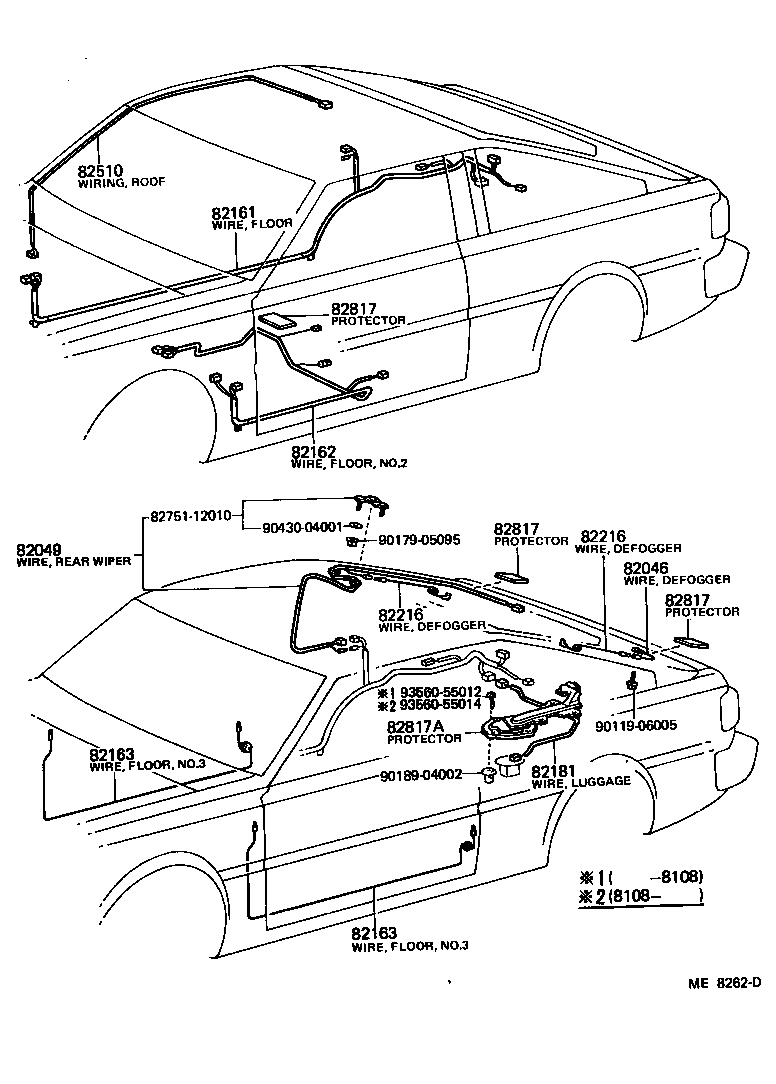

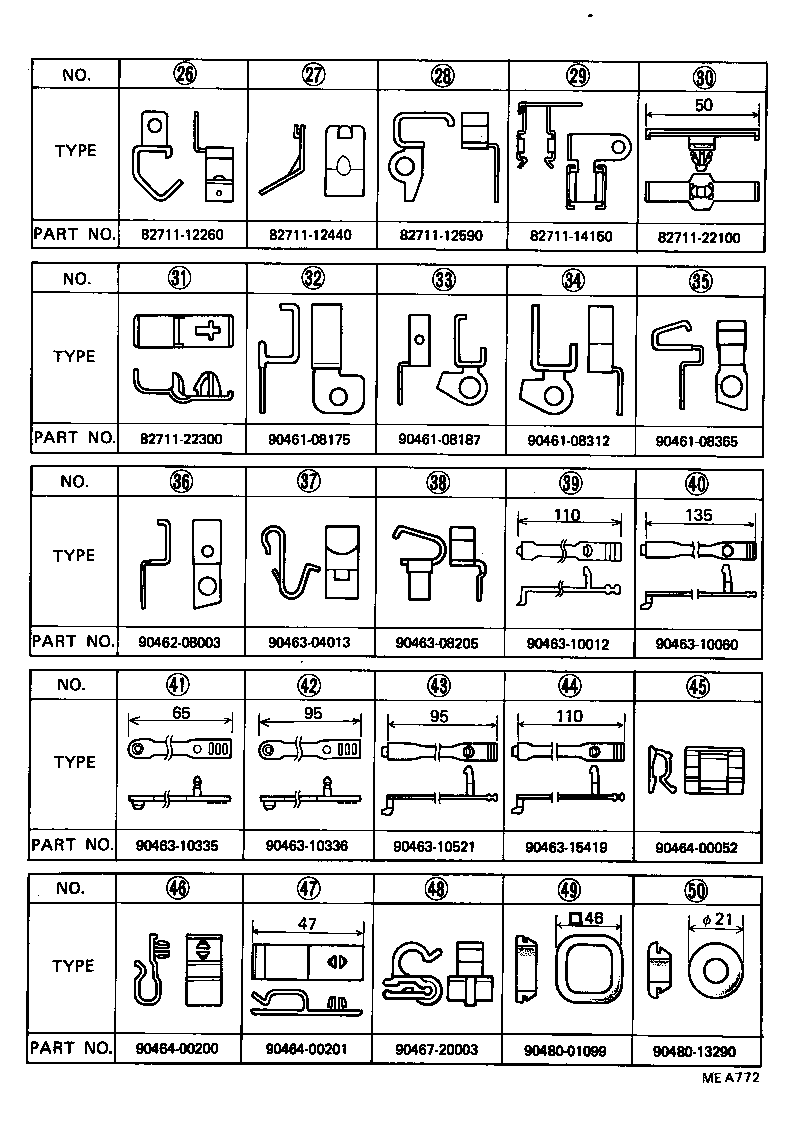

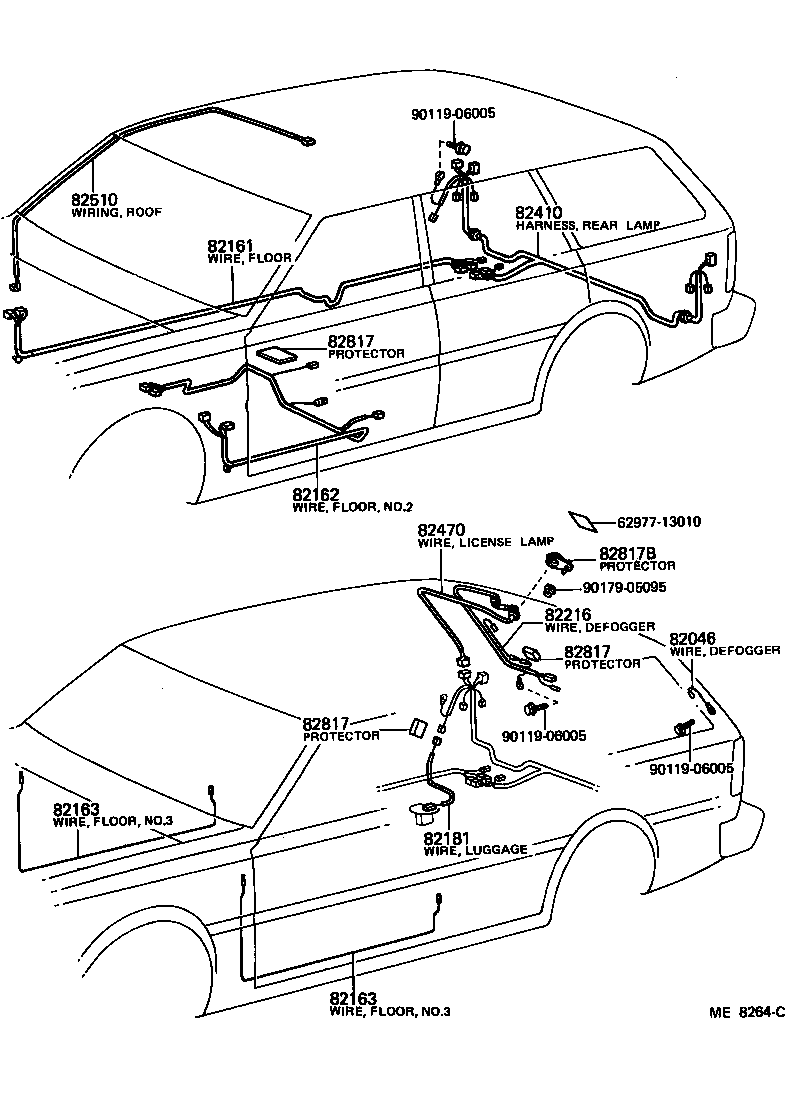

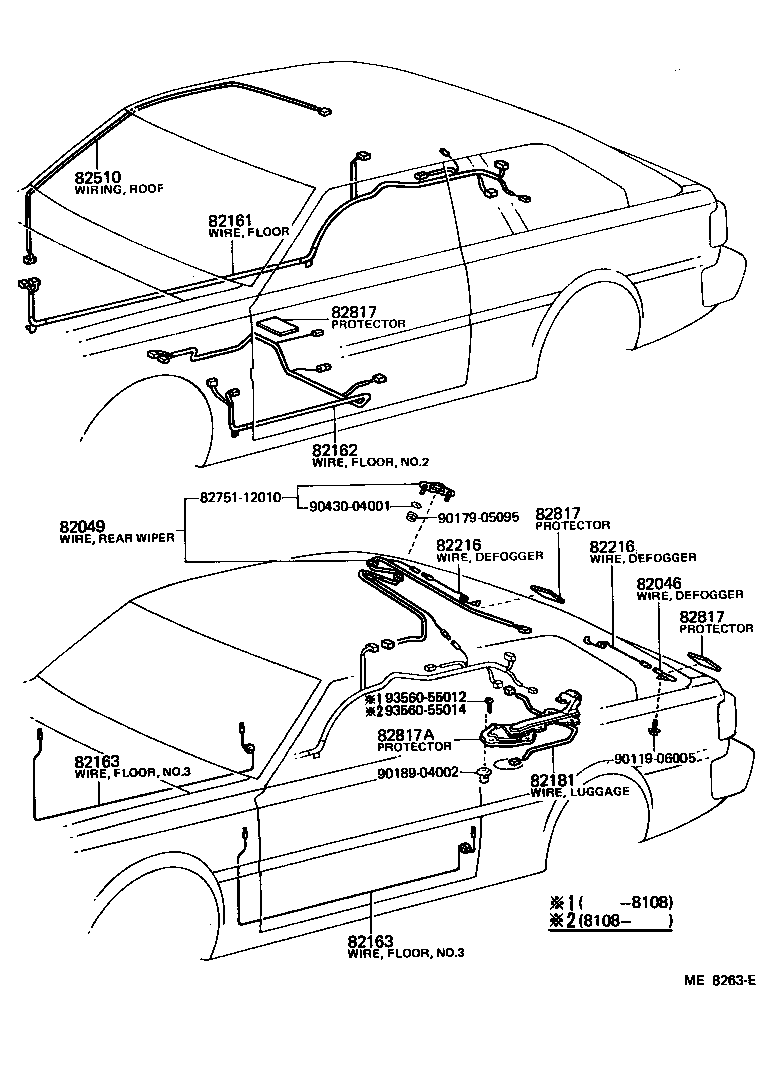

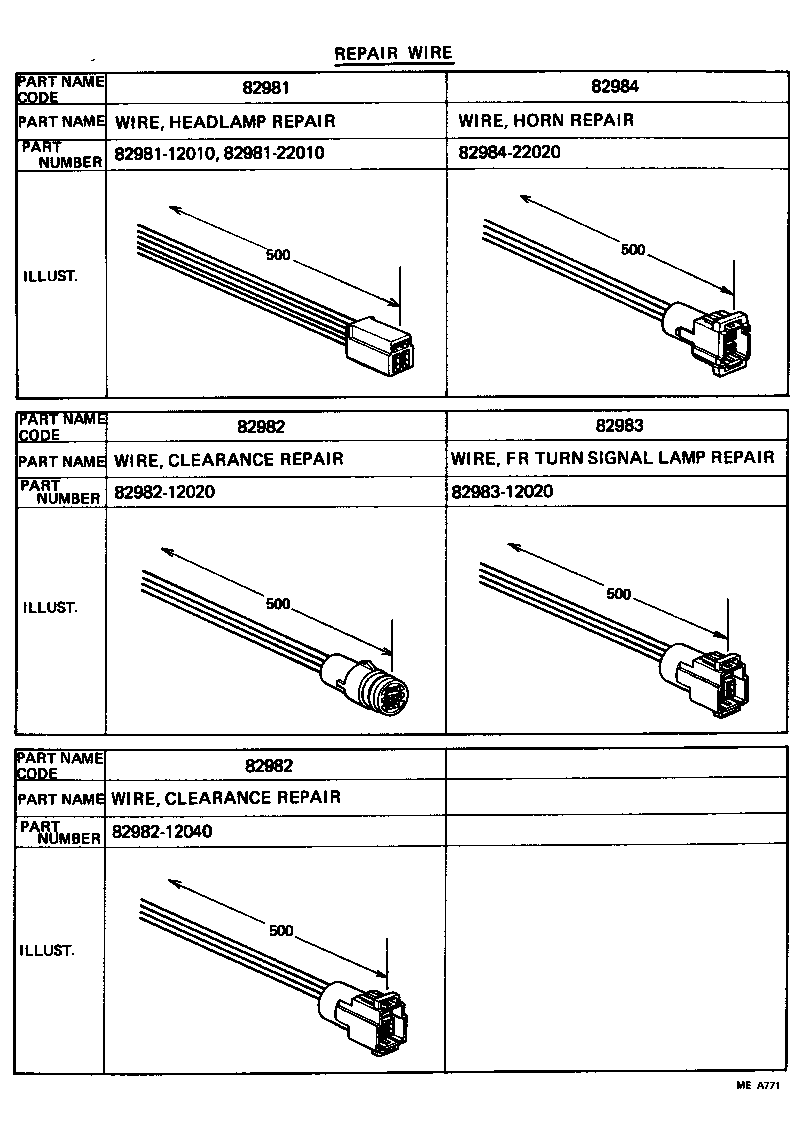

Figure ME8260G ME8260G 1979-08 → — Figure ME8261E ME8261E 1979-08 → — Figure ME8262D ME8262D 1979-08 → — Figure ME8263E ME8263E 1979-08 → — Figure MEA236C MEA236C 1981-08 → — Figure ME8264C ME8264C 1979-08 → — Figure MEA771 MEA771 1979-08 → — Figure ME7911B ME7911B 1979-08 → — Figure MEA772 MEA772 1979-08 → — Figure MEA773B MEA773B 1981-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046 Wire Sub-assy, Rear Window Defogger Earth
82049 Wiring Sub-assy, Rear Wiper
82111 Wire, Engine Room Main
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82131 Wire, Cowl
82134 Wire, Cowl, NO.4
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82181 Wire, Luggage Room, NO.1
82210C Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82345 Diode
82410 Harness Assy, Wiring TO Rear Lamp
82470 Wire Assy, License Lamp Feed
82510 Wiring Assy, Roof
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
