Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 3 illustrations

Illustrations

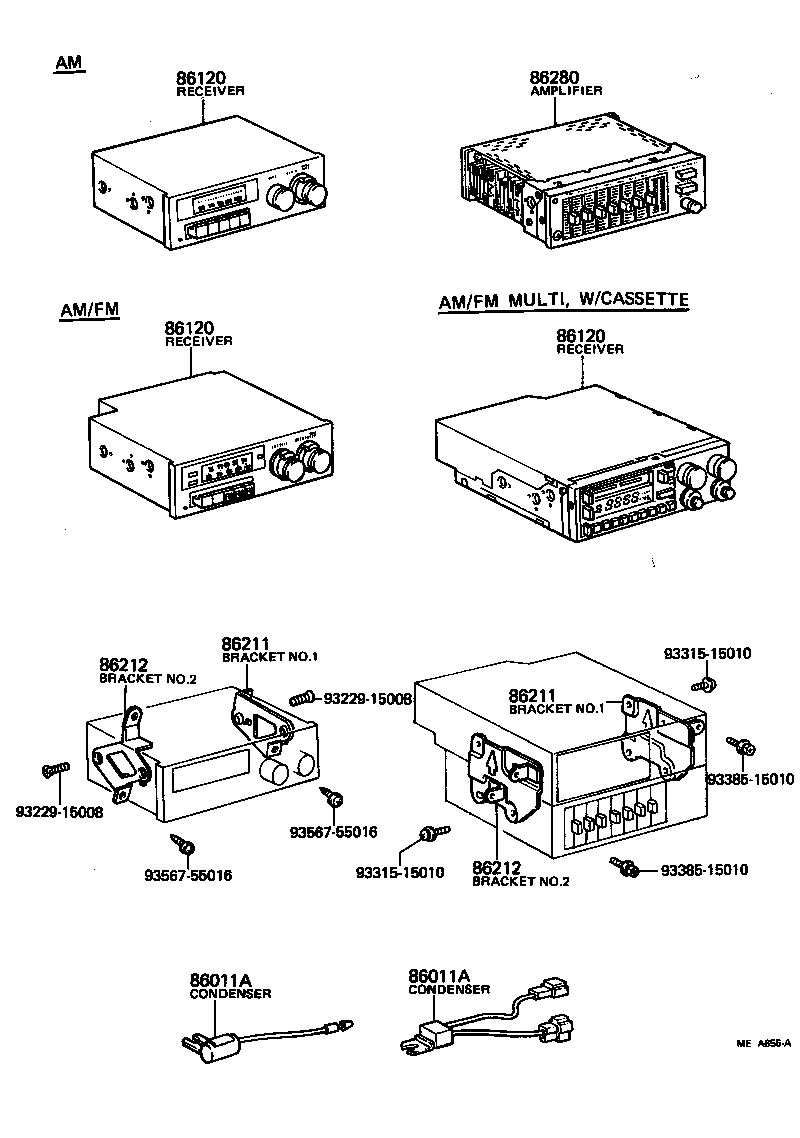

Figure ME8208D ME8208D 1979-08 → 1981-08 Figure MEA655A MEA655A 1981-08 → — Figure MEB170 MEB170 1981-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120D Knob, Radio Receiver Tone
86120E Knob, Radio Receiver Balance
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
