Toyota Corolla
1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States
Discontinued model
Data version 1984-01

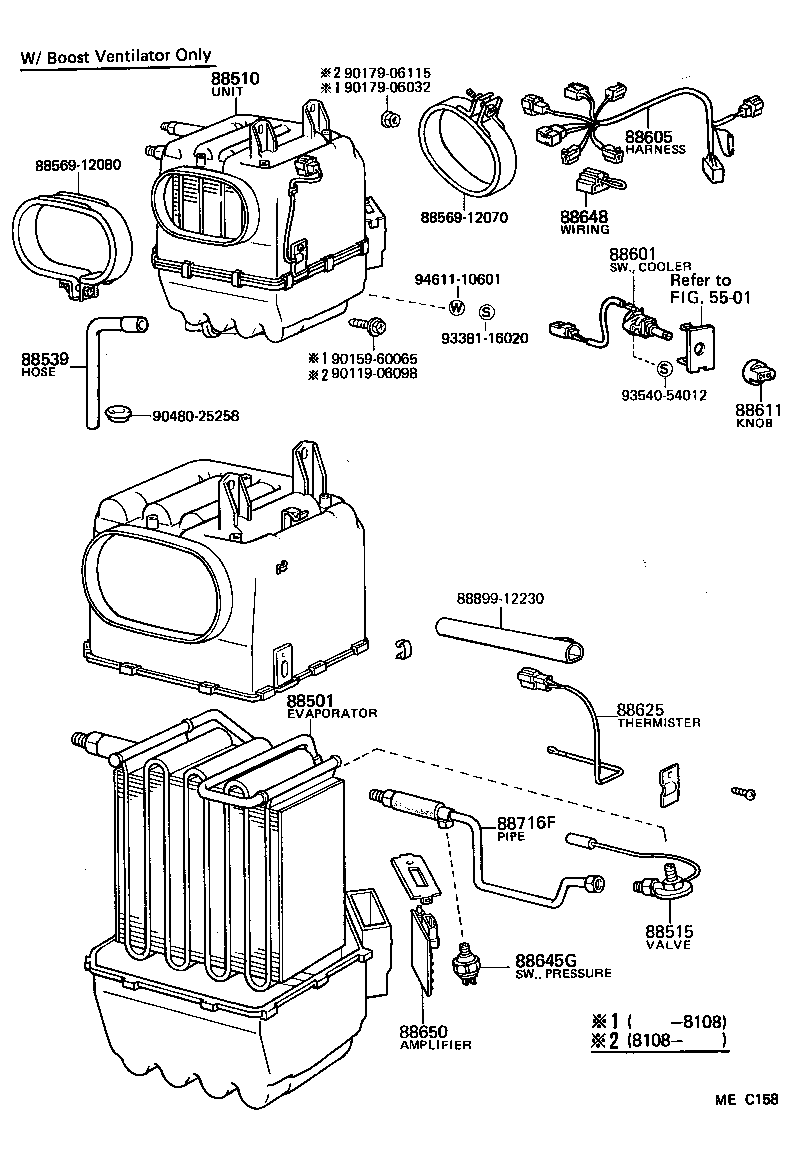

Heating & Air Conditioning - Cooler Unit
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88601 | Switch Sub-assy, Cooler Control |
| 88601K | Bulb(FOR COOLER SWITCH) |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88611 | Knob, Cooler Control Switch |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630A | Relay Assy, Cooler |
| 88630C | Bracket, Cooler Relay |
| 88645G | Switch, Pressure |
| 88648 | Wiring, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
