Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

5 part groups · 3 illustrations

Illustrations

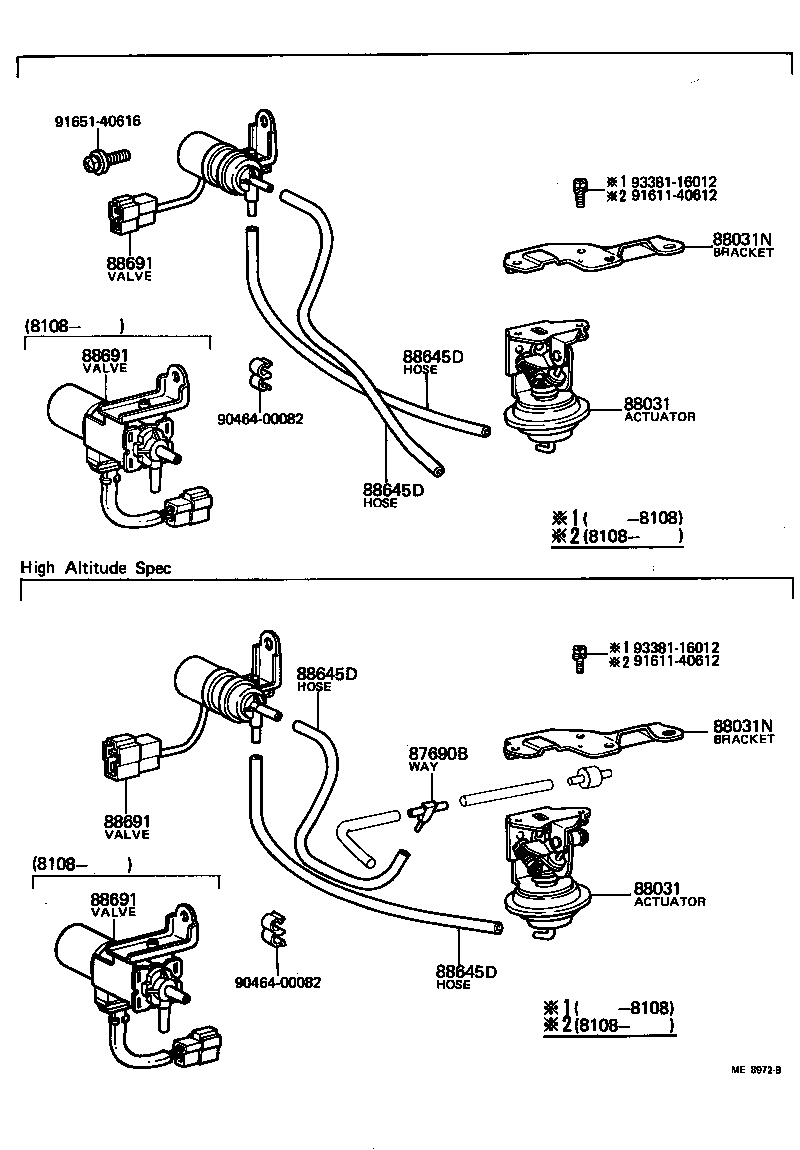

Figure ME8275A ME8275A 1979-08 → 1980-08 Figure ME8972B ME8972B 1980-08 → 1982-08 Figure MEB994 MEB994 1982-08 → —

Part groups

PNCDescription
87690B Way, 3
88031 Actuator Set, Idle-up
88031N Bracket, Idle-up Actuator
88645D Hose (FOR IDLE UP DEVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
