Toyota MR2

1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · United States

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

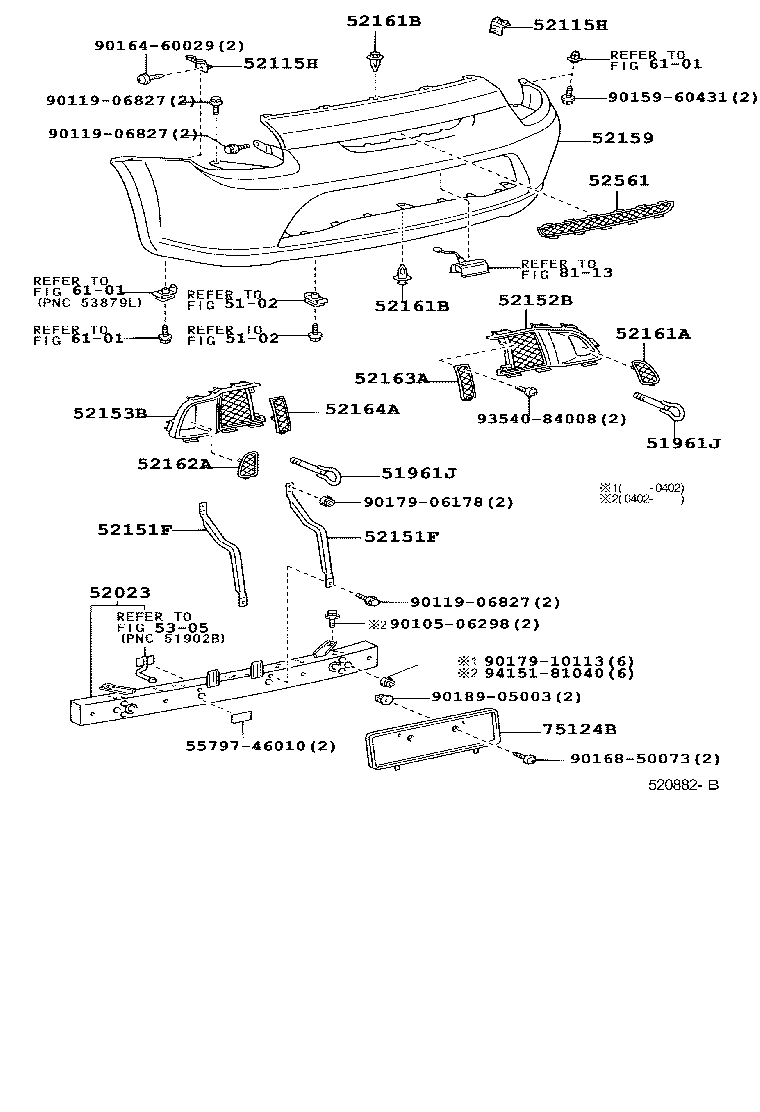

Figure 520583C 520583C 1999-12 → 2002-08 Figure 520882B 520882B 2002-08 → 2005-09

Part groups

PNCDescription
51961J Hook, Rear
52023 Reinforcement Sub-assy, Rear Bumper
52115H Support, Rear Bumper Side
52151F Stay, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52159 Cover, Rear Bumper
52161A Piece, Rear Bumper, RH
52161B Piece, Rear Bumper
52162A Piece, Rear Bumper, LH
52163A Plate, Rear Bumper, RH
52164A Plate, Rear Bumper, LH
52561 Retainer, Rear Bumper, Upper Center
75124B Bracket, Rear License Plate Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
