Toyota MR2
1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · United States
Discontinued model
Data version 2006-03

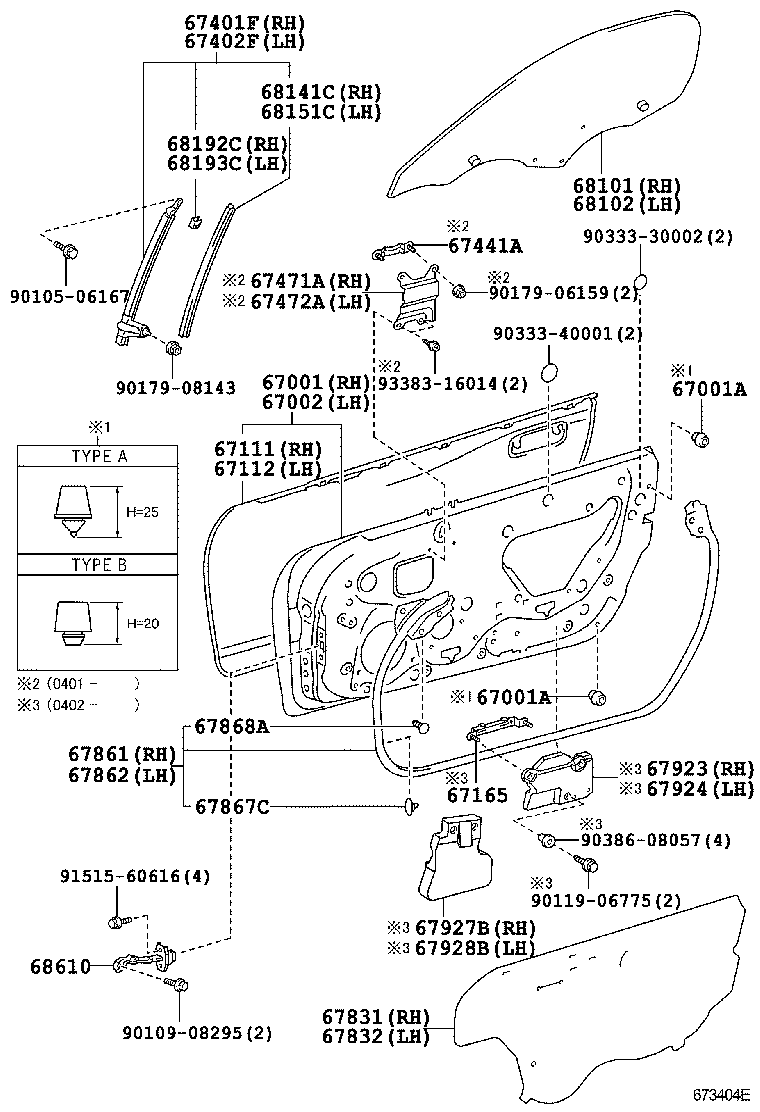

Front Door Panel & Glass
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67165 | Extension,Front Door Inside Panel Reinforcement, Front |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67441A | Plate, Front Door Front Guide, Upper |
| 67471A | Bracket, Front Door Window, Front Upper RH |
| 67472A | Bracket, Front Door Window, Front Upper LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67609B | Grille Sub-assy, Front Door Speaker |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868A | Clip, Door Glass Weatherstrip(FOR FRONT DOOR) |
| 67923 | Cushion, Front Door Stiffener, NO.1 |
| 67924 | Cushion, Front Door Stiffener, NO.2 |
| 67927B | Cushion, Separation Door Stiffener, NO.1 |
| 67928B | Cushion, Separation Door Stiffener, NO.2 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68192C | Seal, Front Door Belt, Front RH |
| 68193C | Seal, Front Door Belt, Front LH |
| 68610 | Check Assy, Front Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
