Toyota MR2

1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · United States

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

14 part groups · 10 illustrations

Illustrations

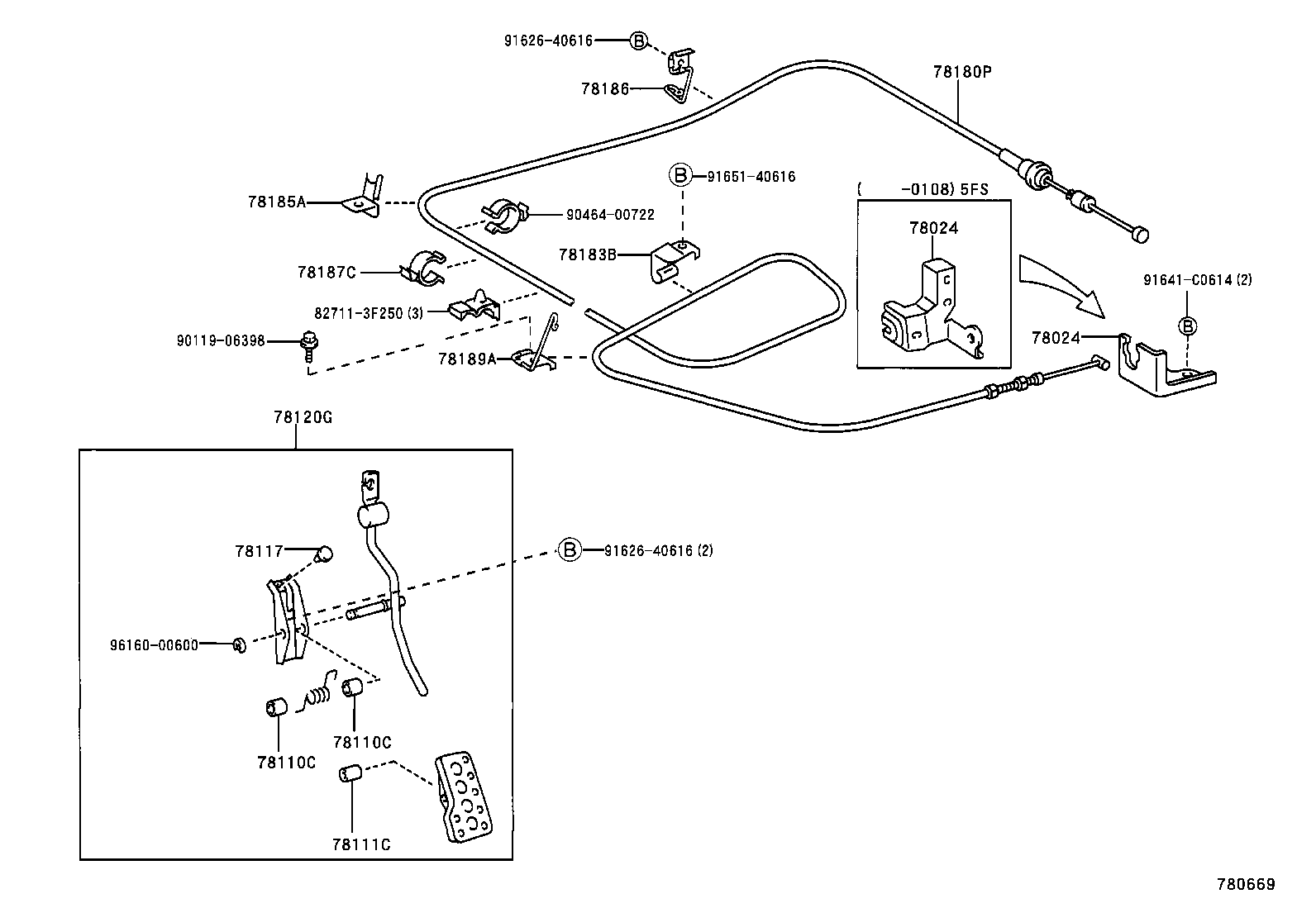

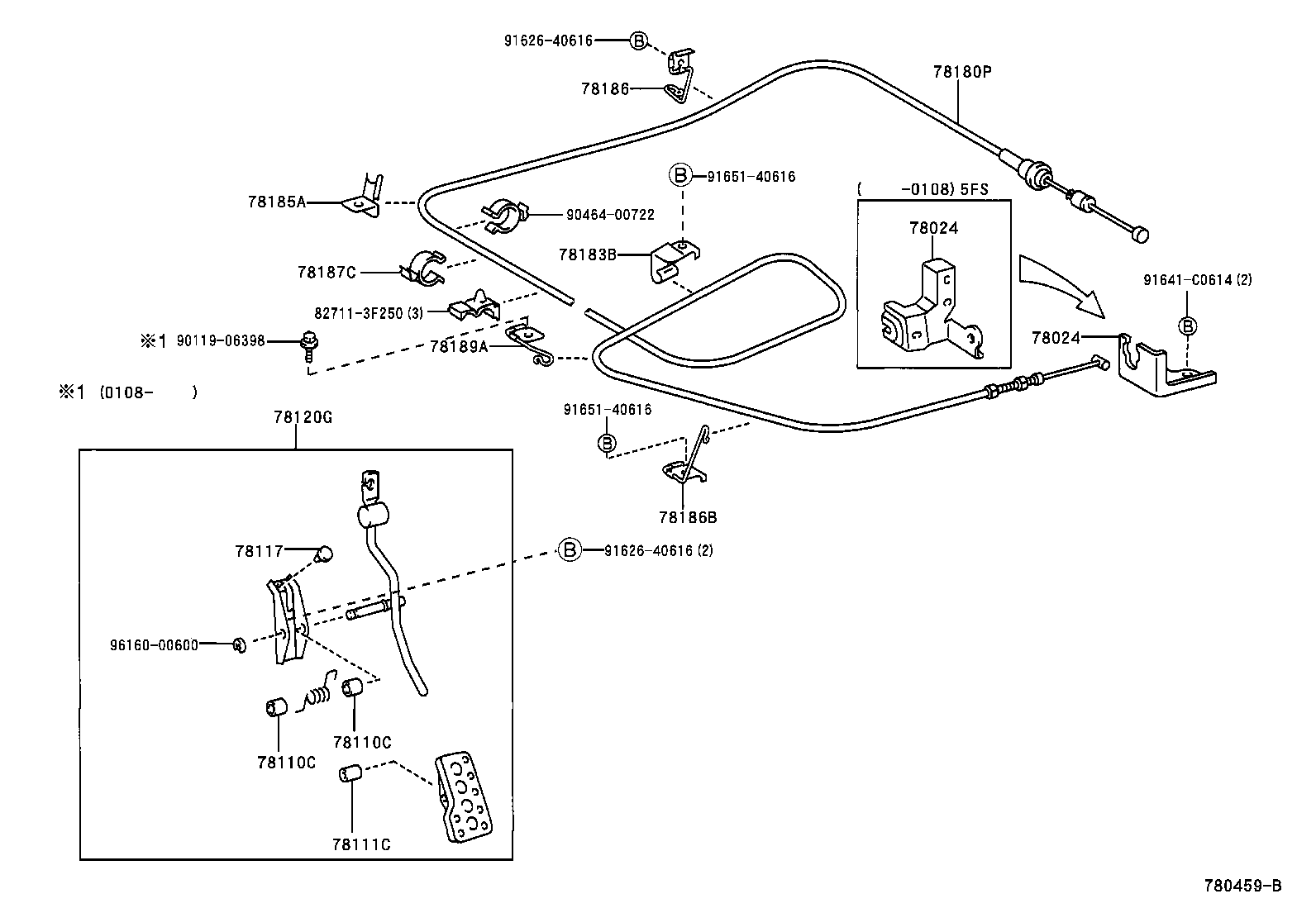

Figure 780458B 780458B 1999-12 → 2001-08 Figure 780458B 780458B 2001-08 → 2002-08 Figure 780458B 780458B 2002-08 → — Figure 780668 780668 2001-08 → 2002-08 Figure 780668 780668 2002-08 → — Figure 780459B 780459B 1999-12 → 2001-08 Figure 780459B 780459B 2001-08 → 2002-08 Figure 780459B 780459B 2002-08 → — Figure 780669 780669 2001-08 → 2002-08 Figure 780669 780669 2002-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78111C Pin (FOR ACCELERATOR PEDAL)
78117 Cushion (FOR ACCELERATOR ROD)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
78186B Support, Accelerator Control Cable NO.2
78187C Clamp, Accelerator Control Cable, NO.4
78188E Clamp, Accelerator Control Cable, NO.5
78189A Support, Accelerator Control Cable, NO.2
78193A Support, Accelerator Control Cable, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
