Toyota MR2

1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · United States

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

15 part groups · 2 illustrations

Illustrations

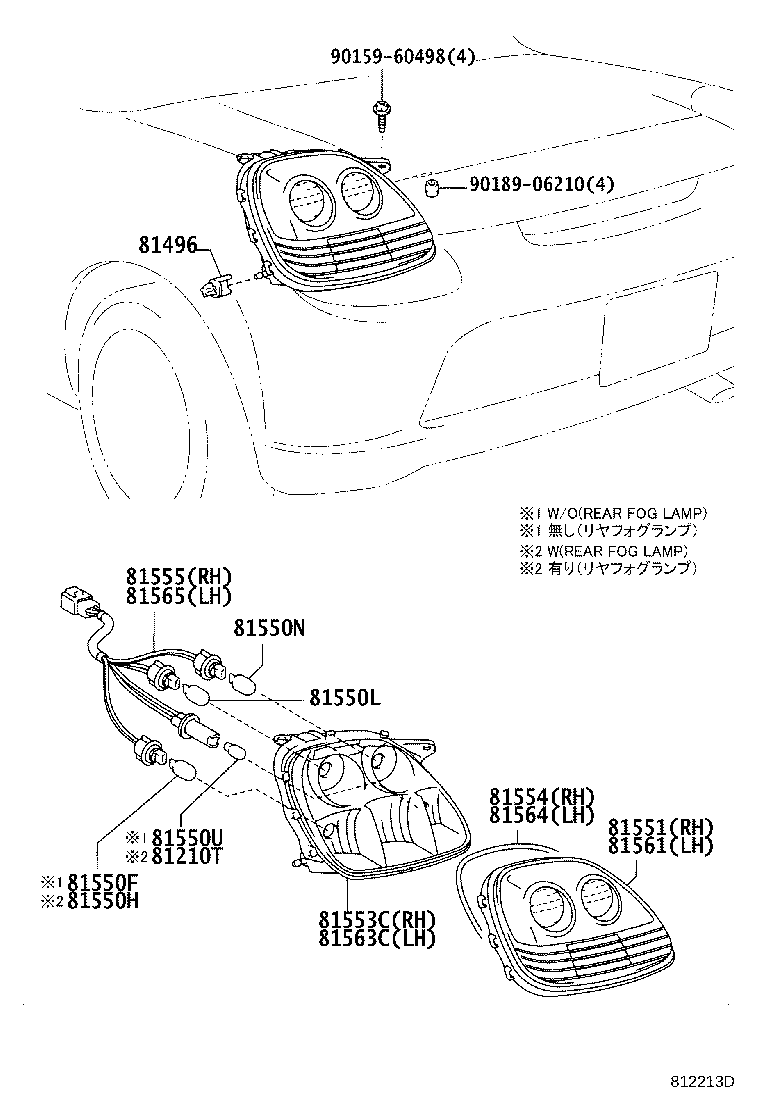

Figure 811306D 811306D 1999-12 → 2002-08 Figure 812213D 812213D 2002-08 → —

Part groups

PNCDescription
81210T Bulb, Rear Fog Lamp
81496 Guide, Rear Combination Lamp
81550F Bulb, Taillamp
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550U Bulb, Stop Lamp
81551 Lens, Rear Combination Lamp, RH
81553C Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81563C Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
